Putzmeiste DN150/DN125 Four or Two Plies Steel Wires Concrete Pump Hose

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

TS004

Contact Supplier Request Quote Chat Now

Guangzhou Tengshun Concrete Pumping Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name TS

Model Number TS004

Product Description

Concrete Pump Rubber Hose

There are two kinds of rubber hoses, steel hoses and fabric hoses, available in size 2" to 5", installed in concrete pumps and shotcrete pumps respectively.

Fabric hose size: 2"-5" Working pressure: 55bar
Wire braid hose size: 2"-5" Working pressure: 85bar

Steel hose

Spec.	Inner diameter (mm)	Wall thickness tolerance (mm)	Outer diameter (mm)	Working pressure (bar)	Bursting pressure(bar)	Bend radius (mm)	Weight(kg/m)
2"	50	9±0.75	68±1.5	85	240	200	2.6
2.5"	64	10±0.75	85±1.5	85	240	250	4.3
3"	76.2	12.9±1	102±1.5	85	240	270	6.1
3.5"	89	13.5±1	116±1.5	85	240	290	8
4"	101.6	14.2±1	130±1.75	85	240	300	9
4.5"	115	14±1	143±2	85	240	320	10.2
5"	127	16±1	158±2	85	240	360	12.5

Fabric hose

Spec.	Inner diameter (mm)	Wall thickness tolerance (mm)	Outer diameter (mm)	Working pressure (bar)	Bursting pressure(bar)	Bend radius (mm)	Weight(kg/m)
2"	51±0.7	11.5±0.7	74±1	55	220	200	2.8±0.2
2.5"	63.5±0.8	12±0.7	88±1	55	220	250	3.7±0.3
3"	76±1	14±1	104±1.2	55	220	270	4.9±0.4
3.5"	89±1	15±1	119±1.2	55	220	290	5.8±0.4
4"	102±1	16	135±1.2	55	220	300	7.4±0.4
4.5"	114	16±1	148±1.5	55	220	320	8.5±0.5
5"	127±1	16±1	159±1.5	55	220	360	9±0.5

Fabric reinforce hose and wire braid hose

Our hose is the best hose made.
Fabric hose Working pressure: 55bar, Bursting pressure: 220bar
Wire braid hose Working pressure: 85bar, Bursting pressure: 240bar

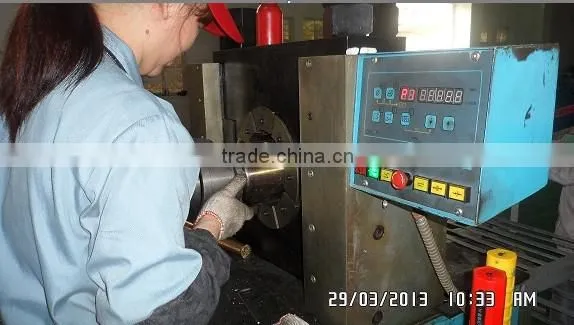

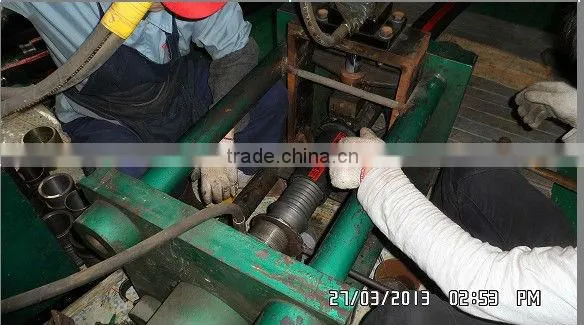

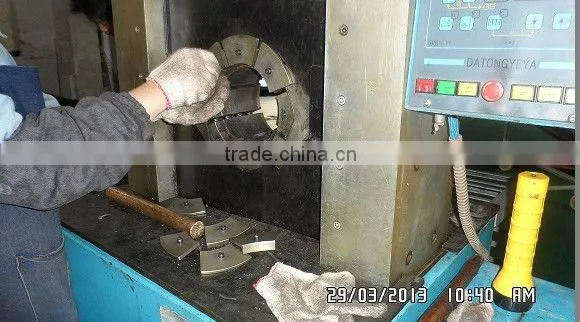

Available with Metric or Heavy Duty ends or ends for concrete pump or shotcrete pump and available with one or two ends. Our hoses ends are heat treated and externally swaged for long life.
We may also produce according to your requirements, please feel free to contact us.
