Help CenterAC Contactor
US$ 2 - 55
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SUIXIN
Electricity Type:
AC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Terminal Block With UL, CE, RoHSUS$ 0.15 - 0.25MOQ: 100 Pieces -
High Quality Screw Terminal Block With UL, CE, RoHSUS$ 0.15 - 0.25MOQ: 100 Pieces
-
Single Phase Electrical ContactorUS$ 2 - 55MOQ: 50 Pieces
-
Electric ContactorUS$ 2 - 55MOQ: 50 Pieces
-
Single/three Phase Electrical ContactorUS$ 2 - 55MOQ: 50 Pieces
Place of Origin
Shanghai, China
Brand Name
SUIXIN
Electricity Type
AC
Number of Pole
3
Phase
3
Main Circuit Rating Voltage
380v
contactors series
| Product Name | NDC1(Z)-09~95 Series AC Contactor |
| Standards and Certificates | IEC 60947-4, IEC 60947-5; TüV, CE, CCC. |
| Rated Voltage | AC 380/400V, AC 660V/690V |
| Rated Current | 9A~95A (AC-3) |
| Breaking Capacity | / |
| Isolation Function | / |
| Number of Poles | 3, 4 |
| Tripping Characteristics | / |
| Mechanical Endurance | / |
| Wiring Capacity | / |

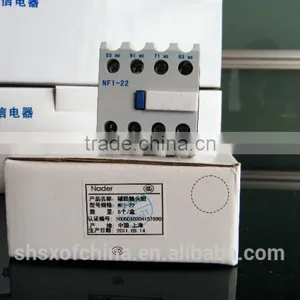

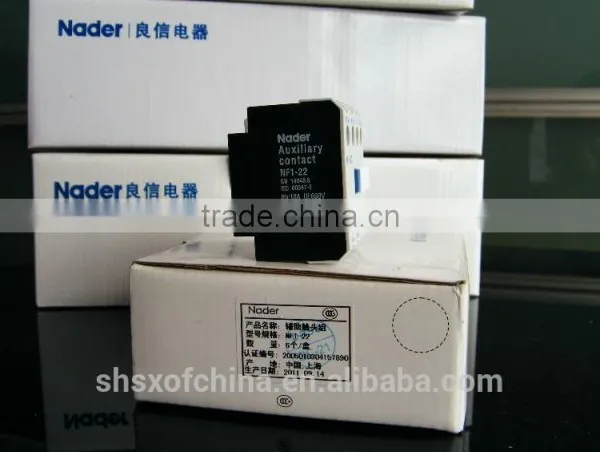

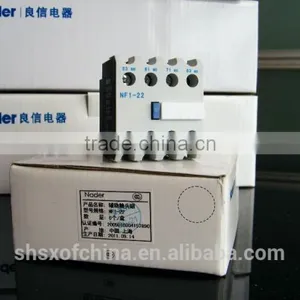

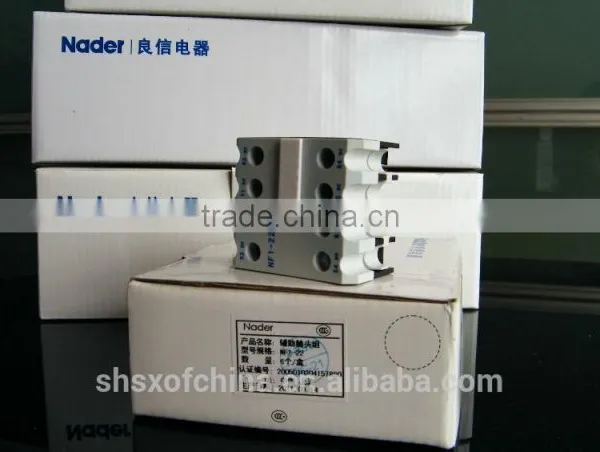

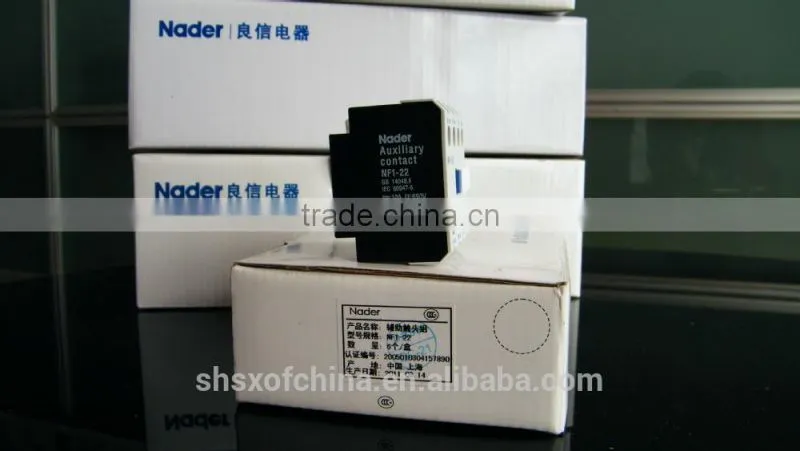

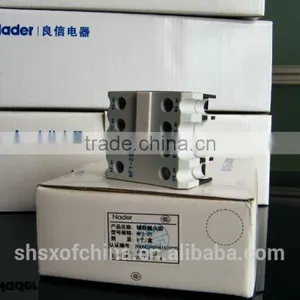

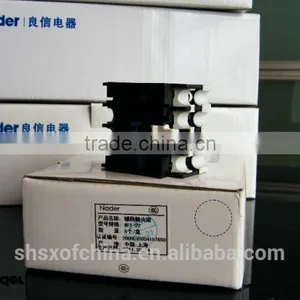

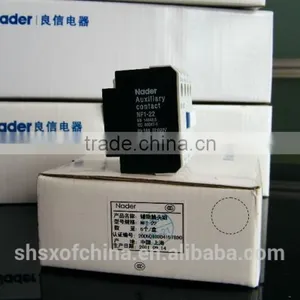

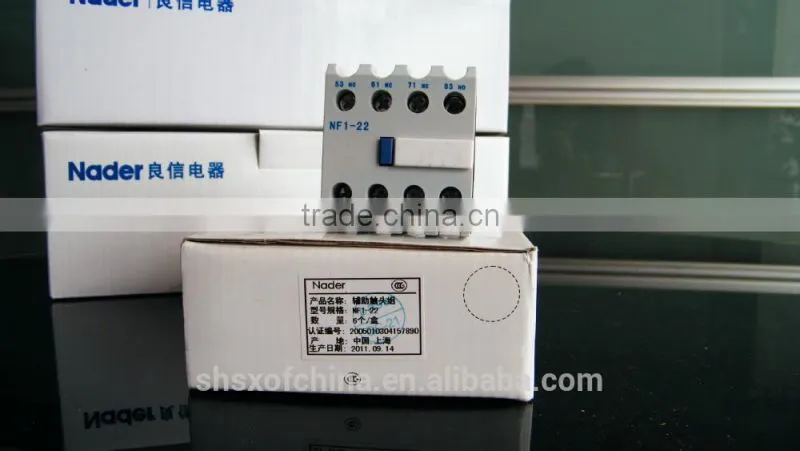

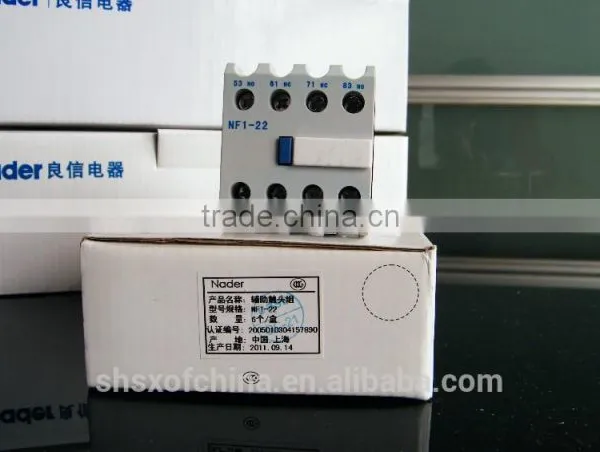

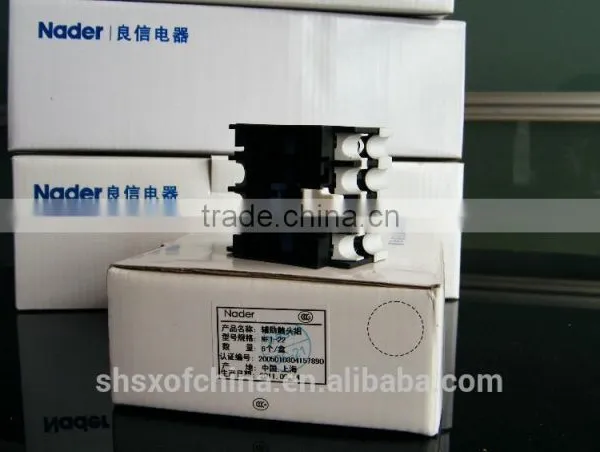

| Electric Accessories | NF1 Series Auxiliary Contact Group, NS1 Series Pneumatic Timer, NG1 Series Coil Suppressor Module |
|
Specifications
· Standards: IEC 60947-4, IEC 60947-5
· Certificates:TüV, CE, CCC
· Rated operational voltage: AC 380/400V, AC 660V/690V
· Rated current: 9A~95A (AC-3)
· Conventional thermal current: 25A~125A
· Rated control circuit voltage: AC (50Hz, 50Hz/60Hz) 24V, 36V, 48V, 110V, 220V, 380V, 400V
DC 24V, 48V, 110V, 220V
· Number of poles: 3, 4
· Mechanical endurance: 1000×104 times (for NDC1(Z)-09~25)
800×104 times (for NDC1(Z)-32~65)
600×104 times (for NDC1(Z)-80~95)
· Wiring capacity: Please refer to catalog
Features
· Direct operating mechanism, double breaking points
· Compatible with accessories on every side except installing side
· Capable of adding mechanical interlocks on left or right side to form reversing contactor
· NF1 series auxiliary contact group and NS1 series pneumatic timer can be added on the front side and NF2 series auxiliary contact group can be added on left or right side
· NG1 series coil suppressor module can be added on coil terminal
|
