Log splitter1. Hands free return
2. Auto neutral
3. 4-Way splitting wedge
4.Recom.Min.Hyd.Flow: 37 litr

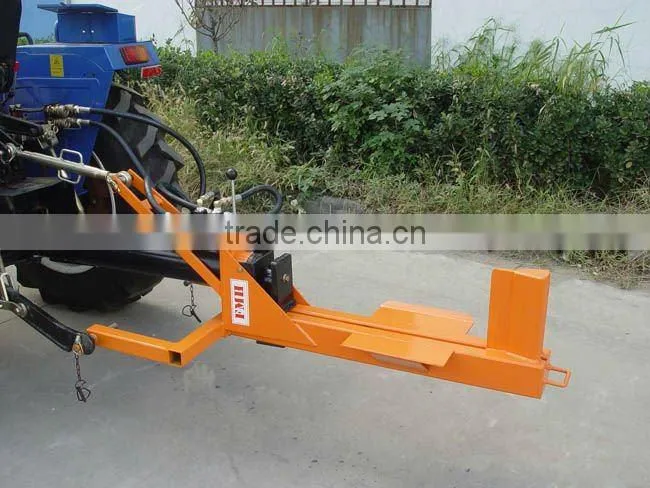

Log splitter
Making the most of your equipment, the WX 300 Series is a powerful 3-Point hitch log splitter that’s ready to work. The WX 300 gives you the splitting force and log length you need on the farm. With up to 48” splitting length the WX 300 Series is ideal for outdoor furnace applications.
Tractor Log Splitter features:
HANDS FREE RETURN
- AUTO NEUTRAL
The splitting wedge automatically returns to the start position, ready for another piece. This allows you to clear the split pieces and prepare the next chunk for splitting.
THREE POINT HITCH
Hook WX300 series on to the back of any tractor with the 3-point hitch mounting pins and take your splitter where you need it quickly.
Options:
CLOSED CENTRE
HYDRAULIC VALVE
Optional valve available for tractors with a closed centre hydraulic system. Check your tractor owner's manual for details
4-WAY SPLITTING WEDGE
Boost your productivity and make quick work out of chunks by splitting four pieces at once
Log Splitter Specifications | ||
Model |
WX310 |
WX350 |
Dimensions (L * W * H ) |
78 x 28 x 24 Inch |
78 x 28 x 18 Inch |
Cylinder Diameter |
4'' |
4'' |
Cylinder Stroke |
24'' |
24'' |
Splitting Force |
20-31ton |
20-31ton |
Splitter Orientation |
Horizontal |
Vertical |
Avg.Stroke Cycle Time |
Approx.7 secs |
Approx.7 secs |
Avg.Stroke Cycle Time |
Approx.14 secs |
Approx.14 secs |
Max Split Wood Length |
24 Inch |
24 Inch |
Weight |
100kg |
108kg |
Recom.Min.Hyd.Flow |
37 litres |
49 litres |
