Specifications
HD SDI 180 Dgree Fisheye CCTV Cameras cctv camera shell With Infrared 1080P
1/3" CMOS,1.8mm Lens
HD SDI 180 Dgree Fisheye CCTV Cameras cctv camera shell With Infrared 1080P
This camera adopts 2.0mega pixel CMOS sensor and encoding DSP to produce 1080P HD-SDI more clear and greater image . it has the functions as digital WDR,3D DNR,digital zoom . the function of shutter speed adjustable is suitable for fast moving object monitoring .
Defective compensation,privacy mask,motion detect and other complete function.
waterproof , vandal-proof,box model series, and IR LED used is suitable for day and night HD monitoring .
1. Adopted 2.0MP low light CMOS sensor
2.FPGA algorithm , independent ISP
3.1080P(1920x1080)@30fps
4.TV out(BNC) with PAL/NTSC optional
5. 1.8mm 3.0Megapixels lens
6.megapixel HD CCTV (BNC) output
7.high resolution digital zoom(x64)
8.PIP (full image/zoom image)
9. flicker suppression
10.3D DNR,digital WDR,full OSD menu
11. Low power consumption , low illumination , excellent color reductibility
Specifications

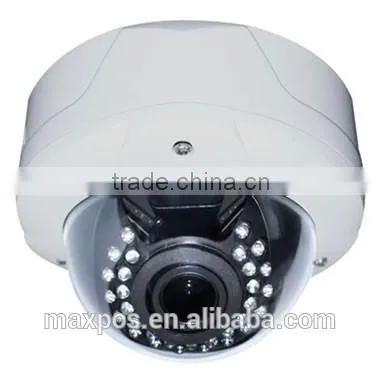

HD SDI 180 Dgree Fisheye CCTV Cameras Vandalproof Dome With Infrared 1080P HD SDI
Product Model |
BN-SDI180DV/IR |
Image sensor |
1/3”2.0MP CMOS sensor |
HD-SDI output |
1920x1080(1080P),1280x720(720P) HD-SDI signal |
Video output |
1.0Vp-p/75Ω composite video signal |
Illumination |
Color:1.0Lux,B/W:0.5Lux |
Sync. Mode |
Internal |
IR LEDS |
30pcs IR LEDs |
IR distance |
30m |
Lens |
1.8mm lens(180 degree) |
S/N Ratio |
>50dB Max.(AGC OFF) |
White balance |
ATW/AWB/MANUAL |
Shutter speed |
Auto/manual(1.50(60)~1/60,000sec) |
3D-DNR |
Off/on |
Privacy masking/Motion detection |
Off/on |
Sense up |
Off/on(X4) |
WDR/BLC |
Off/Color/BW |
Control Method |
Local |
D/N Mode |
Auto/Color/BW |
Power Supply |
DC12±10% |
Power consumption |
Max.5W(IR LEDs on) |
Operation Temperature and Humidity |
-10°C~50°C,20%~90%RH |
Dimensions |
Φ120*114mm |
Weight |
800g |
180 Dgree Fisheye HD SDI CCTV Cameras Vandalproof Dome With Infrared 1080P HD SDI Megapixel CCTV Camera
