Frequency Conversion Rotary Screw Air Compressor
US$ 3,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw
Configuration:
Stationary
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Stationary Frequency Screw Air CompressorUS$ 3,000 - 100,000MOQ: 1 Set -
Stationary Variable Frequency Rotary Screw Air CompressorUS$ 3,000 - 100,000MOQ: 1 Set
-
Electric Motor Driven Frequency Conversion Screw Air CompressorUS$ 3,000 - 100,000MOQ: 1 Set
-
60hp Frequency Conversion Rotary Screw Air CompressorUS$ 3,000 - 100,000MOQ: 1 Set
-
45KW 8-13bar Variable Frequency Screw Air CompressorUS$ 3,000 - 100,000MOQ: 1 Set
Condition
New
Type
Screw
Configuration
Stationary
Power Source
AC Power
Lubrication Style
Lubricated
Mute
Other, Variable Frequency
Place of Origin
Shanghai, China
Brand Name
DREAM
Model Number
DM-132AV/WV
Voltage
380V/50Hz
Dimension(L*W*H)
2800*1650*1850mm
Weight
3230Kg
Certification
CE,GC,ISO9001
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Highlight:Variable Frequency Air Compressor!
FAQ
Warm Tip:
Q1:How about your air delivery capacity(L/Min)?
Q2:What is your working pressure(Bar)?
Q3:What is your voltage(V/Hz)?

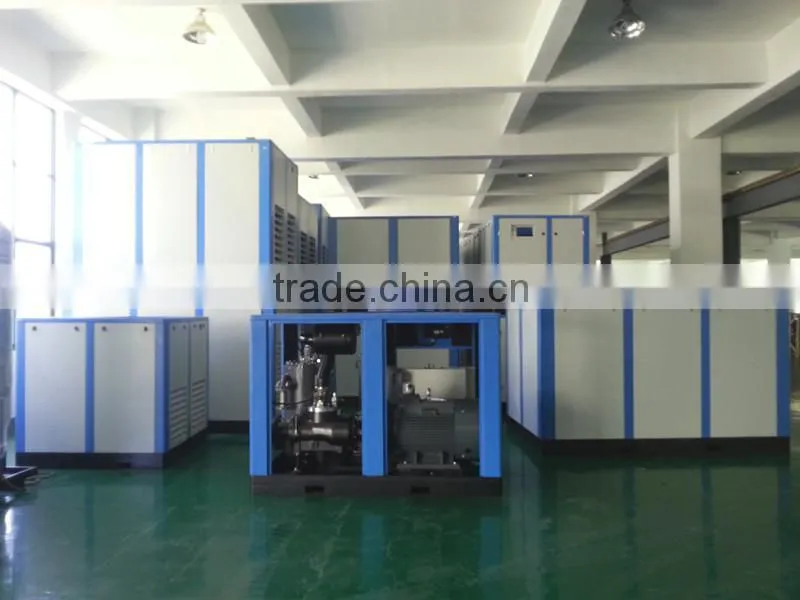

Product Showing
Frequency Conversion Rotary Screw Air Compressor
Product Description
Product Features
1.By Using DMV Series Variable Frequency Air Compressor produced by DREAM (Shanghai) Compressor Co.,Ltd, you will never worry about its complicated electrical equipment installation and program, because before delivery, the whole machine has been well installed, and once connected with power source, it can operate at once.
2.Through the powerful intelligent controller, it can constantly test the air pressure change and accurately change rotation speeds to ensure the air delivery keep consistent with the user demand. The reaction speed of controller is measured in milliseconds, meanwhile, the correction of speed can be finished in 3ms, which can accurately control the output pressure area within the minimum.
Technical Specification
| Model | DM-55AV/WV | DM-75AV/WV | DM-90AV/WV |
DM-110AV/WV |
DM-132AV/WV |
DM-160AV/WV |
DM-185AV/WV | DM-220AV/WV | DM-250AV/WV | |
|
Air delivery/Pressure discharge (m3/min,Mpa) |
3.1-10.5/0.7 | 4.1-13.6/0.7 | 4.9-16.3/0.7 | 4.1-20.3/0.7 | 4.8-24/0.7 | 5.4-27/0.7 | 6.5-32.5/0.7 | 8-40/0.7 | 8.743.5/0.7 | |
| 2.9-9.8/0.8 | 4.0-13.3/0.8 | 4.5-15/0.8 | 3.8-19/0.8 | 4.6-23/0.8 | 5.3-26.5/0.8 | 6.2-31/0.8 | 7.3-36.8/0.8 | 8.4-42/0.8 | ||
| 2.6-8.7/1.0 | 3.5-11.6/1.0 | 4.3-14.6/1.0 | 3.4-17/1.0 | 4-20/1.0 | 4.5-22.5/1.0 | 5.6-28/1.0 | 6.4-32.2/1.0 | 7.6-38.1/1.0 | ||
| 2.3-7.5/1.3 | 2.9-9.8/1.3 | 3.7-12.3/1.3 | 2.9-14.6/1.3 | 3.6-18/1.3 | 4-20.1/1.3 | 5-25.1/1.3 | 5.7-28.5/1.3 | 6.9-34.6/1.3 | ||
|
Electromotor
|
Power (Kw) |
55 | 75 | 90 | 110 | 132 | 160 | 185 | 220 | 250 |
|
Horsepower (HP) |
75 | 100 | 125 | 150 | 180 | 220 | 250 | 300 | 340 | |
| Voltage(V/Hz) | 380/50 | |||||||||
| Noise(dB) | 74 ±2 | 75 ±2 | 75±2 | 75±2 | 75±2 | 75±2 | 78±2 | 78±2 | 78±2 | |
| Air outlet pipe diameter | G2 | G2 | G2 | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | |
| Unit weight(Kg) | 1740 | 1810 | 1920 | 3110 | 3230 | 3350 | 3570 | 4550 | 4700 | |
|
Dimensions (mm) |
L | 2100 | 2100 | 2100 | 2800 | 2800 | 2800 | 2800 | 2900 | 2900 |
| W | 1250 | 1250 | 1250 | 1650 | 1650 | 1650 | 1650 | 1860 | 1860 | |
| H | 1700 | 1700 | 1700 | 1850 | 1850 | 1850 | 1850 | 2000 | 2000 | |
Remark:1bar=0.1Mpa=14.5psi,1m3/min=35.3cfm
Company Information
Dream(Shanghai) Compressor Co., Ltd., founded in 2005, is a Sino-German high-tech enterprise in research, development, production and sales. Our company is located in Songjiang district, Shanghai, covering an area of ten thousand square meters with more than 300 employees. We have set up offices in the major provinces and cities. We are not only provide the high-quality air compressors from minimum 7.5Kw to maximum 355Kw, but also provides matching processing equipment of compressed air.We will wholeheartedly serve you.
