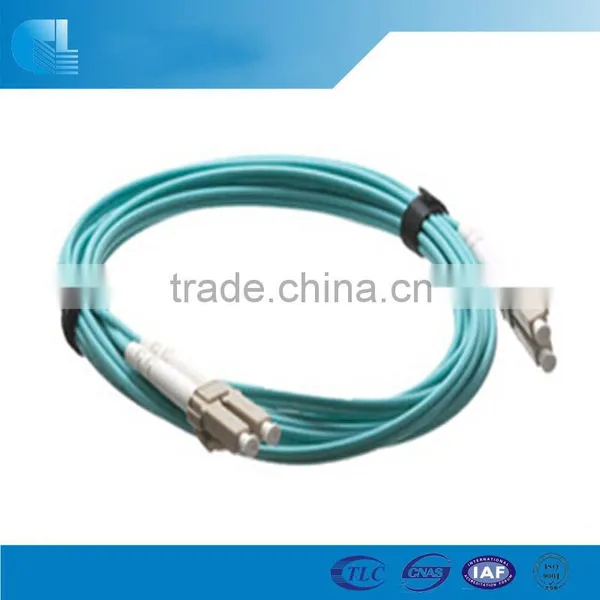

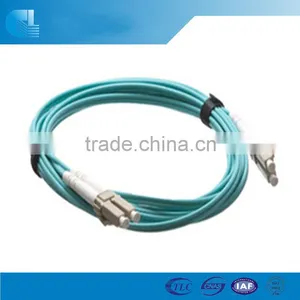

3m LC-LC OM3 MM duplex in green color fiber optic patch cord
1) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
2) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
3) Excently qualified standard PC, APC, UPC, polishing
4) Simplex and duplex connector available
5) High precision of mechanical dimensions
6) Good exchange ability and good durability;

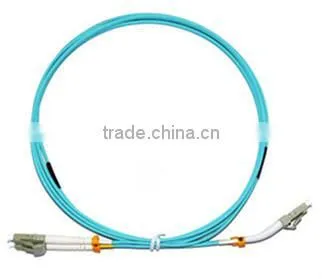

1. lc duplex and simplex om3 fiber optic
2. LC single mode patch cord

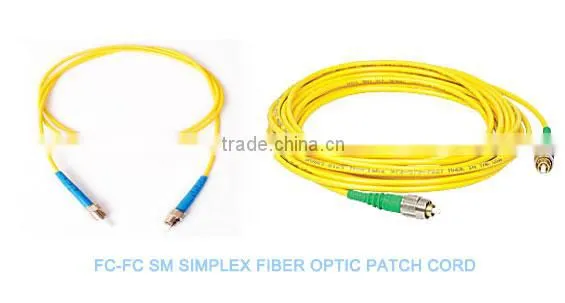

3. FC single mode simplex diameter 3.0mm 1.5meter and 5mtrs length fiber FC patch cord.

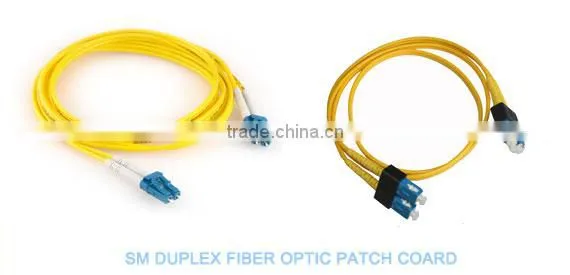

4. Single mode duplex sc and lc fiber SC patch cord .
Technical Data
| Optical Performance | Single Mode | Multi Mode | ||
| Insertion Loss | ≤0.20dB | ≤0.30dB | ||
| Return Loss | ≥45dB(PC) | ≥0.35dB | ||
| ≥50dB(UPC) | ||||
| ≥60dB(APC) | ||||
| Repeatability | ≤0.10dB | |||
| Durability | ≤0.2dB typical change,1000 matings | |||
| Operating Temperature | - 20 ~ +75°C | |||
| Storage Temperature | - 40 ~ +85°C | |||
You can choose Multimode or Singlemode 1M 2M 3M 5M 10M 20M 30M 50M

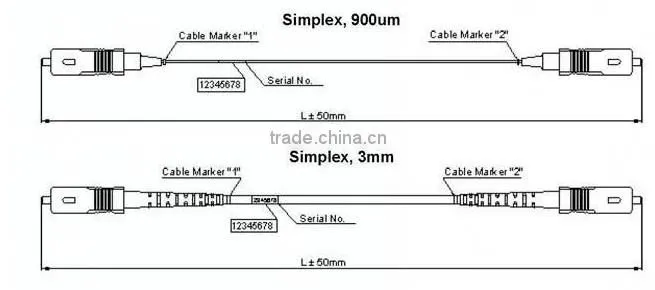

Demensional drawing

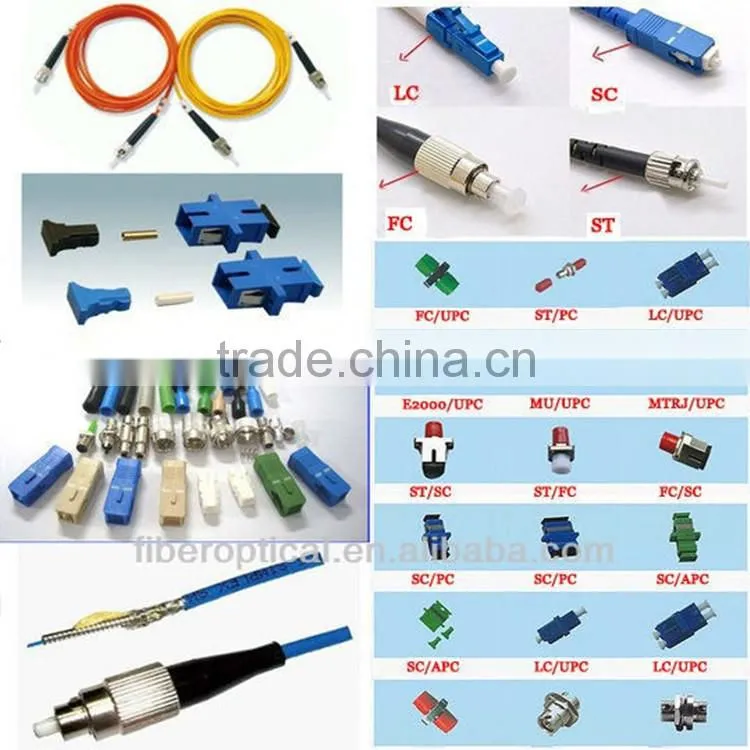

Other types of connectors u can choose are listed below.

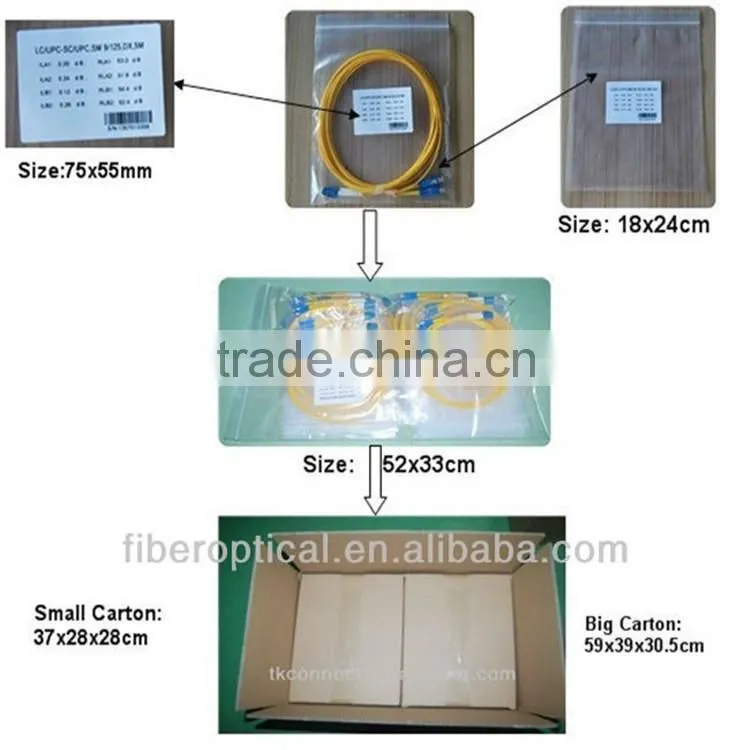

Standard Packaging:
ipcs/pp bag. then 100pcs into a carton box
Packaging Details are listed below.
Our Professional Factory 100% Test before delivery
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.
1. The Gate of Factory
2. Raw Material
3. Production Line
4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
|
|
