Specifications
distribution box1.Supplier of China Mobile and China Telecom
2.All with ISO9001
3.Manufacturing more than 10 years
China machinery price distribution box
distribution box overview:
1.Wall mount installation
2.With the fuction of splicing and distribution
3.According to the use it can be divided into:splicing type, adapter type and card splitter type
4.Can install 1*4,1*8,1*16,1*32,1*64 PLC splitter,FC,SC,LC adapter
5.Using double flip plate structure, the outer layer and back layer flip angle up to 120 degrees, so that the volume is reduced, and the operation is convenient.
6.Optical fiber curvature radius is larger than 37.5mm,it can avoid direct eye arc
7.Reliable cable fixing, stripping, grounding protection device is suitable for ribbon fiber,normal indoor fiber and FTTH drop cable
8.Offers a variety of accessories to prevent the fiber from mechanical damage
9.Providing water blocking lute, to ensure the sealing performace of box

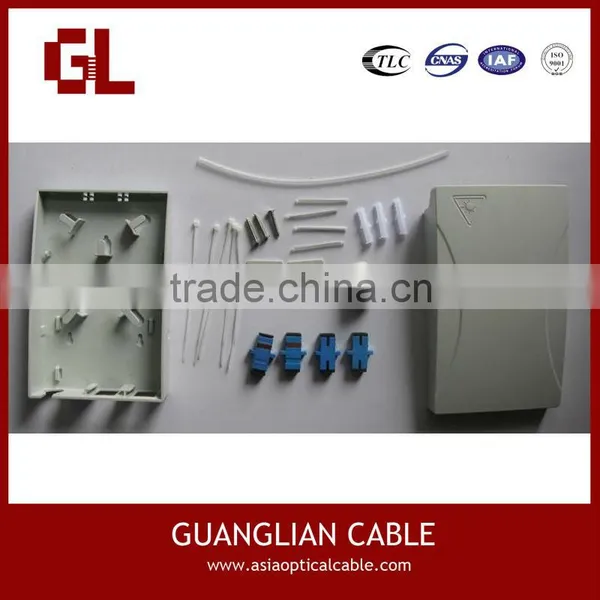

Fiber Optic Termination box
Features:
· Indoor or outdoor
· Available 1x4, 1x8, 1x16 splitter as well as 2x4, 2x8, 2x16 splitter
· Suitable for wall-mounting or pole mountingapplication.
· Max. up 16 pcs of FTTH drop cable or pigtails
· Suitable for wall-mounting or pole mounting application.
· 2 inlet ports and 16 outlet ports
Application:
· FTTH, FTTB, FTTC
· Telecommunication Network
· CATV
· Local Area Network
Termination box Parameters:
1,Working environment: -40°C ~ +85°C 70kPa ~ 106kPa
2,Protection level: IP65
3,Connector loss (including insertion , exchange and repeat loss): ≤0.5dB
4,Insertion loss: ≤0.2dB
5,Return loss: FC/PC≥ 40dB FC/UPC≥ 50dB FC/APC≥ 60dB
6,Durability: >1000times
7,Insulation resistance between high voltage protection and box> 2*104MΩ/500v(DC)
8,Dielectric strength between high voltage protection and box>3000V(DC)/1min no breakdown,no flashover
Notice:We can depend on customer's requirement to producing the different termination box model.
Fiber Optic termination box is one of our most competitive products. Any request, please kindly contact with me,I will do my best to satisfy your requirement. Hope I will take an opportunity to serve your esteemed company
Connie Cell:+0086 156 7482 1403 Skype:connieshen708
We are waiting for your calling for termination box price ! Thanks!
