Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Fiber Optic Distribution Box From China Manufacturing Ftth Fiber Optical Splice Closure

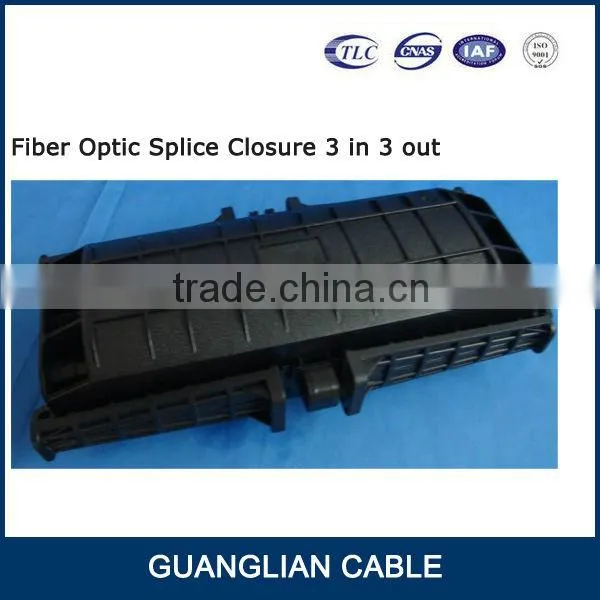

Fiber Optic Distribution Box From China Manufacturing Ftth Fiber Optical Splice Closure
US$ 5 - 10
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Guanglian
Model Number:
fiber optic distribution box
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
16 Ports FTT-H308A From China Manufacturing Ftth Fiber Optical Splice ClosureUS$ 5 - 10MOQ: 5 Pieces -
96 Cores Horizontal Optic Joint Enclosure From China Manufacturing Ftth Fiber Optical Splice ClosureUS$ 5 - 10MOQ: 5 Pieces
-
Horizontal Optic Joint Enclosure From China Manufacturing Ftth Fiber Optical Splice ClosureUS$ 5 - 10MOQ: 5 Pieces
-
96 Cores Optic Joint Enclosure From China Manufacturing Ftth Fiber Optical Splice ClosureUS$ 5 - 10MOQ: 5 Pieces
-
China Manufacturing Ftth Fiber Optical Splice Closure Optic Joint EnclosureUS$ 5 - 10MOQ: 5 Pieces
Place of Origin
Hunan, China
Brand Name
Guanglian
Model Number
fiber optic distribution box
Specifications
16 ports FTT-H308Apetitive price
2.good airproof performance
3.excellent corrosion resistance
| Fiber Optic Cable Splice Closure |
| Fiber Optic Cable Splice Closure Specification |
| In and Out Port No. | Four ports,two input two output | |||||
| Fiber optical cable diameter | Small port:Φ8~Φ17.5, Big port:Φ10~Φ17.5 | |||||
| Fiber melting No. | Single core:1~12 cores(can be extend to 16 cores);Ribbon beam :24 cores | |||||
| Max capacity | Single-core :72cores ;Ribbon beam :144cores | |||||

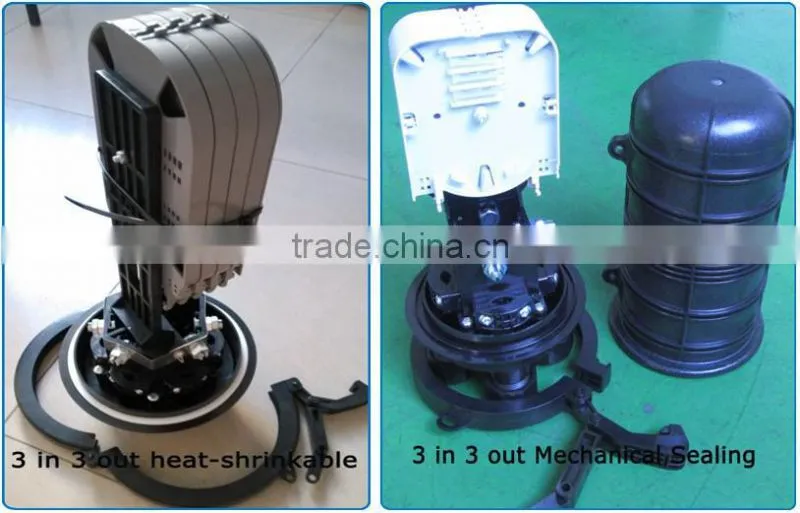

| Sealing way | Mechanical Sealing /Heat-shrinkable sealing | |||||
| Sealing tape | Unvulcanized self-adhesive sealing tape | |||||
| Installation application | aerial, pole-mounting, wall-mounting and direct buried | |||||
| Material | Closure body is made by Super ABS/PPR material, and the bolt was made in stainless steel | |||||
| Working Environment |
Working temperature: -5°C to +40°C,Relative humidity:≤85%(at +30°C),Atmospheric pressure: 70Kpa-106Kpa | |||||
| Weight and Size | Splice closure weight:2.1kg. Size:460×180×110(mm) | |||||

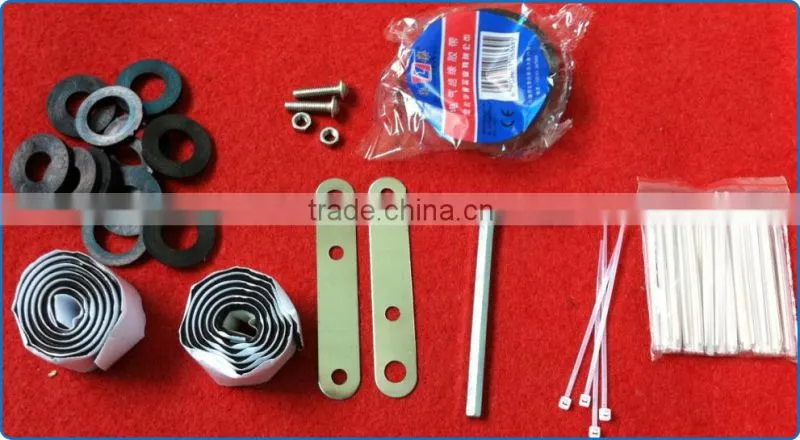

| Fiber Optic Cable Splice Closure Components |
| 1 | Insulated rubber tape | two roll waterproof tape | ||||
| 2 | Splice cassette | one set 12 core cassette | ||||
| 3 | Cable fixing device | two stainless steel bolt sets | ||||
| 4 | Internal hexagonal wrench | two sets | ||||
| 5 | Heat shrinkable tube | one package | ||||
| 6 | stainless steel tie | one set | ||||
| Fiber Optic Cable Splice Closure Packing Details |
| Packing | Packed by Carton.Then covered with waterproof membrane. | |||||
| Normal splice closure factory quantity | Standard quantity is 8 or 10 sets with a tolerance of 5% or other required. | |||||
| Carton Weight | Approx. 24kg per carton.Carton Size:515*425*575mm | |||||
| Fiber Optic Cable Splice Closure Related Products |
| Fiber Optic Cable Splice Closure ISO Certification |
Our Services
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
♦ For more information. please visit our website:
Contact with us
- Website:
- Contact: Mr Tim
- Phone: +86-731-85501765 Fax: +86-731-89722708
- Address: No.318 Xizi,Wanjiali Road,Yuhua District,Changsha.Hunan,China,410007
- Skype: opticfiber.tim
- Twitter: opticfiber_tim
- Email: timoptic(at)/ tim(at)
