1/2/4 core OM3 multimode ftth drop optic fiber cable indoor GJXFH FTTH cable
Description

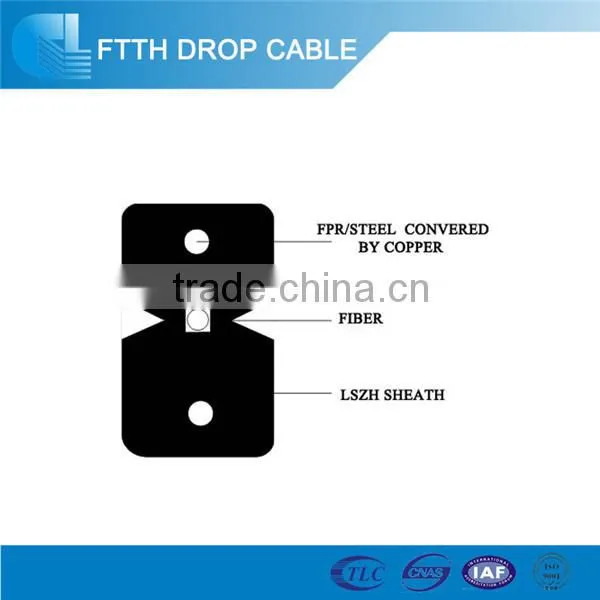

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.
A steel wire as the traditional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.
Characteristics
1.Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2.Two parallel FRP strength memners ensure good performance of crush resistance to protect the fiber
3.Single steel wire as the traditional strength member ensures god performance of tensile strength
4.Simple structure,light weight and high practicablity
5.Novel flute design, easily strip and splice,simplity the installation and maintenance
6. Low smoke, zero halogen and flame retardant sheath
|
Cable code |
Fiber Count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
GJYXFH-1 |
1 |
(2.0±0.2)×(5.0±0.2) |
21 |
30/60 |
300/1000 |
15/30 |
GJYXFH-2 |
2 |
(2.0±0.2)×(5.0±0.2) |
21 |
30/60 |
300/1000 |
15/30 |
GJYXFH-4 |
4 |
(2.0±0.2)×(5.6±0.2) |
21.5 |
30/60 |
300/1000 |
15/30 |
GJXH-1 |
1 |
(2.0±0.2)×(5.0±0.2) |
21 |
30/60 |
300/1000 |
15/30 |
GJXH-2 |
2 |
(2.0±0.2)×(5.0±0.2) |
21 |
30/60 |
300/1000 |
15/30 |
GJXH-4 |
4 |
(2.0±0.2)×(5.6±0.2) |
21.5 |
30/60 |
300/1000 |
15/30 |
Company Profile
Hunan Guanglian Photoelectricity Technologies Co., Ltd is a professional enterprise on fiber optic cable at widely range of outdoor fiber optic
/ aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /ADSS and OPGW for power system transmission.
Our Advantage
1. Professional cable manufacturer.
2. About 10 years experiences in cable industry.
3. Best delivery time.
4.MOQ is 1kilometer
5.High quality with competitive price
6.Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
Factory information
Factory Size (ters): |
1,000-3,000 square meters |
Number of Production Lines: |
4 |
Number of R&D Staff: |
5 - 10 People |
Number of QC Staff: |
5 - 10 People |
Management Certification: |
ISO9001 |
Contract Manufacturing: |
OEM Service Offered Design Service Offered |
Packing and shipping

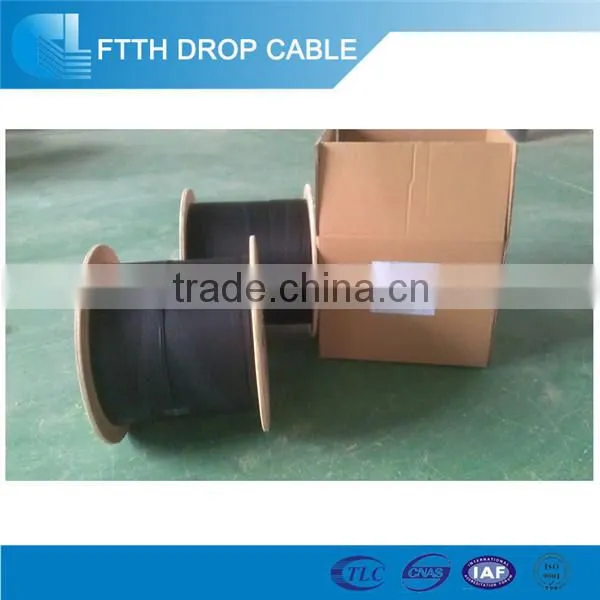

Packaging |
Wooden drum, 2000m to 6000m/drum or as you required |
Shipping methods. |
By sea or by air |
|
Sheath mark applied at 1-meter intervals |
a. Supplier: Guanglian or as customer required |
|
b. Standard Code(Product Type, Fiber Type, Fiber Count) |
|
c. Year of manufacture |
|
d. Length marking in meters |
