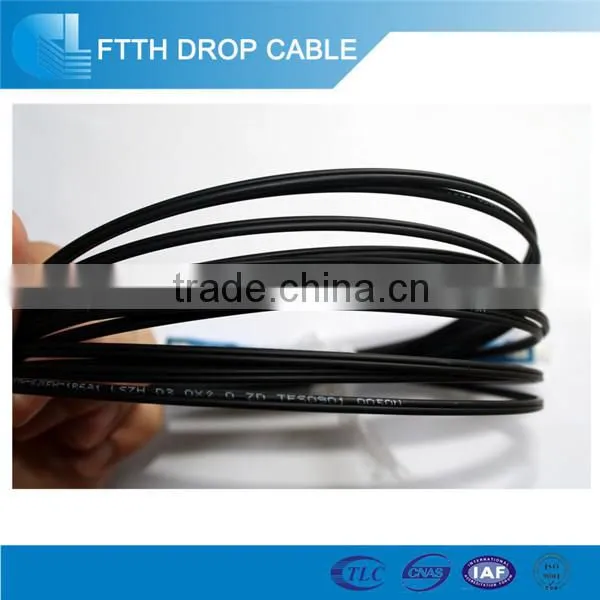

1 Core 4 Core G657 Fiber Ftth Drop Cable Price photo-5
1 Core 4 Core G657 Fiber Ftth Drop Cable Price photo-6
US$ 0.05 - 0.17 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
GUANGLIAN
Model Number:
FTTH
Contact Supplier Request Quote Chat Now
Hunan Guanglian Photoelectricity Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name GUANGLIAN
Model Number FTTH
Type Cat 1
Number of Conductors 1

1 core 4 core g657 fiber ftth drop cable price





Welcom to Guanglian Cable

YOUR FIBER OPTIC CABLE PARTNER



1 core 4 core g657 fiber ftth drop cable price

 FTTx, FTTH Drop Cable

Models:

Indoor FTTH 1/2/4 core fiber optic cable

Characteristics
Low smoke, zero halogen andflame retardant sheath
Application

  • All types of fiber cables with different structures

  • High performance optical network operating

  • High speed optical routes in buildings (FTTx)

  • Application in L band (1565-1625nm)

Features and Benefits



  • Special  fiber provides high bandwidth and excellent communication transmission property

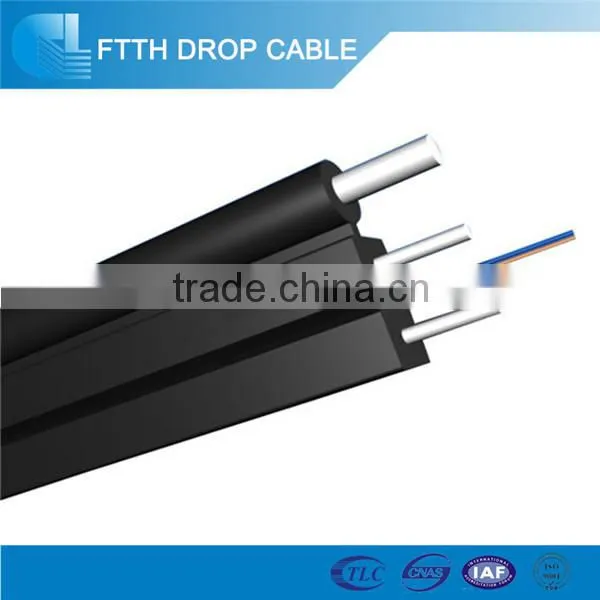

  • Two parallel strength members ensuring good performance of crush resistance to protect the fiber
  • Simple structure, light weight and high practicability

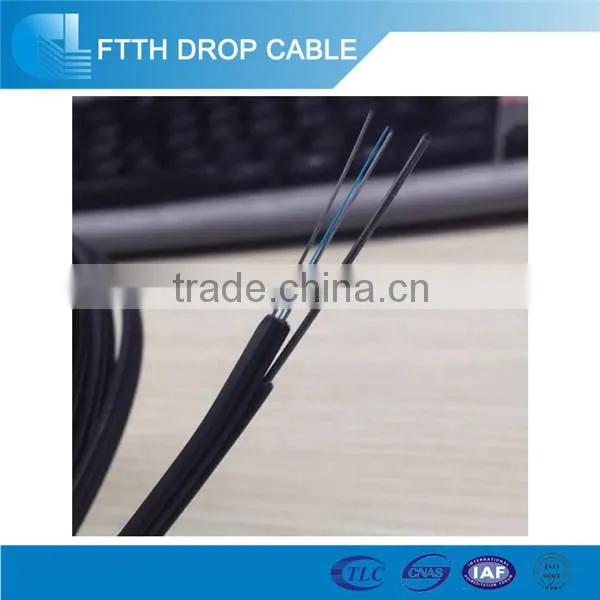

  • Novel flute design, easily strip and splice, simplify the installation and maintenance

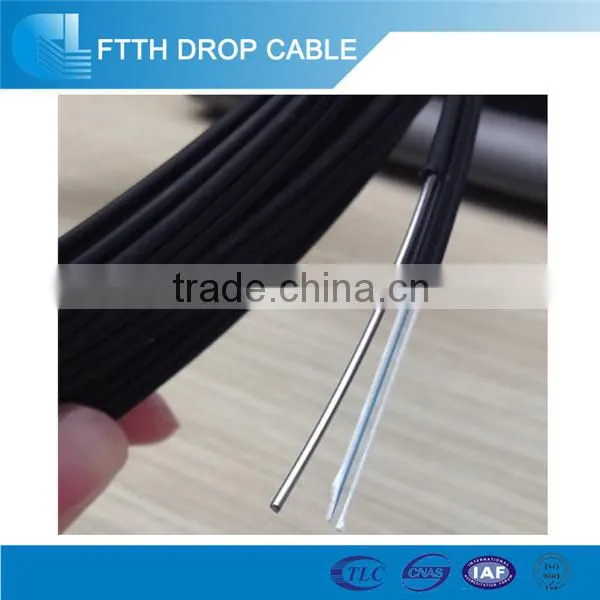

  • Single steel wire as additional strength member ensuring good performance of tensile strength

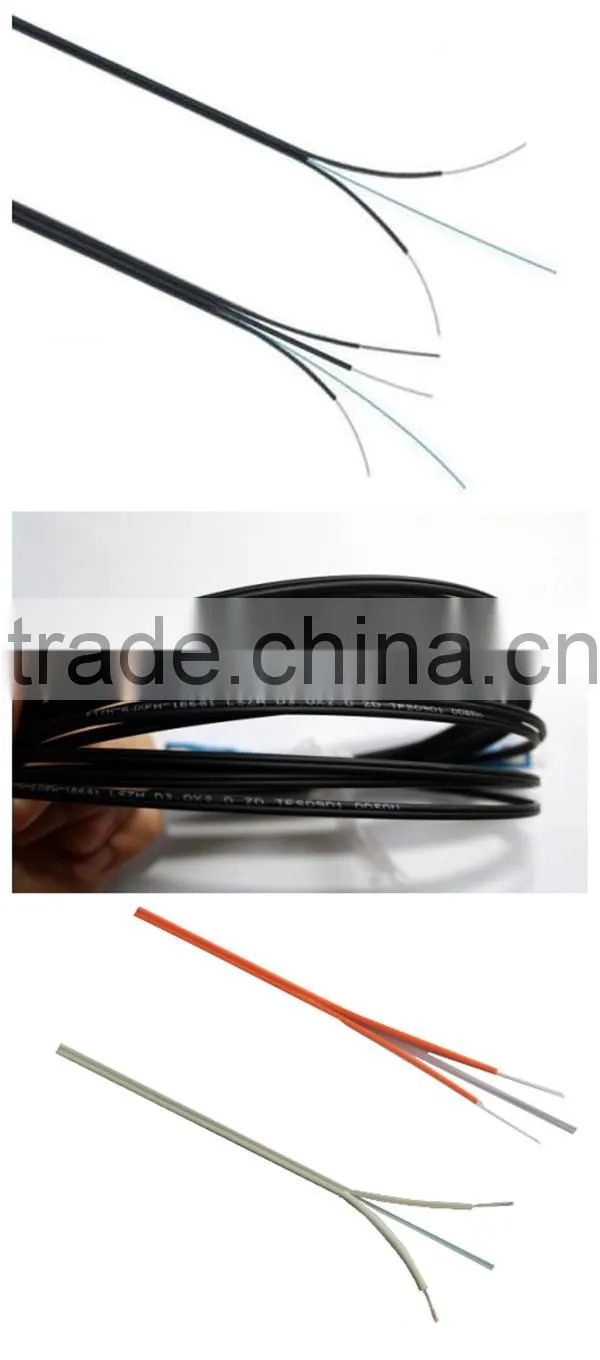

Photos Show

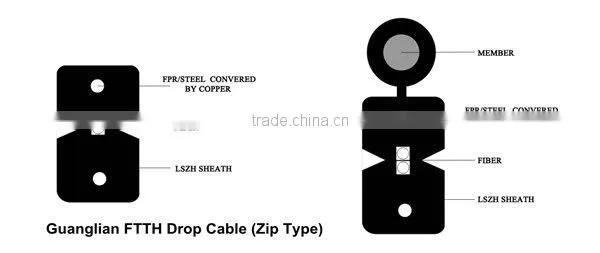

1 core 4 core g657 fiber ftth drop cable price

1 core 4 core g657 fiber ftth drop cable price

Technical Parameters



Geometrical Characteristics:

Fiber Core

1

2

1

4

Cable Dimension(mm)

2.0×5.0

2.0×5.0

2.0×5.3

2.0×5.3

Cable Weight(kg/km)

9

10

11

12



Mechanical Characteristics:

Max Load (N)

Long Term

60

60

60

60

Short Term

120

120

120

120

Bending Radius(CM)

Dynamic

30

Static

15



Fiber:

Fiber Type(core/cladding dimension)

G657



Transmission Characteristics:

Fiber Mode

SMF

Wavelength

1310/1550(nm)

Max Attenuation (dB/km)

0.45/0.30

AVG Attenuation (dB/km)

0.40/0.25

Minimum Bandwidth (MHz·km)

---------



Environmental Characteristics:

Storage Operating Temperature (°C)

-20 ~ +60



Ordering Information:

Fiber Cores

1, 2 or 4

Jacket

PVC or LSZH

Wire

Wire (FRP or KFRP) or None wire



Note: Rohs Apply

Our Professional Factory

1 core 4 core g657 fiber ftth drop cable price

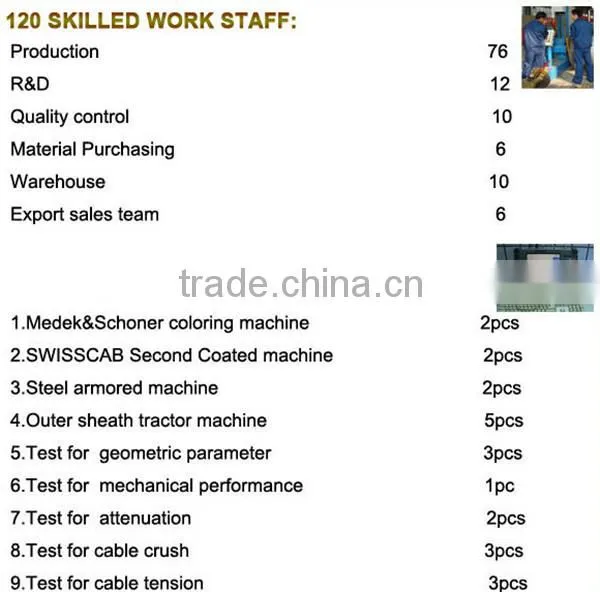

Factory Overview



1 core 4 core g657 fiber ftth drop cable price





Fiber Optic Cable Testing

Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber

Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each

mechanical characteristics can be tested on testing machine for the particular test.

1 core 4 core g657 fiber ftth drop cable price

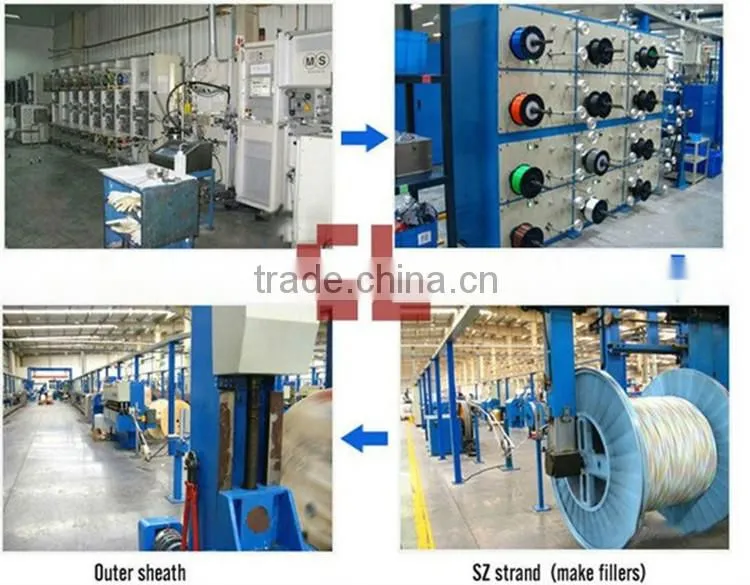

Manufacturing Process

Here at Guanglian we provide you technical assistance and information to suit various levels of experience from basic theory through to fusion splicing and network testing.



1 core 4 core g657 fiber ftth drop cable price

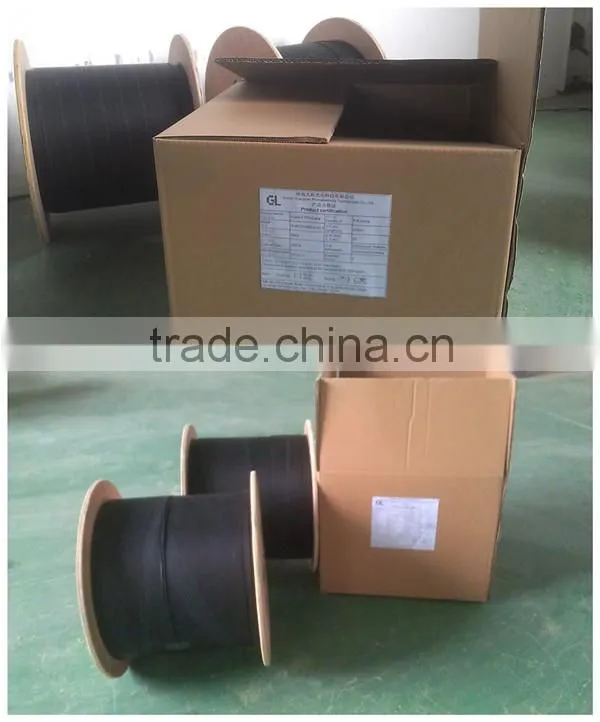

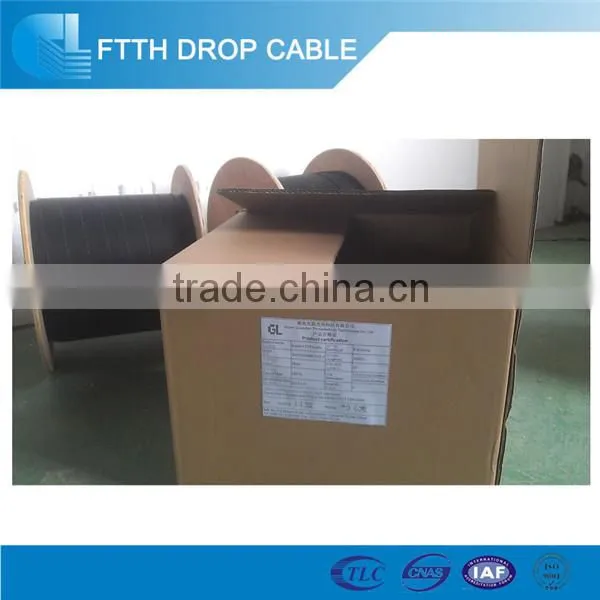

 Packaging Details

The cables will be shipped on disable wooden or treated wooden drums.

Inner packing: rolled by wooden Drum

Out packing: one drum in a carton box

1 core 4 core g657 fiber ftth drop cable price

The following printing(white hot foil indentatioin)is applied at 1-meter intervals.

  • Supplier: As cuctomer required
  • Standard Code(Product Type, Fiber Type, Fiber Count): Aerial/Duct/Buried SM/MM xx F
  • Year of manufacture: xxx
  • Length marking in meters
  • Cable ID / Drum No.
Why choose us?
  • FAST SHIPPING from factory
  • Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
  • We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
  • We accept OEM. The cable size and material are customized.Ur own logo and

    own design are welcome.  We will produce according to ur requirment and description;

  • With more than 9 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprises.

    1 core 4 core g657 fiber ftth drop cable price

Contact with us
  • Website: www.
  • Contact: Sam Shao
  • Phone: +86-731-85501765 Fax: +86-731-89722708  Mobile: +86 136 6290 2142
  • Address: No.318 Xizi Business center, Wanjiali Road, Yuhua District, Changsha. Hunan, China, 410000
  • Email: sam(at)
  • Skype: samshao0126
