Specifications
1) indoor 3mm plastic fiber optic cable2) aramid yarn strength
3) soft easy stripping
5)Meet UL OFNR required

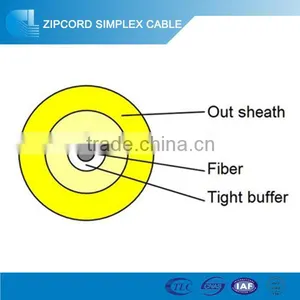

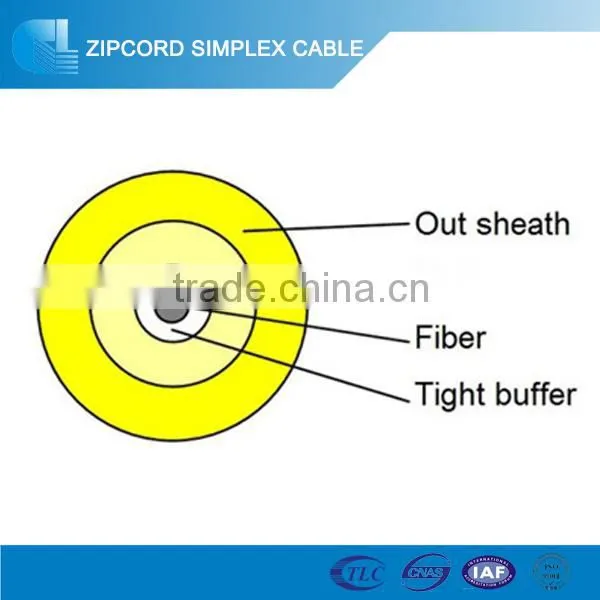

ZIPCORD SIMPLEX FIBER OPTIC CABE(GJFJV)
Hight strength kevlar yarn member. High quality tight buffered with Round construction. then extruded with a PVC or LSZH sheath (low smoke ,zero halogen ,Flame retardant ).
Excellent strippability with tight buffered fibre. Soft ,it is easy for stripping
APPLICATION
TECHICAL DATA
| Type | Outer diameter (mm) |
Weight (kg/km) |
Tensile strength (N) |
Minimum bending radius (mm) | ||
| Short-term | Long-term | Dynamic | Static | |||
| GJFJV | 2.0 | 4 | 100 | 60 | 60 | 30 |
Transmission Characteristics:
| Fiber Mode | SMF | 50/125 | 62.5/125 |
| Wavelength | 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) |
| Max Attenuation (dB/km) | 0.45/0.30 | 3.5/1.5 | 3.5/1.5 |
| AVG. Attenuation (dB/km) | 0.40/0.25 | 3.0/1.0 | 3.0/1.0 |
| Min Bandwidth (MHz/km) | —— | 400/400 | 160/500 |
Note:
3. Specially designed Cable structure is available on request.
Photo show:
1. Standard Package:
Rolled by wooden wooden drums and then packed in a carton
box. 2000m/drum or other required.
2. Sheath mark
The following printing(white hot foil indentatioin)is applied at.
- Supplier: Guanglian or as cuctomer required
- Standard Code(Product Type, Fiber Type, Fiber Count):
- Year of manufacture: xxx
- Length marking in meters
1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely
Hunan guanglian photoelectricity technologies Co.,Ltd is the professional enterprise on fiher optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.
1. The Gate of Factory
2. Raw Material
3. Production Line
4. Fiber Optic Cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
5. Wooden Drums
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to ur requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
