China Moble approval for Single Mode Figure 8 12 Core Optical Fiber Cable
1) The type of this fiber with single-mode G652 G655 G657 or multimode 50/125, 62.5/125. etc, with a loose tube which is made of high modulus plastic

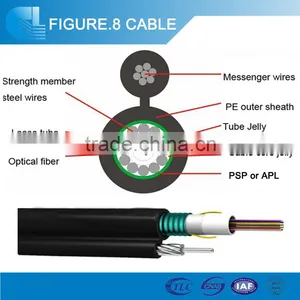

2) Figure 8 self-supporting cable, 2~144 fibers, central strength member (steel or FRP), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, covered by copolymer coated steel tape, PE outer sheath,the suspension line (1.2x3=3.6mm), 7 steel wires stranded together.
3) Detailed specification on your request.
APPLICATION
1) Adopted to areial self-supporting installation
2) Access network and local network in high electromagnetic interfering places.
CABLE INFORMATION
| Mechanical and physical parameter | ||
| Item | Description | |
| Tensile Strength | Long Term | 3000N |
| Short Term | 8000N | |
| Crush Resistance | During Installation | 2000N/100mm |
| During Operation | 800N/100mm | |
| Temperature Range | During Installation | -10~+50 |
| During Operation | -40~+70 | |
| Minimum Bending Radius | During Installation | 20 times of cable diameter |
| During Operation | 10 times of cable diameter | |
Note:
3. Specially designed Cable structure is available on request.

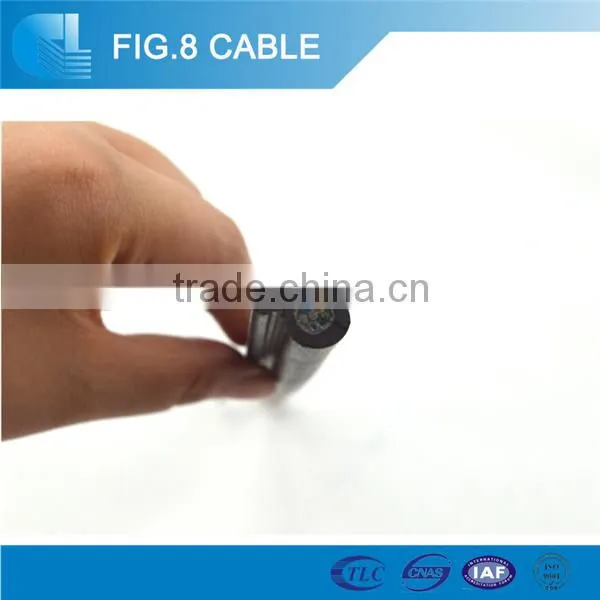

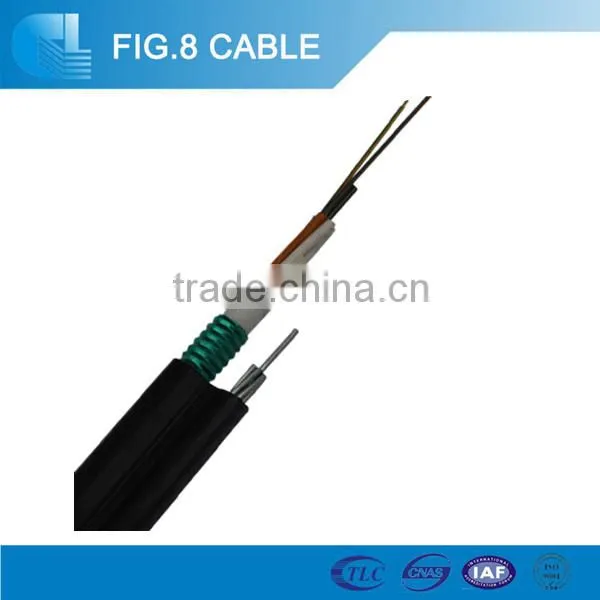

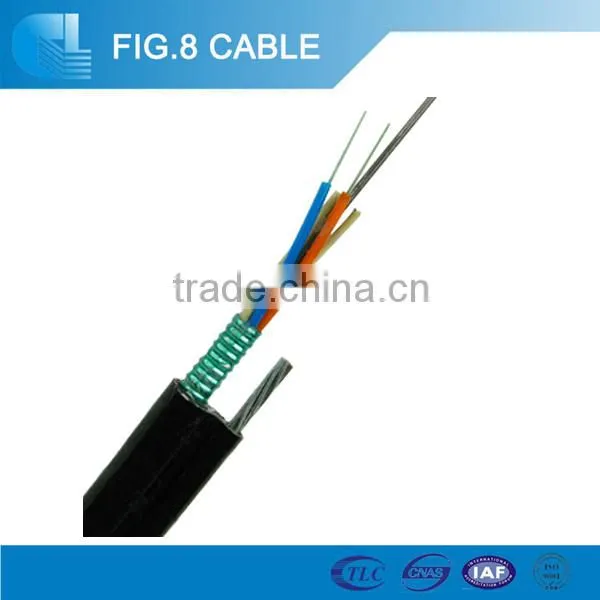

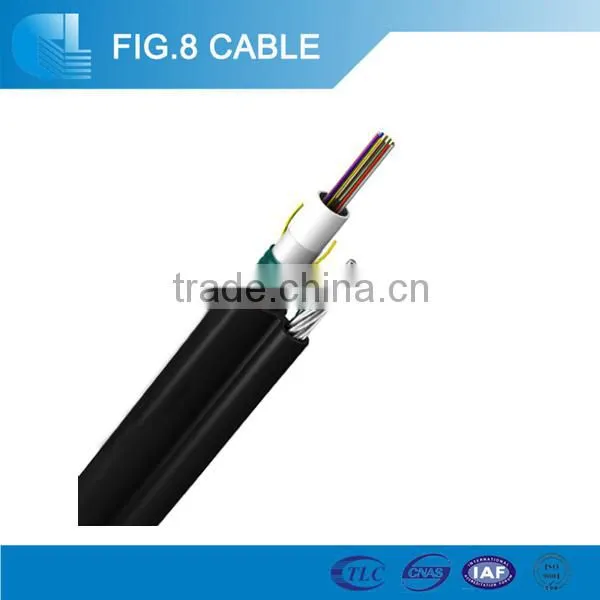

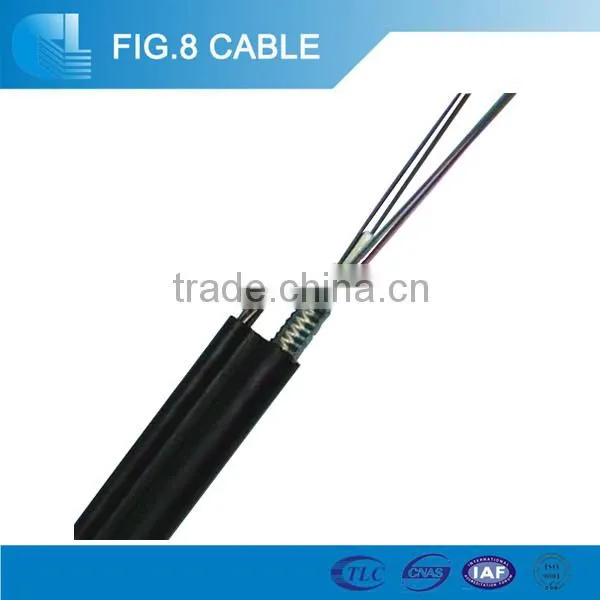

Photo show:
Main products: You can click directly into the link
Company Information
Hunan guanglian photoelectric technologies Co.,Ltd is
the professional enterprise on fiber optical cable at widely range of outdoor fiber optic / aerial fiber optic cable / duct fiber optic cable /directly buried fiber optical cable /Adss and OPGW for power system transmmision.

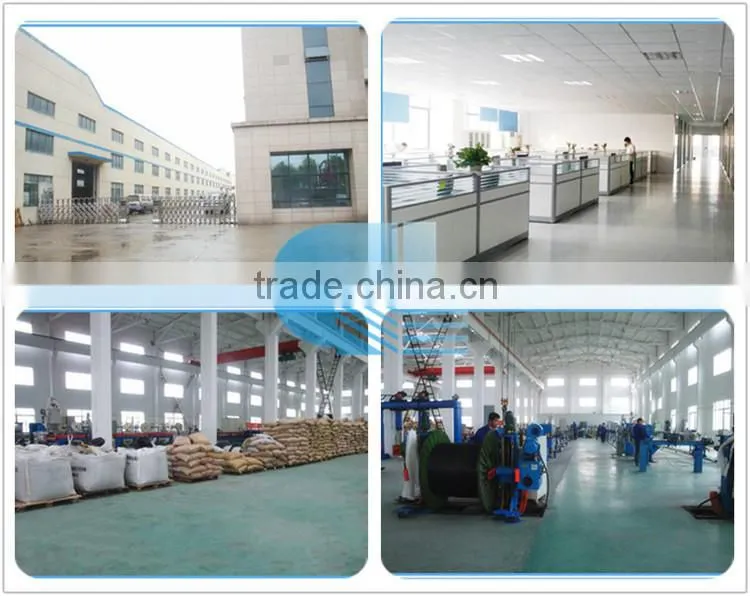

The Gate of Factory

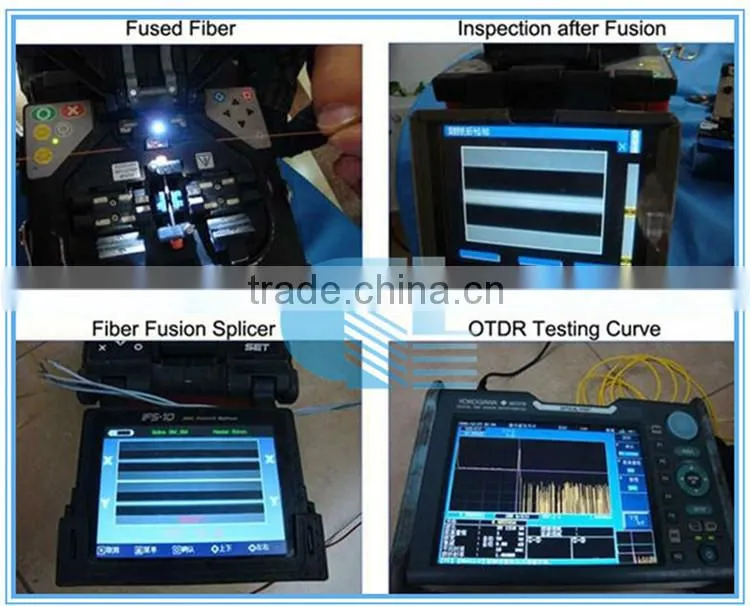

Fiber Optic Cable Testing
Mechanical testing of Optical Fiber Cables is done to determine the quality of the Optical Fiber Cable, mechanical characteristics can be tested on testing machine for the particular test.
Our Certificate
FAQ
1. Shipping: Generally by sea or air due to heavy weight. Samples will be send by DHL, FedEx. etc
2. Payment: We accept T/T, L/C and Western Union, just choose what you like
3. Delivery time: Generally 3~7 working days upon receipt deposit. According to the quantity.
4. MOQ: Generally our MOQ is 1000meters. samples below 1meter can be provided freely.
Packaging & Shipping
1. Standard Packaging:
Rolled by wooden wooden drums. 2000m to 6000m/drum or other required.
2. Sheath mark
The following printing(white hot foil indentation)is applied at 1-meter intervals.
a. Supplier: Guanglian or as customer required
b. Standard Code(Product Type, Fiber Type, Fiber Count)
c. Year of manufacture: xxx
d. Length marking in meters.
Quote Request Information
1. Fiber Count: 2 to 144 Fibers
2. Span length: 50meter to 800meters is available
3. Fiber type: Various kind of Single mode or multi mode is available
4. Line Voltage: 10kV, 35kV, 110kV or 220kV
5. Order Quantity
Our Services
♦ We are the one of biggest manufacture of fiber optic cable in China and has more than 10 years manufacturing and selling experience.
♦ We accept OEM. The cable size and material are customized.Ur own logo and
own design are welcome. We will produce according to your requirment and description;
♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.
Contact with us
- Website:
- Contact: Ms Coco
- Phone: +86-731-85501765 Fax: +86-731-89722708
- Address: No.318 Xizi,Wanjiali Road,Yuhua District,Changsha.Hunan,China,410007
- Whatsapp: +86 15211134956
- Skype: Qin Coco
- Email:coco(at)
