Specifications
Transient Electromagnetic Prospector1,high sensitivity
2,high acccuracy
3,easy to operate
DSHM-3 Transient Electromagnetic prospector
Main Function:
1. Search geothermal resources, oil-gas field census and exploration in high-resistance covering area (like carbonate rock, igneous rock and frozen soil covering area), etc.
2. Detect various metal and non-metal ores, underground water, underground water-filling karsts and steep dip geological formation;
3. Especially applied in coal bed and coal goaf area and water-filling area detection;
Main Advantages:
1.Advanced interpretation software system: include half-space interpretation software system for ground work and full-space interpretation software system for underground work (coal mine tunnel, tunnel, military affairs etc.)
2. Industrial PC as main controller and Windows as control panel, with high automatization degree;
3. Receiver has super low noise preamplifier; you can choose proper stacking times at random to guarantee measurement accuracy and wide dynamic;
4. The power supply working method is “Big currency small coil”, and it first realizes 200A big currency continuous square-wave power supply in the world;
5. The display is reflective LCD, the power consumption is extremely low, so we can use it in the sunshine, especially applicable in field open-air environment;
6. Use large capacity electronic disk as memory instead of hard-disk to make sure the security of equipment even in field strong vibration transportation;
7. Multiple anti-jam technology to make detect and explanation result more accurate;
Main Technical Parameters:

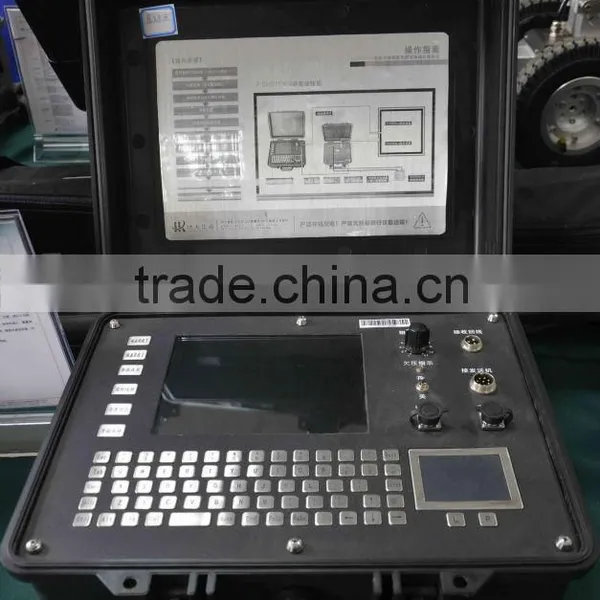

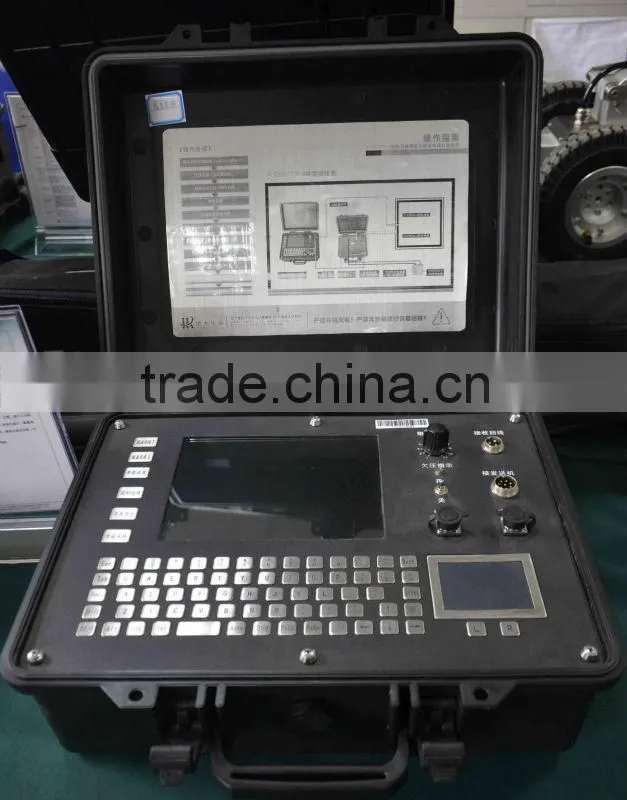

Receiver:1.Whole domain data acquisition, sampling rate is changeable: 1μs, 4μs, 16μs
2.16 bits, 1M/S, A/D converter adds real time floating-point amplify, dynamic range: 140dB
3. Max. sampling delay time range: 64ms
4. Resolution: 0.1μV
5. Memory: 256M
6. Hard disk: 40G
7. Interface: USB, parallel port, serial port, network card
8. Display: Colorful high brightness TFT 800*600 lattice

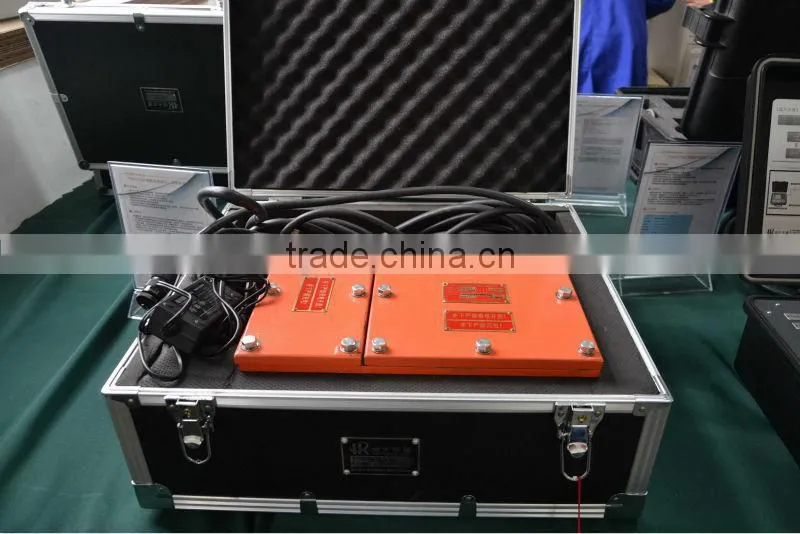

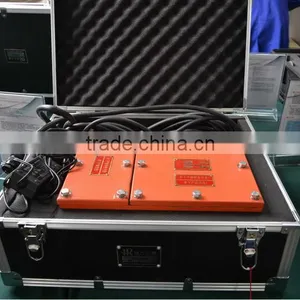

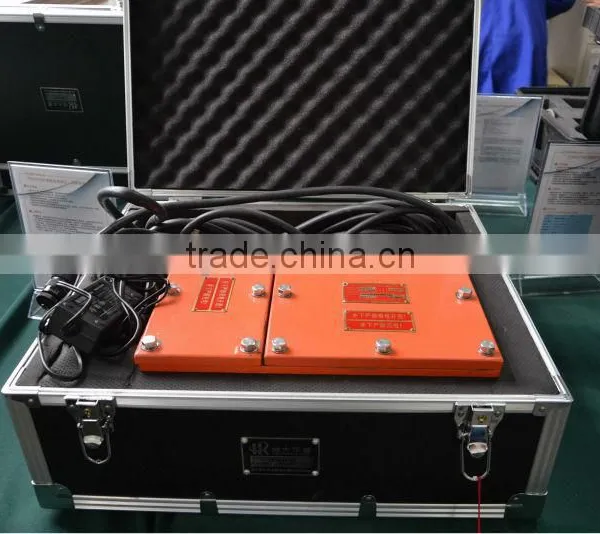

Transmitter:
1.Currency intensity (A): 25, 50, 100, 200
2.Currency pulse width (ms):10, 20, 40
3.Weight (kg): 2
