Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > 36W Powerline Adapter

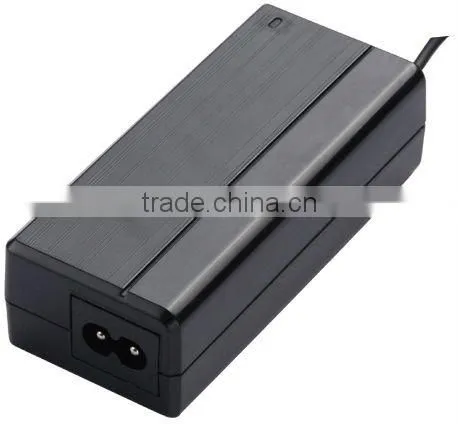

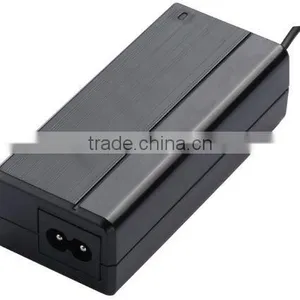

36W Powerline Adapter

Negotiable MOQ: 300 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

HY-D02

Contact Supplier Request Quote Chat Now

Shenzhen Guandexin Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name GD

Model Number HY-D02

Output Type DC

Connection Desktop

Specifications

1.36W Powerline Adapter
2.C.C/C.V Mode
2.Super mini size
3.Light and portable
4.Wide application

36W Powerline Adapter

Application: Lithium ion battery, digital camera, digital photo frame, telecommunications terminal equipment, monitor equipment, test equipment, LED lamps and lanterns, electric tools, portable DVD, LCD, audio, video monitoring system and any other portable type equipment.

Technical specification

Feature:

Input/Output Specifications:

Input Voltage: AC90-264V, 47-63Hz

Output Power: 36W

Output Voltage: 3-36V

Max. Current: 3A

Over Voltage Protection: 120% Min.

Over Current Protection: 120% Min.

Short Circuit Protection: Auto Recovery

Load Regulation: ±3-5%

General Specifications:

Operating Temperature: 0-40°C

Storage Temperature: -20-+85°C

Operating Relative Humidity: 5-95% RH

Withstanding Voltage: AC3000V (Max), 5mA (Max.)

Insulation Resistance: DC500V, 100MΩ (Min.)

Technical Specification
Input/Output Specifications
Input Voltage	AC 90-264V, 47-63Hz
Output Power	36W
Output Voltage	3-36V
Max. Output Current	3A
Over Voltage Protection	120% Min.
Over Current Protection	120% Min.
Short Circuit Protection	Auto Recovery
Load Regulation	±3-5%
General Specifications
Operating Temperature	0-40°C
Storage Temperature	-20-+85°C
Operating Humidity	5-95% RH
Withstanding Voltage	AC3000V (Max.), 5mA (Max.)
Insulation Resistance	DC500V, 100MΩ (Min.)
