Specifications
1. impact resistance2.different shape
3.easy installation
4.novel design

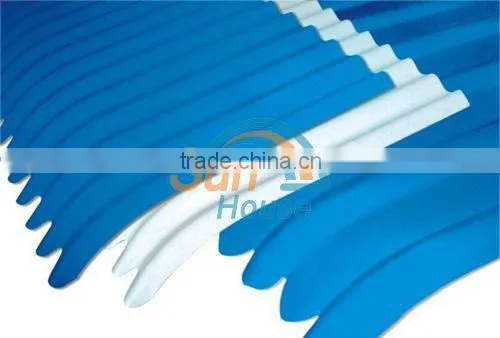

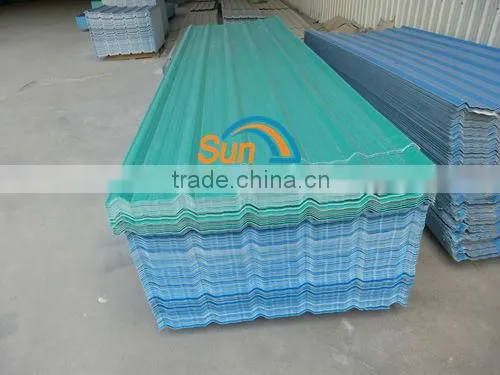

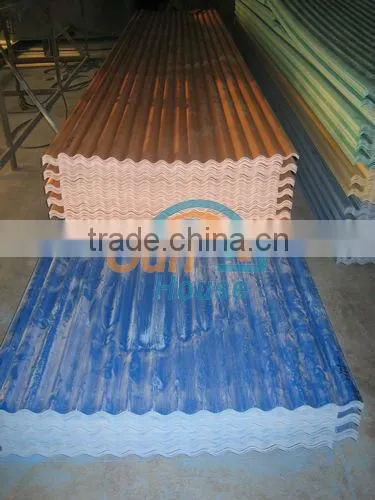

PVC corrugated sheetis mainly made from polyvinyl chloride resin (PVC) mixing with red soil, anti-UV agent and other chemical materials under scientific proportion. It is fire retardant, anticorrosive, weather resistant, colorful and environment protective.
PVC semitransparent corrugated sheet is manufactured with the latest European patented technology and directions. The product is characterized by its semi transparence, bright color, no-easy color fading, high intensity, fire-proof performance, weather resistance, resistance to acid and alkali as well as organic solvent and low cost. It is a best product to replace PC sun panel, especially low-end PC sun panel to prolong the lifespan more than ten times.
Application
Roofing for workshop, warehouse, market;
Roofing for parking lot, corridor, passage, balcony;
Clapboard of the road and etc.
Characteristic
Environment protection
Light weight
Beauty
Low noise
Fire retardant
Anti-corrosion
Impact capacity
Weather resistant
Technical Data
Performance |
Test Method |
Conditions |
Units |
Indicators |
Proportion |
JC/T 562-1994 |
|
g/cm3 |
1.45-1.65 |
Heat distortion temperature |
ASTM D-648 |
1.82Mp |
ºC |
61-67 |
Temperature Range |
|
|
ºC |
-20~+50 |
Thermal conductivity |
ASTM C-177 |
|
W/mºC |
0.16 |
Coefficient of thermal expansion |
ASTM D-696 |
|
cm/cm/ºC |
6.3E-05 |
Strength |
ISO 6603/1 |
2mm sheet |
J |
45-60 |
Yield Tensile Strength |
ASTM D-638 |
10mm/ min |
MPa |
52-66 |
Tensile Strength |
ASTM D-638 |
10mm/ min |
MPa |
39-53 |
Yield Elongation |
ASTM D-638 |
10mm/ min |
% |
3 |
Tensionset |
ASTM D-638 |
10mm/ min |
% |
140-160 |
Elastic modulus |
ASTM D-638 |
1mm/ min |
MPa |
2700 |
Bending strength |
ASTM D-790 |
1mm/ min |
MPa |
90-100 |
Flexural modulus |
ASTM D-790 |
1mm/ min |
MPa |
2200 |
Rockwell hardness |
ASTM D-785 |
|
Rockwell |
105-115 |
Deflection |
JC/T 562-1994 |
Support Span 800mm, load 40kg |
mm |
32 |
Oxygen index |
JC/T 562-1994 |
|
|
43 |
