Diaphragm air pump

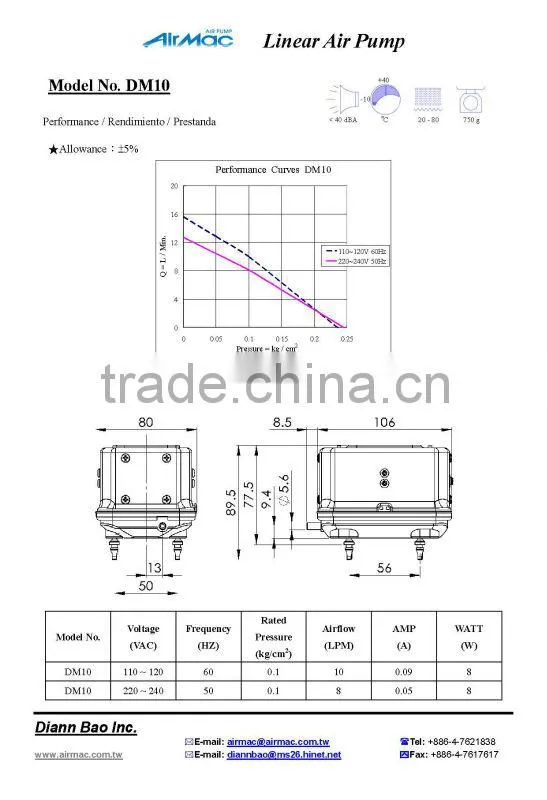

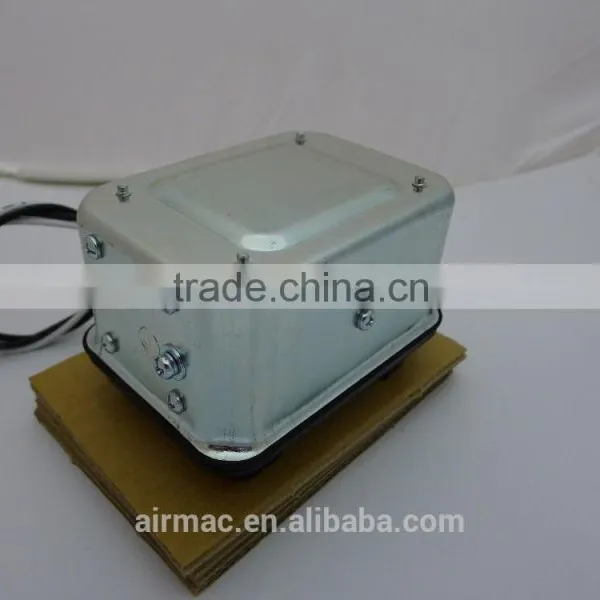

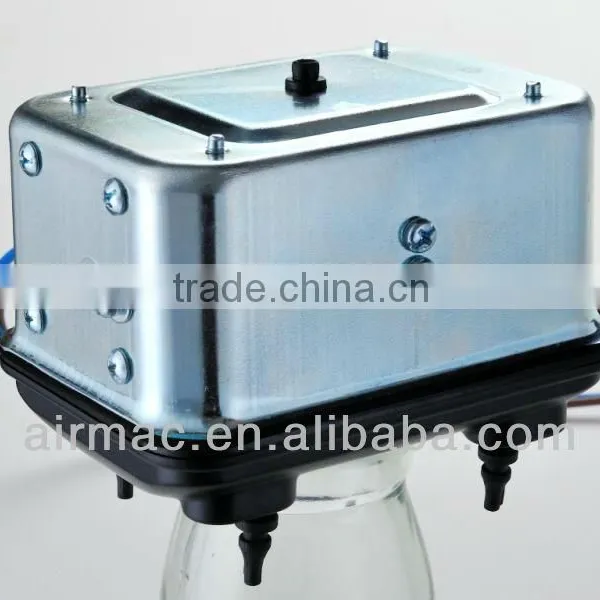

AirMac Diaphragm air pump DM10
Model number: DM10 Diaphragm air pump
Specification:
Open airflow: 12LPM for 60Hz; 10LPM for 50Hz.
Max. pressure: 206mBar for 60Hz; 166mBar for 50Hz.
Rated Pressue: 40mBar
Application:
Gas Analyzers, Massage, Air Mattresses, Ozone Generators, Medical instruments, Low Frequency Therapentic Equipment Air Sampling, ...etc..
| Built-In(Vacuum) pump | |||||||
| Model No. | Rated Pressure | Openflow | AMP (A) | WATT (W) | MAX Openflow | Max Pressure | Max Vacuum (milli bar) |
| DB5 | 0.04 | 10 | 0.12 | 9 | 12.5 | 0.22 | |
| DB5S | 0.04 | 9 | 0.12 | 8.7 | 12 | 0.22 | 206 |
| DB5S-XF01 | 0.04 | 9 | 0.12 | 8.7 | 12 | 0.21 | 206 |
| DM5 | 0.04 | 10 | 0.12 | 9 | 12.2 | 0.22 | |
| DM10 | 0.1 | 10 | 0.09 | 8 | 15.5 | 0.235 | |
| DM10S | 0.1 | 10.5 | 0.1 | 10 | 16.4 | 0.254 | 245 |
| DB8B | 0.1 | 11 | 0.19 | 12 | 16 | 0.255 | |
| DB8BS | 0.1 | 8.5 | 0.19 | 12 | 15.5 | 0.25 | 253 |
| DB15B | 0.1 | 19 | 0.38 | 22 | 32 | 0.36 | |
| DB15BS | 0.1 | 15 | 0.38 | 19 | 25 | 0.345 | 309 |
| DB10 | 0.1 | 10.5 | 0.1 | 10 | 17 | 0.257 | |
| DB10S | 0.1 | 9 | 0.1 | 10 | 15 | 0.245 | 220 |
| DBM20 | 0.1 | 20 | 0.17 | 15 | 30 | 0.353 | 335 |
| DB30B | 0.13 | 47 | 0.83 | 60 | 0.42 | ||
| DB30BS | 0.13 | 48 | 0.83 | 63 | 0.41 | 372 | |
| DB40B | 0.13 | 49 | 0.92 | 62 | 0.44 | ||
| DB40BS | 0.13 | 51 | 0.92 | 71 | 0.41 | 383 | |
| DBM25B | 0.13 | 23 | 0.14 | 12 | 54 | 0.25 | 240 |
| DBM30B | 0.13 | 35 | 0.32 | 28 | 62 | 0.352 | 325 |
| DBM40B | 0.13 | 44 | 0.41 | 35 | 72 | 0.41 | 360 |
| DBM30B(12VDC) | 0.13 | 30 | 2.9 | 32 | 56 | 0.352 | 320 |
| DBM30B(24VDC) | 0.13 | 30 | 1.2 | 27 | 61 | 0.305 | 295 |
Q&A:
Q1. When can I get the quotation?
We are able to quote within 24 hours after we receive your inquiry.If you are urgent to get the price, please send the message on trade management or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.If you need the samples for evaluation, we will charge for the sample cost.
Q3. Can I change the valtage and frequency ?
Yes, we have 220-240VAC/ 50Hz or 110-120VAC/60Hz for your option.
Q4. What is your main market?
whole Europe, Southeast Asia, North/South America, Australia, Middle East Regional Area
Before every model is released on market , needs to pass 12 months lifespan- testing at least(24hours a day nonstop).
Air pump(blower), vacuum pump(blower),suction pump, DC pump, Diaphragm pump, Thomas 6025
