DP6820 Electric Airless Paint Sprayer
US$ 200 - 500
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DINO-POWER
Model Number:
6820
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DP-6820 Airless Paint Spraying MachineNegotiableMOQ: 20 Sets -
DP6820 Airless Paint SprayerUS$ 200 - 500MOQ: 50 Sets
-
DP-6870 Big Capacity Diaphragm Pump Airless Paint Sprayer Larius TypeNegotiableMOQ: 20 Sets
-
Heavy Duty Airless Paint SprayerUS$ 600 - 700MOQ: 10 Sets
-
DP6818 Airless Paint Sprayer Housfeld TypeUS$ 300 - 500MOQ: 20 Sets
Place of Origin
Zhejiang, China
Brand Name
DINO-POWER
Model Number
6820
Type
Other, Airless Spray Gun, Electric & diaphragm pump
Application
Paint Spray Gun
Specifications
DP6820 electric airless paint Sprayer diaphragm PumpPower: 1.0hp 750W
Max pressure: 227bar
Max flow: 2.0L/min
DP6820 electric airless paint Sprayer
DP-6820 Electric airless paint sprayer diaphragm pump is for professional painters, high quality and favorable price.
Model number. |
DP-6820 |
Type |
Electric & diaphragm |
Pressure controlling |
Mechanical |
Power |
750w |
Max. pressure (bar) |
227bar/3300psi |
Max. delivery (L/min) |
2.0 L/min |
Max.tip size (inch) |
0.019” |
Max.hose length (m) |
30m |
Hose operating pressure |
210bar/3050psi |
Hose exploded pressure |
800bar/11620psi |
Electric Motor |
Induction motor (brushless) |
Paint viscosity |
Low to Medium |
both water-based & oil-based? |
Yes |
Net weight |
27KGS |
Gross weight |
29KGS |
Carton size |
48.5×48.5×63 cm |
|
Spare parts for repairing 1. Diaphragm. 2. Outlet valve 3. Inlet valve 4. Airless tip / tip gasket / tip guard / filter
Contents in package: Airless paint sprayer, airless spray gun with 517 tip, 1/4*15m hose, repair kit, manual. | |

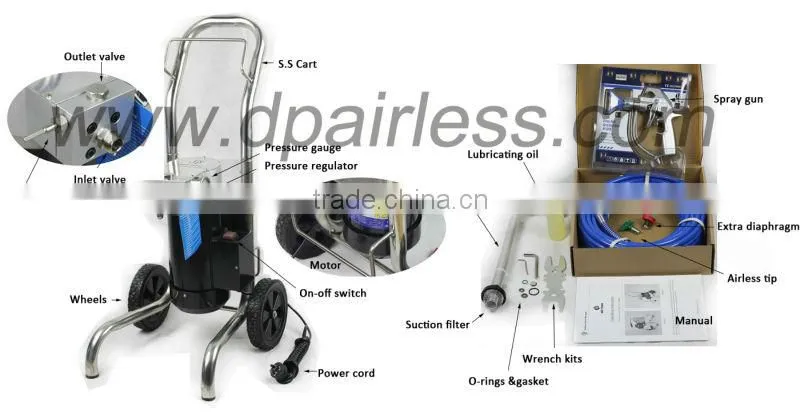

Features include:
Chrome coated cart with two wheels
Wheeled chrome coated cart, for easy moving, and hose storing. Easy to move it.
TEFC induction motor
TEFC induction motor with guaranteed reliable quality. No carbon brush, no spark. And very low noise.
Reliable pressure control valve
Reliable mechanical pressure control valve, performs like a electronic one.
Stainless steel suction tube
Stainless steel suction tube with 2-layers inlet filter, and easy screw-in connector to the inlet valve.

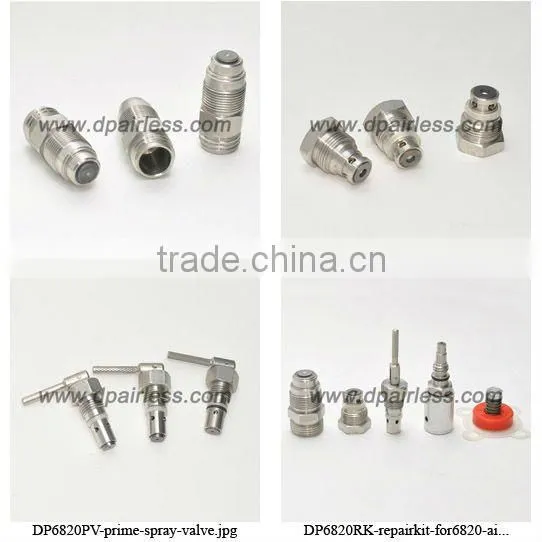

Quality proven inlet/outlet valves
Stainless steel + tungsten of carbide inlet/outlet valve ensure you 100% good performance.
It’s adaptable for use with a paint roller attachment for interior projects.
Supports hose length up to 45m maximum, and max.0.019″ spray tip
Ideal for small contractors, and large painting project.
Repair kit for DP-6820
standard configuration:

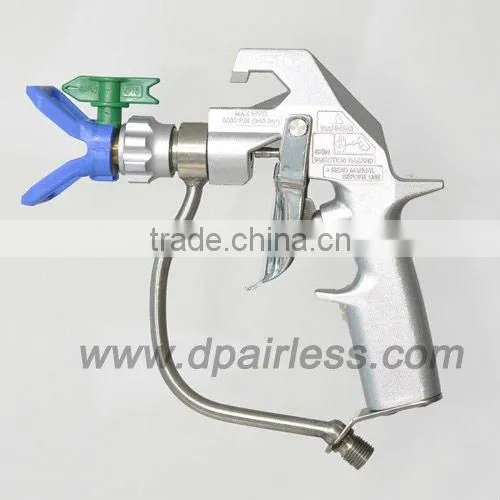

airless gun complete set
15m high pressure hose:
one extra diaphragm and other accessories:
carton box
Professional airless paint sprayer
