Zmodo 8CH DVR Outdoor 600TVL Truck Camera System

Zmodo 8CH DVR Outdoor 600TVL Truck Camera System thumbnail-1
Zmodo 8CH DVR Outdoor 600TVL Truck Camera System photo-1
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ZMODO
Model Number:
ZMD-KDA8-CARCZ8ZN
Contact Supplier Request Quote Chat Now
Zmodo Technology Shenzhen Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ZMODO
Model Number ZMD-KDA8-CARCZ8ZN

Specifications

* Up to 30' IR
* Waterproof
* 600TVL
* 1/3.7" Color CMOS
* One Year Warranty

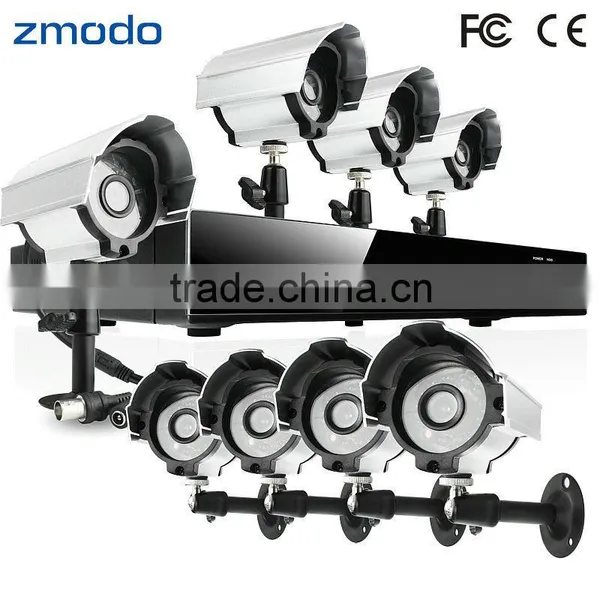

This 8 CH DVR surveillance system  includes a real-time H.264 DVR and 8 indoor/outdoor IR security cameras at a reasonable price.

The ZMD-DD-SAN8 is an 8 channel, fully integrated, real time and hardware-based digital video recorder. With network access, 3G remote view, motion detection, VGA video output and USB2.0 backup, this 8 channel security DVR is perfect for residential and small businesses.

With 600 TV Lines, a 3.6mm lens and up to 30' illumination range, this high performance camera provides you the with the capability to record clear and sharp images day and night.





Zmodo 8CH DVR Outdoor 600TVL Truck Camera SystemZmodo 8CH DVR Outdoor 600TVL Truck Camera System

Model ZMD-DD-SAN8 - 8CH H.264 StandAlone DVR
Video Compression H.264
Video System NTSC / PAL
Operation System Linux Based
Video Input / Output BNC 8-Channel Input /BNC 1-Channel Output
Other Video Output VGA
Audio Input / Output RCA 4-Channel Input /BNC 1-Channel Output
Display Frame Rate NTSC: 240fps@D1/ PAL: 200fps@D1
Display Resolution NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576)
Recording Frame Rate NTSC: 56 fps @ D1 /120 fps @ HD1 / 240 fps @ CIF/PAL: 48 fps @ D1 /100 fps @ HD1/ 200 fps @ CIF
Record Resolution Selectable: NTSC: D1(704*480), HD1(704*240), CIF(352*240)/PAL: D1(704*576), HD1(704*288), CIF(352*288)
Record Mode Continuous / Time Schedule / Motion Detection
Recording Pack Time 15/30/45/60mins Selectable
Network Function Support Live View with IE & Mobile Phone
Network RJ45, 10M/100M
Net Protocol TCP/IP, PPPoE, DHCP and DDNS
Remote Access LAN or Internet Browsing
PTZ Control RS-485
HDD Interface SATA, Support between 250GB and 2TB
USB USB Backup/USB 2.0
Remote Control IR Remote Control
Power Supply 12V/3A DC
Power Consumption IR on Max 1200mA
Dimension 11.4 "(W) x 9.1" (D) x 1.65"(H)
Model ZMD-CCH-BCS13NM - 600TVL Security Camera
Image Sensor 1/3.7" Color CMOS (PC6030)
TV System NTSC / PAL
Horizontal Resolution 600 TV-Lines
Lens 3.6mm
Number of IR LEDs 12 LEDs
Infrared Illumination (Night Vision) up to 30ft(10~15m)
Minimum Illumination 0.0 Lux
S/N Ratio > 45.6dB
Video Output 1.0Vp-p, 75ohms
Operating Temperature 14°F~122°F / -10°C ~50°C
Weatherproof Yes
Power 12V DC
Power Consumption IR on Max 150mA
Dimensions (W x D x H) 3.7" x 2.6" x 2.5 "
Gross Weight 0.5lbs
Material Metal Shell

 Zmodo 8CH DVR Outdoor 600TVL Truck Camera SystemZmodo 8CH DVR Outdoor 600TVL Truck Camera System
