Help CenterTitanium Anode and Cathode for Swimming Pool
Related Products
Specifications
Titanium anode and cathode for swimming poolBase material: titanium Gr1/Gr2, ASTM B265
Coating: mixed metal oxide

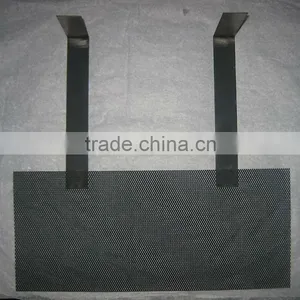

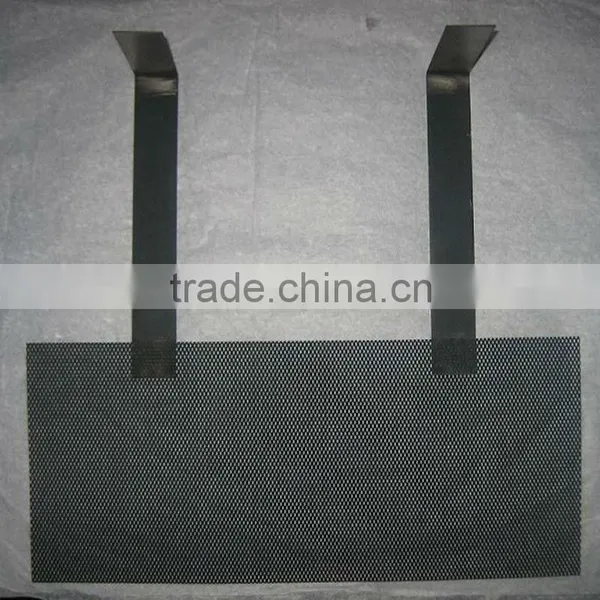

Titanium anode and cathode for swimming pool
Substrate: titanium Grade 1 and Grade 2
Coating metal: Platinum or Mixed metal of Ruthenium and Iridium.
Shape: rectangular mesh sheet
Size of mesh sheet: depends on the chlorion concentration
Working current density: <500~800A/m2
Temperature: 40~50°C
Brine concentration: about 30g/L
Titanium Anode for Sodium Hypochlorite Generator | |
Material |
Gr1 Titanium as substrate, mixed Ruthenium-Iridium-Titanium oxide or mixed Ruthenium-Iridium-Stannum-Titanium oxide as coating |
Technology |
Sand blasting, Acid washing and Brush Coating |
|
Dimension & Shape |
Different dimension and shape is available, or according to custom design/drawing |
|
Working Parameter |
Current density≤2000A/M2 Temperature<60°C Max content of Fluoride ion is 200PPM |
Working Equipment |
Sodium Hypochlorite Generator |
Working Principle |
NaCL+H2O=NaCLO+H2↑ NaClO + H2O = HClO + NaOH HClO → HCl + [O] HCl + NaOH =NaCL+H2O |
Electrolyte |
Salt water / Saline solution/ Brine/ Sea water |
Features |
High current efficiency property High catalytic property Lasting working life Light weight electrodes Keep the operating voltage stably Produce NaCLO & Chlorine high efficiency |
Applications |
Sodium Hypochlorite(NaClO) production |
Remarks |
Titanium anode also called MMO anode,DSA & Insoluble anode Cathode also be provided |
Packing |
Plastic or paper as inside, carton or plywood case as outside, or according to client's demand |
MOQ |
Flexible,small sample order acceptable |
Quality Guarantee:
(1)Main quality indicators: titanium substrate, precious metal ratio, accelerated life, coating binding force to the titanium substrate/coating adhesion
(2)With advanced technology & equipment, abundant experiences and skilled workers,during the production of Titanium Anode, each process must be strictly supervised and tested, including the surface treatment of titanium material, coating quality, coating evenness, coating binding force to the titanium substrate and so on.
(3)We have own R&D, Production and Sales department, we always struggling to supply the product with the most excellent quality and the most favorable price and supply the most efficient service.
(4)Strict Pre-delivery inspection for each order, the original Mill Test Certificate available to attach to the delivery
(5)Warmly welcome you send inquiry to us
