Specifications
Tubular iridium oxide coated anodes1.Material: Gr1 titanium
2.MMO/Ti coated anode has passed ISO9001 -2008 QC system

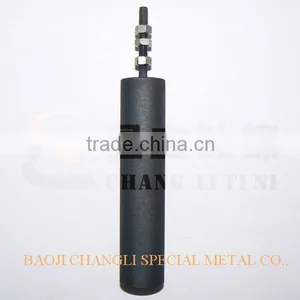

Tubular iridium oxide coated anodes
1.Material: Gr1 titanium
2.MMO/Ti coated anode has passed ISO9001 -2008 QC system
Titanium pipe anode with MMO coating substrate Standard: ASTM B338 Grade 1 or Grade 2
Specification
Diametermm |
Lengthmm |
Thicknessmm |
Weight kg |
Surface area m2 |
Life a |
16 |
1000 |
1.0 |
0.212 |
0.050 |
20 |
19 |
1000 |
1.0 |
0.254 |
0.060 |
20 |
25 |
1000 |
1.0 |
0.339 |
0.079 |
20 |
25 |
1200 |
1.5 |
0.598 |
0.094 |
20 |
25 |
1500 |
1.5 |
0.747 |
0.118 |
20 |
32 |
1000 |
2 |
0.848 |
0.121 |
20 |
1. The specification can be changed according to customer's request.
2. The current output depends on the anode dimensions, substrate, applications and design lifetime.
3. Advantages
High current output and low anode/earth electrical resistance.
The tubular anodes offer savings of 15-35% over competitive anodes on an installed cost basis.
Anode-cable assemblies are easy to handle, transport and install because of their unique flexibility.
4. Applications
As deep or shallow anode,it is mainly used for the cathodic protection of underground pipelines and other metal structure parts.
a.Large storage tank
b.Underground pipelines
c.Steel oil, gas and water pipelines
d.Pier - steel pile
e.Oil rigs
f.Regional cathodic protection
