AC Rotary Isolators

AC Rotary Isolators thumbnail-1
AC Rotary Isolators photo-1
US$ 0.1 - 1 MOQ: 300 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CMSMS
Model Number:
CMIK301
Contact Supplier Request Quote Chat Now
Zhejiang SMS Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CMSMS
Model Number CMIK301
Specification Normal
Application Home
Output Voltage (V) 220V
Load Power (W) Depend
Solar Power (W) 10W
Work Time (h) 24 Hours
Product Description



Application
The ASL4-002 DC Isolators have been specifically designed to switch Direct Current (DC) at voltages up to 1000Volts. Their robust design and ability to switch such voltages, at rated current, mean that they are ideally suited to be used in the switching of Photovoltaic (PV) systems.The DC switch achieves ultra-rapid switching through a patented ‘Snap Action’ spring driven operating mechanism. When the front actuator is rotated, energy is accumulated in the patented mechanism until a point is reached at which the contacts are fired open or closed. This system will operate the switch under load within 5ms thereby reducing the arcing time to a minimum.In order to reduce the chances of an arc propagating, the ASL4-002GL switch employs rotary contact technology. This is designed to make and break the circuit through a revolving double break contact assembly that wipes as it moves. The wiping action has the added advantage of keeping the contact faces clean thereby reducing the circuit resistance and increasing the life of the switch.The ASL4-002GL boxed DC isolators are manufactured from flame retardant polycarbonate plastic resulting in an extremely strong, reliable, safe switch. They are also supplied in an enclosure which gives plenty of space for cabling.
Key Features
IP65 rated enclosure
TUV Approval
Ample internal space for easier wiring.
Polycarbonate flame retardant plastic, UV protect
16A,25A & 32A all rated up to 1000V DC.
Unique spring loaded switching mechanism for high speed switching(5mS max).
Knife edge self-cleaning contacts for increased switch life.
Long arc chambers to help rapid arc suppression
16mm2 rising clamp terminals for easy wiring
Technical Data
Model Number ASL4-002 Standard IEC60947-3
No. of Poles 2&4 poles Rated Current 16,25,32A
IP Rating IP66 Mechanical life 104
Max Rated Operating Voltage DC 1000V Rated Short-time withstand current 8KA
Maximum cable cross sections solid or stranded 4-16mm2 Enclosure knockouts size M20/25
Maximum ambient temperature operation open -5 to +65℃ Maximum ambient temperature operation enclosed -5 to +45℃

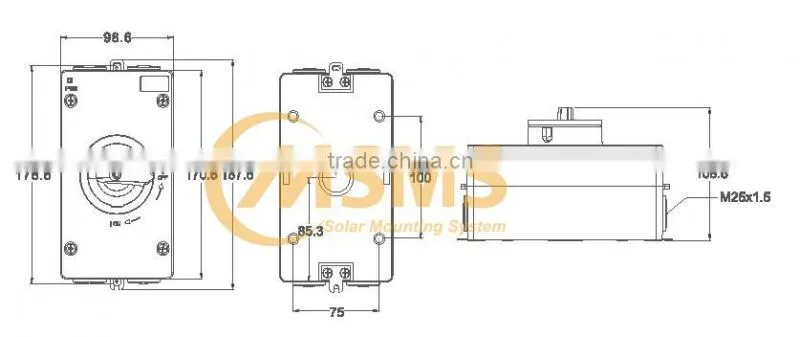

 AC Rotary isolators

Packaging & Shipping

AC Rotary isolators

AC Rotary isolators

AC Rotary isolators

Certifications

AC Rotary isolators

FAQ

1.How to buy CMSMS products?

You can directly contact CMSMS sales team by skype or email. We will respond with quick service maximum within 12 hours.

2.Can CMSMS do custom assembly or offer OEM product?

CMSMS has gained a lot of experience on OEM assembly . The product can have different size, layout, customer logos and labels. We also want to apply the experience to Industrial electrical as we have good design and engineering team. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.

3.What is the delivery time?

Usually we ship orders in 2 weeks. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

4.What is the advantages of CMSMS products.

1) CMSMS have professional and advanced equipment to produce the best price for you

2) CMSMS have a perfect R&D and Sells department to serve you anytime.

5.What are the best selling products in CMSMS ?

Solar PV System

Insulation Piercing Connector

Cold-shrinkable accessories

6.What is the main market for CMSMS?

UK Russia Israel Poland Norway Germany Dubai and so on.
