Help CenterTest Bench for Diesel Fuel Machinery Injection Pumps
Related Products
Specifications
1.easy operation2.high test precision
3.unique design
4.good quality

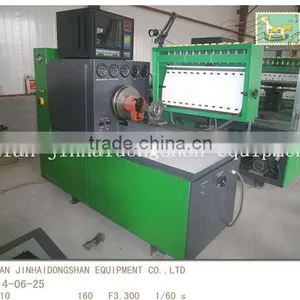

test bench for diesel fuel machinery injection pumps

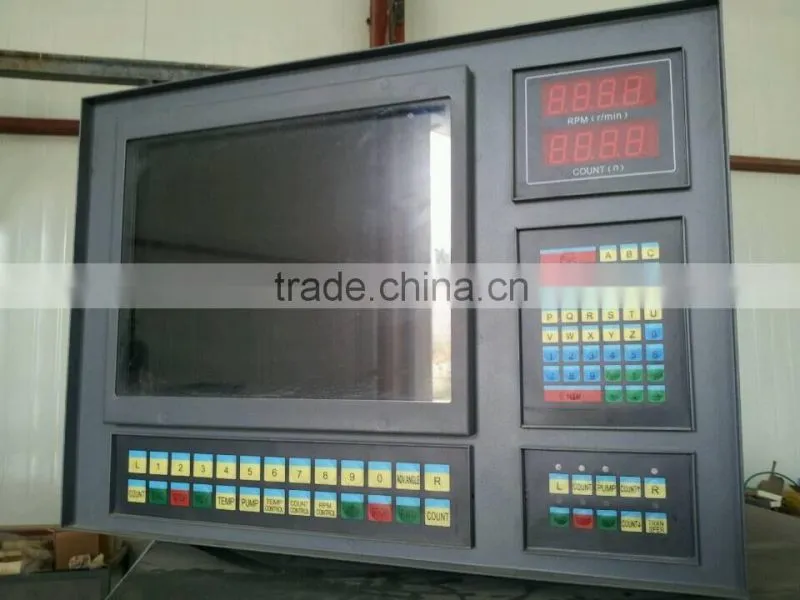

Industrial Computer Control:
rich accessories
function
1. Measurement of each cylinder delivery at any speed.
2. Test point and interval angle of oil supply of injection pump.
3. Checking and adjust the mechanical governor.
4. Checking and adjusting the distributor pump.
5. Experiment and adjusting of behavior of supercharging and compensatory device.
6. Measurement of oil return of distributing pump
7. Testing of the electromagnetic valve of distributor pump.(12V/24V)
8. Measurement of the internal pressure of distributor pump.
9. Checking of the advance angle of advance device.(on request)
Parameters
JHDS-5 Industrial Computer Type Test Bench |
7.5KW |
11KW |
15KW |
18.5KW |
||
1 |
Rotation speed range of main shaft(rpm) |
0-4000 |
0-3000 |
0-3000 |
0-3000 |
|
2 |
Motor output power(KW) |
7.5 |
11 |
15 |
18.5 |
|
3 |
Pump output power(KW) |
0.75 |
0.75 |
0.75 |
1.1 |
|
4 |
Height from center line of main shaft to work table(mm) |
125 |
125 |
125 |
125 |
|
5 |
Rotation direction of main shaft |
Positive Negative |
Positive Negative |
Positive Negative |
Positive Negative |
|
6 |
Testable cylinders of injection pump |
12 |
12 |
12 |
12 |
|
7 |
Standard model of fuel injector |
. |
||||
8 |
Oil injection count range |
0-1000 |
0-1000 |
0-1000 |
0-1000 |
|
9 |
Capacity of oil tank(L) |
>50 |
>50 |
>50 |
>50 |
|
10 |
Pressure of fuel system |
High |
0-4 |
0-4 |
0-4 |
0-4 |
Low |
0-0.4 |
0-0.4 |
0-0.4 |
0-0.4 |
||
11 |
Supply oil capacity(L/min) |
>10 |
>10 |
>10 |
>10 |
|
12 |
Temperature of fuel(°c) |
40±2 |
40±2 |
40±2 |
40±2 |
|
13 |
Precise of fuel filter(μ) |
5 |
5 |
5 |
5 |
|
14 |
Capacity of measuring cup(ml) |
45/150 |
45/150 |
45/150 |
45/150 |
|
15 |
Pressure of air way (Mpa) |
Positive |
0-0.3 |
0-0.3 |
0-0.3 |
0-0.3 |
16 |
Negative |
-0.05-0 |
-0.05-0 |
-0.05-0 |
-0.05-0 |
|
17 |
DC voltage(V) |
12/1824 |
12/24 |
12/24 |
12/24 |
|
18 |
Package dimension(m)(L×W×H) |
2.2×1.15×1.8 |
2.2×1.15×1.8 |
2.2×1.15×1.8 |
2.4×1.2×1.8 |
|
19 |
Weight(Kg) |
900 |
900 |
1050 |
1050 |
|
