75-110MM) Connect Range of machine ppr/ppr welding machine
Products Features:
Product name: |
ppr pipe welding machine |
Item No.: |
CN-031A |
Power: |
1200W |
Voltage: |
220V |
Die size: |
75 90 110mm |
G.W.: |
4.5KGS |
Specialty: |
PPR pipe welding machine with double heating element |
Packing: |
iron box, 5 sets in one carton |
Color: |
Color can be changed as you required |
Meas of carton: |
535*465*300 mm |
Content: |

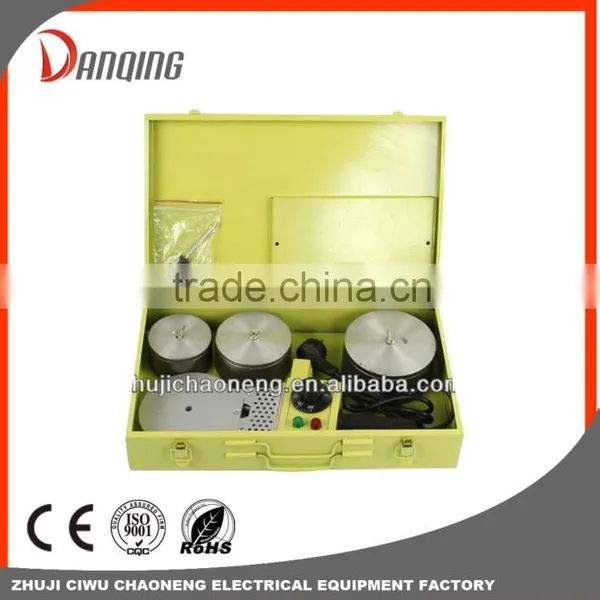

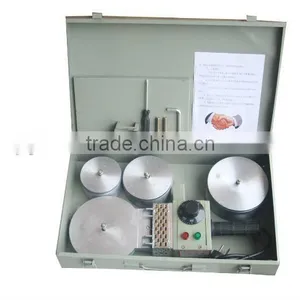

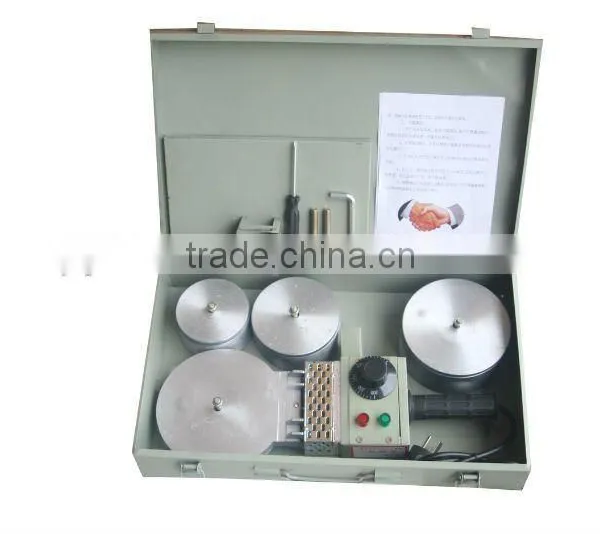

User manual,screws,screw driver,hexagonal spanners,holder,tape,spirit level,glove |
|
Loading capacity:
|
20' GP 3500 sets |
40' HQ 9400 sets | |
|
Warranty:
|
2 year for main parts
|
PPR Pipe Welding Machine Instruction for use:
1.This receives inserts the type to melt the welding machine is Φ75-110
2.The specification hasΦ20,Φ25,Φ32,Φ40,Φ50, Φ63 .Take the pipe Fixes in the left side jig, Remains according to the actual situation takes the suitable length, In fitting fixed right margin adjustable shelf.
3.Accroding the pipe’s size, Chooses the same model the mold, Left side of the hot plate lays aside the concave shape mold, Right margin lays aside the raised mold, Uses again M8×40 the screw fixes in the circular telegram hot plate,
4.the circular telegram heats up, Might adjust temperature controls moves 250±10, the red candle is bright when expresses the heating, the red candle extinguishes, the green light to be bright time then operates.
5.When the hot plate green light is bright is the operation, When fitting and tubing melting,
6.Through shakes the handwheel, carries on the welding the tubing and the fitting, after treating the size arriving, lets its heat absorption the approximately 30 seconds then.
7.The rapid withdrawal welding die head, to receives the tubing and the fitting compression cooling to the room temperature then, the welding finished.
Mold Technical | |||
Pipe size(mm) |
AU Inner Diameter(mm) |
Convex Inner Diameter(mm) |
Welt Depth(mm) |
20 |
19.8±0.30 |
19.3±0.30 |
14 |
25 |
24.8±0.30 |
24.4±0.30 |
15 |
32 |
31.7±0.30 |
31.3±0.30 |
16.5 |
40 |
39.7±0.30 |
39.3±0.30 |
18 |
50 |
49.6±0.40 |
49.2±0.30 |
20 |
63 |
62.6±0.40 |
62.1±0.40 |
24 |
75 |
74.5±0.40 |
73.9±0.40 |
26 |
90 |
89.4±0.40 |
88.8±0.40 |
29 |
110 |
109±0.40 |
108.7±0.40 |
32.5 |
