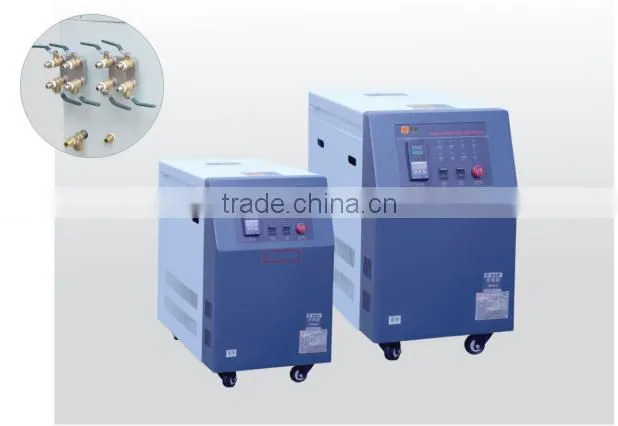

injection mold temperature controller manual
| Model | TMW-180 |
| Pump Power | 1.5kw |
| Heater | 9KW*2 |
| Pump Flow | 140L/Min |
| Pump Pressure | 3.5kg/CM2 |
| Outlet and inlet diameter | 3⁄8"*4PT |
| Size : | 800*500*690mm |
| Weight | 90kg |
Safety System :
1.Electric power's lack -phash & anti-phase Protector and its Signal Light.
2.Punch's Rolling back protector and its signal light.
3.Radiator's overload protector.
4.Buzzing alarm protector when lacking medium and its signal light.
5.Punch's overload protector and its signal light.
6.Inletting ultra-temperature protector and its signal light.
7. Special Valve type of oil measurement .Its absolutely safe in operating and maintenance.
Features:
A:The highest available temperature is 160°c
B:Improve injection mouding efficent.
1.Before forming ,TMC can automatic control temperature,can reached to the required temperature quickly,and always keep a constant temperature,reduce the time required for preheating the mold.
2.Keeps mold at correct temperatures even when machine is stopped thus eliminating start up delays in the morning or during daytime stops.
C: Improve injection moulding quality.
1Steady controlled temperatures make your plastic molding accurate in size & consistent in quality.
2.Accurate mold temperature give even plastic flow patterns .Reduce flow & weld lines ,help retain gloss appearance.Eliminate sink marks,silver streaking,delaminating,warping ect......
D.Features of the units:
1.Optional PID temperature controllers are used for accurate control of temperature within ± 1°c.
2. Two step heating select of gives rapid temperature increase control when required thus saning time & power.
