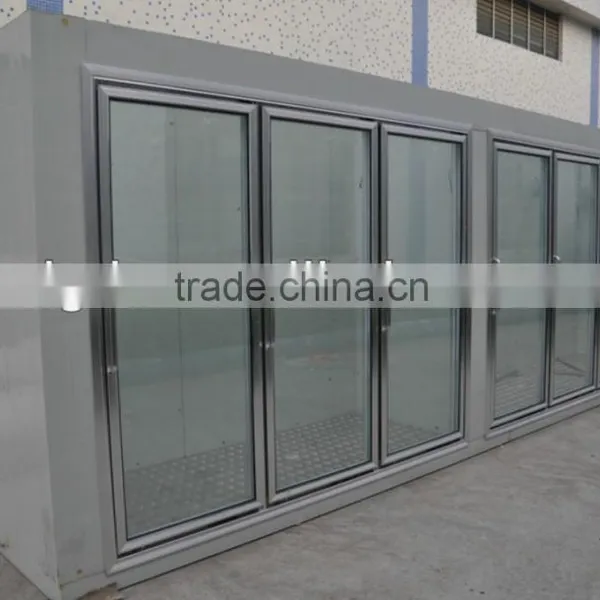

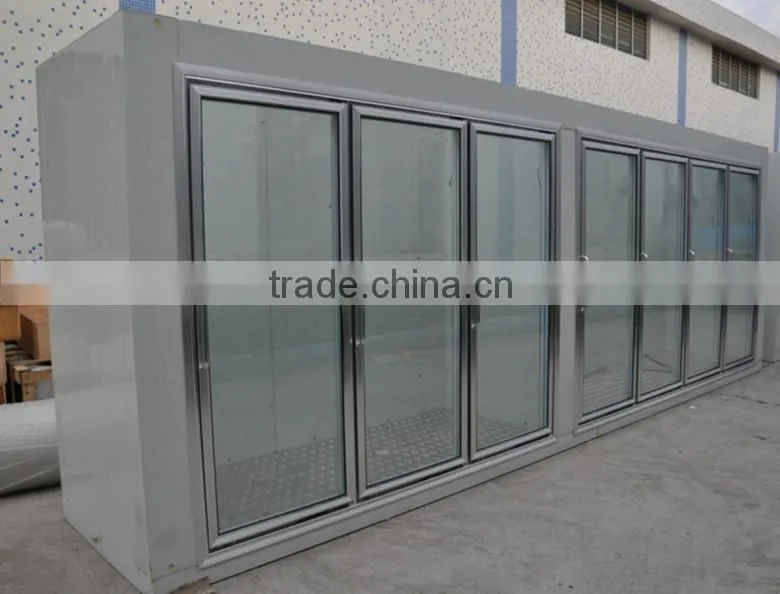

Supermarket glass door display cold room (7-door)
Dachang company has introduced and implemented ISO9001:2008 international quality management system to produce polyurethane panel and provide refrigeration equipments for 20years!!!
Feature of supermarket display cold room
1.temperature range :-18 degree C
2.size:6000(L)*1500(W)*3600(H)mm,customized size also acceptable.
ctions:quick-freezing,fire-proof are all available
4.automatic control system
5. glass display door,with light and shelves,side service hinge door
Glass door cold room related dimension:(below sizes are for reference only, can be modified to meet client's actual need)
| Glass door QTY | Cold room size (insulation 75mm) | Cold room size (insulation 100mm) |
| 2- glass door | 1800*1200*2300mm | 2000*1300*2300mm |
| 3- glass door | 2800*1200*2300mm | 3000*1300*2300mm |
| 4- glass door | 3600*1200*2300mm | 3800*1300*2300mm |
| 5- glass door | 4300*1200*2300mm | 4500*1300*2300mm |
| 6- glass door | 5000*1200*2300mm | 5200*1300*2300mm |
| 7- glass door | 5800*1200*2300mm | 6000*1300*2300mm |
| 8- glass door | 6600*1200*2300mm | 6800*1300*2300mm |
| 9- glass door | 7300*1200*2300mm | 7500*1300*2300mm |
| 10- glass door | 8000*1200*2300mm | 8200*1300*2300mm |
Component
1.panel:polyurethane insulation panel foam by high pressure,with flame retardant
No. |
Inspection item |
Unit |
Technology Inspection |
Insection result |
1 |
Density |
Kg/m3 |
32-50 |
43 |
2 |
Compressing strength (10% deformation) |
Kpa |
≥160 |
200 |
3 |
Bending stregth |
Kpa |
≥245 |
331 |
4 |
Absorbing rate |
% |
≤4 |
3 |
5 |
Heating coefficient |
W/m.k |
0.024 |
0.024 |
6. |
Average burning time(vertical) |
S |
≤30 |
3 |
7 |
Average burning height(vertical) |
S |
≤250 |
250 |
2.condensing unit:Bitzer,Copeland etc. evaporator:branded air cooler
3.Danfoss expansion valve and Dachang control box
4.Skidproof aluminum display cold room floor panel
5.other accessories:pressure relief vent,copper pipe,light and switches,drainage system etc.
LED light
Assemble the cold room in the factory
Certificate
Production Line for Cold Room Panel
DACHANG company attend the related exhibitions every year.
