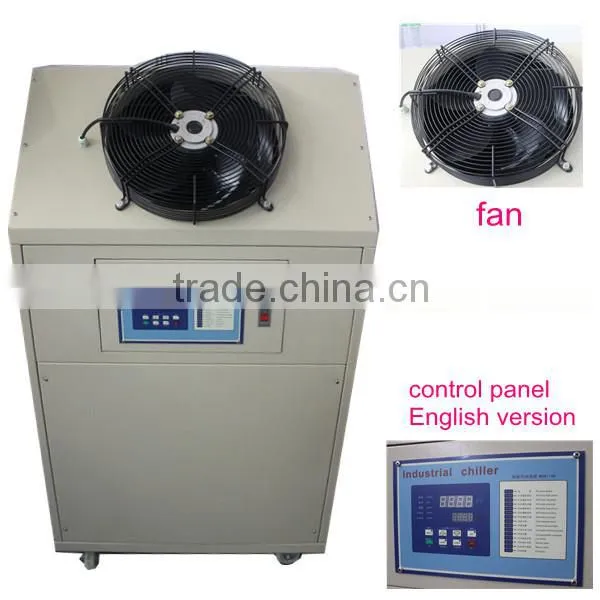

low temperature industrial water chiller
Specification of the industrial water chiller
| Water chiller model | DC-9WCSL |
| Refrigeration capactiy | 9304W |
| Working condition | 7/+35degree C |
| Temperature control range | +5~+25degree C |
| Freezing outlet water temp | -5~ -18degree C |
| Water tank | Stainless steel 304 |
| Heat transfer medium | Water |
| Refrigeration system | Water cooled/air cooled |
refrigeration capactiy conditions as below:
Temperature condition:
Freezing inlet water temp.-10degree C
Freezing outlet water temp.-15degree C
Cooling inlet water temp.30degree C
Cooling outlet water temp.+35degree C
Power:380V/400V/3phase
Working conditions:
Cooling outlet water temp. +22degree C~+37degree C
Cooling water temperature deviation:3.5~6.5degree C
Freezing outlet water temp. -5~ -18degree C
Freezing outlet water temperature deviation 2.5~7degree C
Feature of the water chiller
1. this series of product adopts key parts such as high quality scroll compressor and pumps imported from Europe, America and Japan that makes it energy-saving and durable.
2. Equipped with patent designed shel and tube condenser and evaporator with reinforced built-in spiral-helix line heating exchange copper coil.
3. Built-in over current relay, high and low pressure control, starting delay timer, ready to alarm and display if failure at any time.

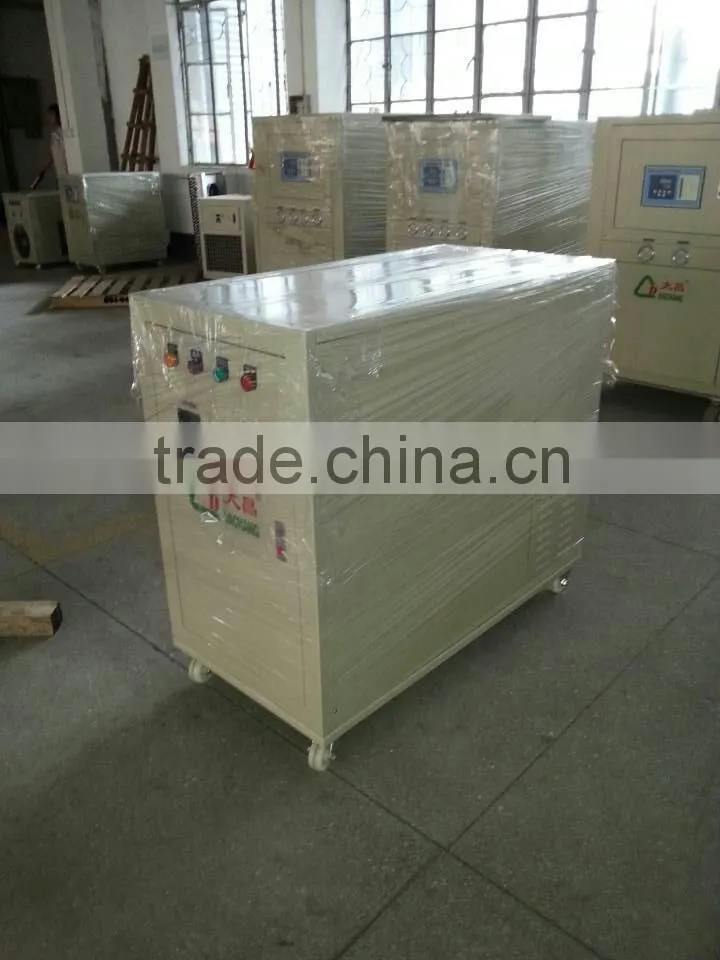

Water chillers completed packed and ready for shipment:

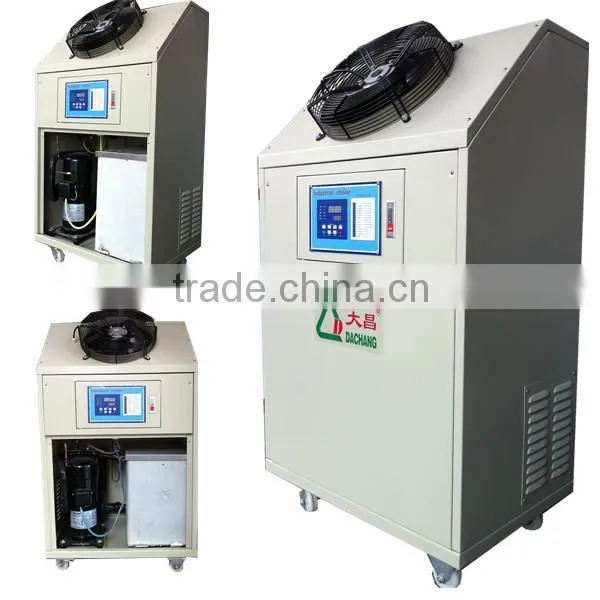

Air cooled water chiller under the production in our factory:
We also have big capacity water cooled water chiller:
Packing of the water chillers:
Bubble paper and plywood case
Dachang company is located in Dongguan,China, equiped with 30000 square meter of modern workshop and imported CUSBER and OMS production lines for polyurethane insulation panels.Dachang company adheres to the scientific production,marketing and management conception,keeps improving production technology and R&D technology, and continuous to expand our production line.Besides polyurethane insulation panel and cold room, we also produce blast freezer,water chiller, ice merchandiser etc. related commercial refrigerated products.Products are hot sale in HK,Macau,USA,Australia,Thailand,France,Netherland,Benin,Ghana,Nigeria etc., clients are very pleased with our product and service.
1. Manufacture polyurethane insulation panels,cold room,ice merchandiser,blast freezer and water chiller.
2. OEM design and manufacture cold room,ice merchandiser,blast freezer, water chiller
3. Arrange shipment
4. Provide oversea installation service
1.OEM design: Welcome!!
2.Sample order: Acceptable.
3.Trade term:FOB,CFR,CIF
4.Payment term: T/T OR L/C at sight
