new technology cool room / cold room / freezer room
new technology cool room / cold room / freezer room is a new product with various standard
dimension sizes. The storage capacity of it may be specified or selected according to customer's requirements. The storage temperature of the coldroom is displayed and controlled by digital thermostat for precise control temperature and temperature adjustment to achieve the utmost energy efficiency and perfect storage of food.
new technology cool room / cold room / freezer room features:
1.Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2.White color painted galvanized steel finish
3.Convex door,heavy duty, with safety knob inside for opening inside.It can be changed to hinge door base on customer's requirement.
4.Copeland brand compressor,durable to use,with good refrigeration.
5.Necessary parts are included.
6.Environmentally friendly refrigerant R404a
new technology cool room / cold room / freezer room
specification:
| Model | DCWF-40 | DCWR-40 | DCWF-43 | DCWR-43 |
| strorage volume | 43 m3 | 43 m3 | 43 m3 | 43 m3 |
| Exterior dimension(W*L*H) |
3549*5919*2300 mm |
3549*5919*2300 mm |
4732*4732*2300 mm |
4732*4732*2300 mm |
| Interior dimension(W*L*H) |
3349*5715*2100 mm |
3349*5715*2100 mm |
4532*4532*2100 mm |
4532*4532*2100 mm |
| Door | convex door | convex door | convex door | convex door |
|
Refrigeration/ Power |
DC-50FLG/4850W | DC-30FHG/2650W | DC-50FLG/4850W | DC-30FHG/2650W |
| Cooler /Power | DD30/500W | DL25/270W | DD30/500W | DL25/270W |
| Refrigeration unit /weight |
940*340*1240mm /110kg |
920*320*850mm /53kg |
940*340*1240mm /110kg |
920*320*850mm /53kg |
| Cooler /weight |
1330*605*630mm/ 65kg |
1580*425*465mm /49kg |
1330*605*630mm /65kg |
1580*425*465mm /49kg |
| Copper pipe and preservation | 5m | 5m | 5m | 5m |
| Power | at client's request | at client's request | at client's request | at client's request |
| Storage temperature | -18 degree | -5 degree | -18 degree | -5 degree |
| Refrigerant | R404a | R404a | R404a | R404a |
| Fitting | pressure relief vent&light | pressure relief vent&light | pressure relief vent&light | pressure |
new technology cool room / cold room / freezer room
introduction:

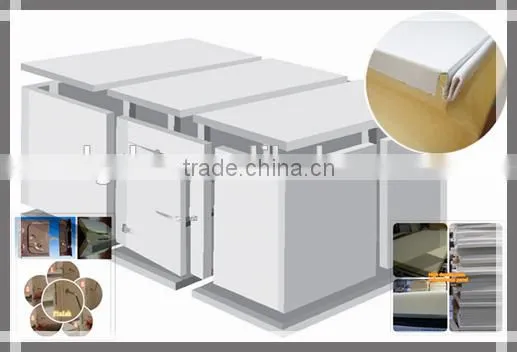

1. new technology cool room / cold room / freezer room panel
1)Panel test specification
| No. | Inspection Item | Unit | Technology requirement | Inspection result |
| 1 | Density | kg/m3 | 32~50 | 43 |
| 2 | Compressing strength(10%deformation) | Kpa | ≥ 160 | 200 |
| 3 | Bending Stregth | Kpa | ≥ 245 | 331 |
| 4 | Absording rate | % | ≤ 4 | 3 |
| 5 | Heating coefficient | W/m.k |
0.024 | 0.021 |
| 6 | Average burning time(vertical) | S | ≤ 30 | 3 |
| 7 | Average burning height(vertical) | s | ≤ 250 | 250 |
2) new technology cool room / cold room / freezer room Panel advantages:
1. Our panel foaming material is Germany Brand BASF . The whole panel average density above 43kg/m3
which enable the panel with better thermal conductivity of 0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.
2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety
problem.
3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years
4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.
2. new technology cool room / cold room / freezer room door
1) new technology cool room / cold room / freezer room Door specification
| No | Door type | Door size | Door heater voltage |
| 1 | Hinged door | 800mm W*1900mm H | 24V / 36V |
| 2 | Convex door | 832mm W*1860mm H | 24V / 36V |
| 3 | Sliding door | 832mm W*1860mm H | 24V / 36V |
2) new technology cool room / cold room / freezer room Door picture
3. new technology cool room / cold room / freezer room refrigeration unit

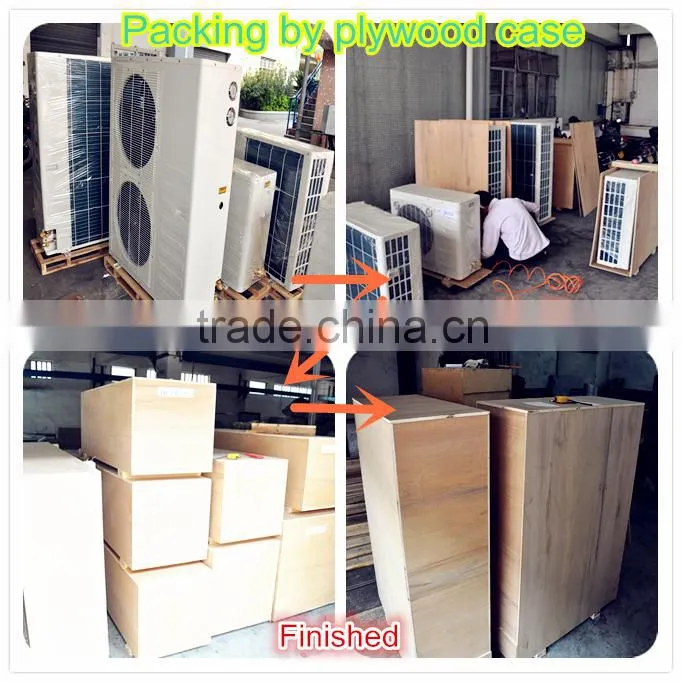

4. new technology cool room / cold room / freezer room package
5. cold storage / cold room / cold storage room with famous compressor
production procedure
new technology cool room / cold room / freezer room

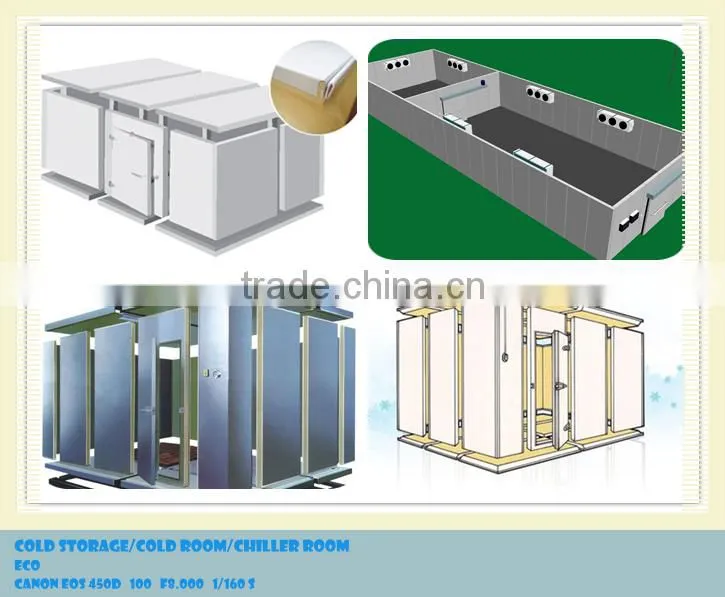

project:
new technology cool room / cold room / freezer room
exhibition:
new technology cool room / cold room / freezer room certificate:

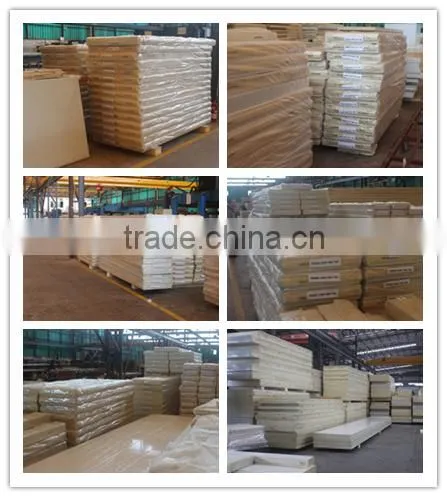

new technology cool room / cold room / freezer room Factory picture:
cold room with cam lock type panel Door work shop
cold room with cam lock type panel Production line
