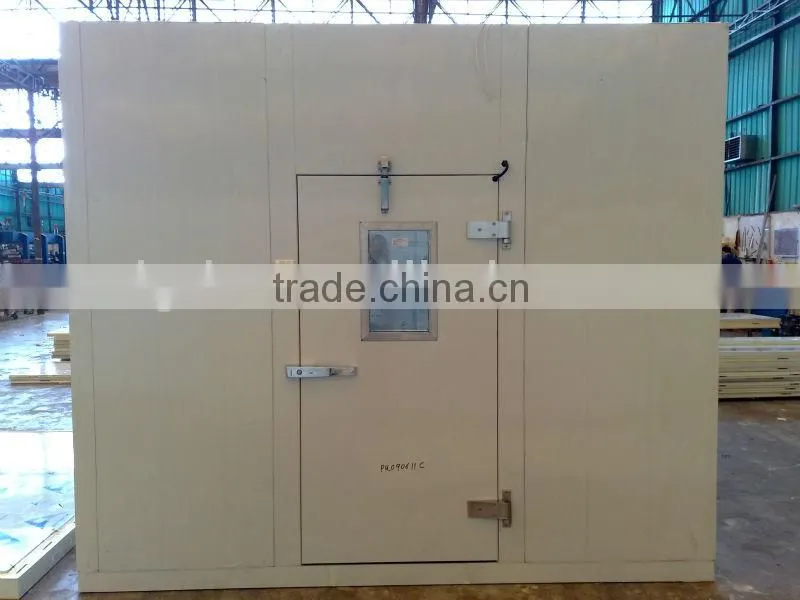

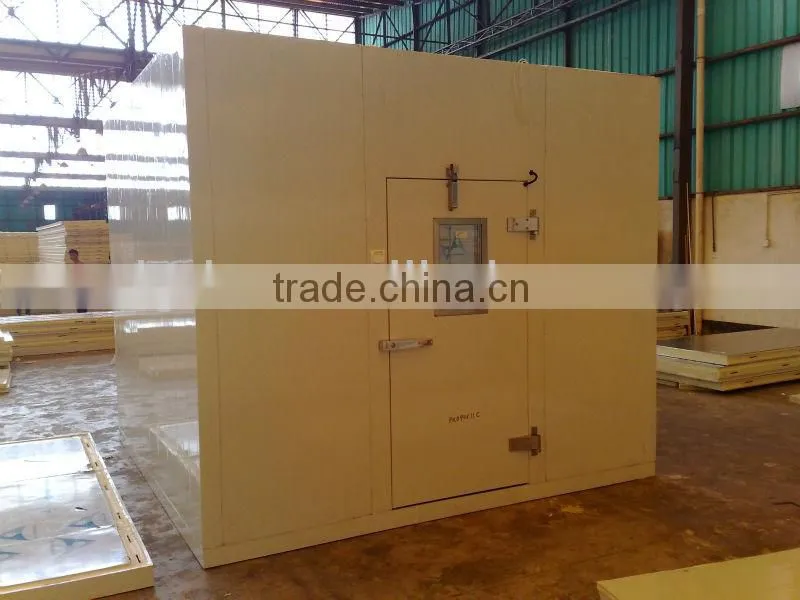

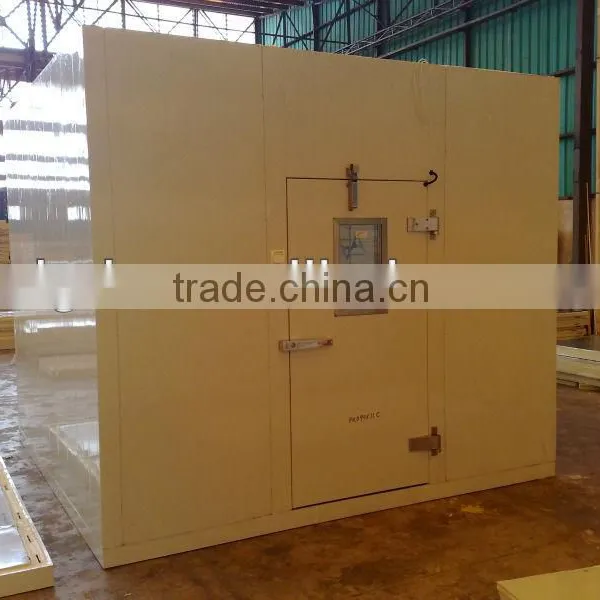

Standard walk in chiller room for grape refrigerated storage
Walk in chiller room -Specificaiton
| cold room model | DCWR-23 |
| Cold room temperature | (adjustable) pre-cooling at -1degree C, storage at -2degree C |
| Cold room capacity | 23m3 |
| External size | 3549mm(L)*3549mm(W)*2300mm(H) |
| Internal size | 3349mm(L)*3349mm(W)*2100mm(H) |
| Condensing unit | DC-20FHG with Copeland compressor, 2hp,R404a |
| Evaporator | Fin type DL15 |
| Voltage | 380V/50HZ 3P |
*Standard cold storage size,design for grape refrigerator storage

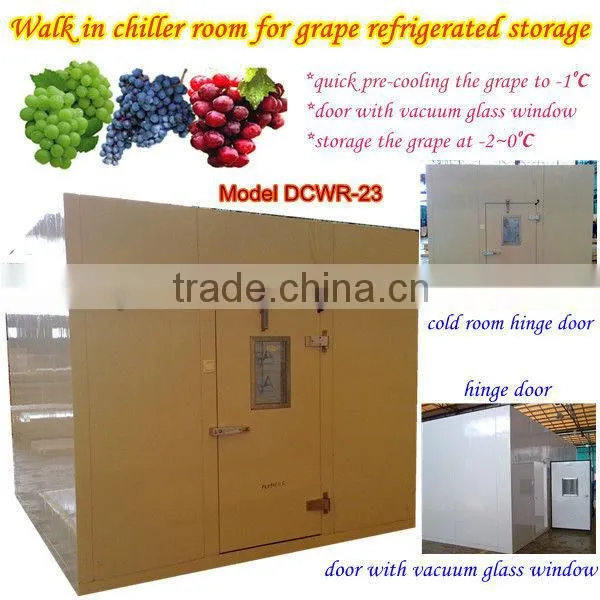

Grape cold storage room :
a pre-cooling room for grape,quick pre-cooling to -1degree C, usually the time for pre-cooing is 12hours.
2.packed the grape after precooling, then store in the cold room.
3.the temperature for grape cold room storage should be -2~0degree C adjustable.

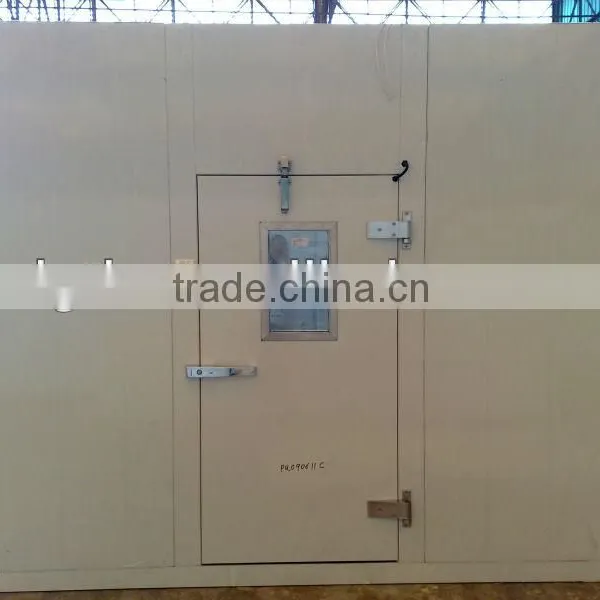

4.cold store door design to be with glass window so that worker can check the condition inside walk in cooler.
Feature of cold room refrigeration
1)Environmentally friendly foaming,polyurethane panel thickness:100mm,density about 43kg/m3,with gasket. Panels are male(convex groove) and female (concave groove) type,cam locks preburried inside the panels,use a key to fasten.
2)white color painted galvanized steel finish
3)hinge door(automatic closing) base on customer's requirement.
4)Copeland brand compressor,durable to use,with good refrigeration.Or you can choose compressor Bitzer.
5)Necessary parts are included.
6)Environmentally friendly refrigerant R404a
Dachang company: the cold storage manufacturer, customize all kinds of cold rooms and freezer rooms base on client's requirement to meet client's actual need!!
Dimension |
Length (m) *Width (m)*Height (m) |
Panel |
polyurethane insulation panel,43kg/m3, fire retardant |
Foaming material |
BASF |
Panel thickness |
50mm,75mm,100mm,150mm,200mm |
Steel cover |
stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell |
Panel connection |
cam lock type, use hexagonal key to assemble and disassemble |
Type of door |
hinge door, convex door, sliding door |
Temp.of room |
-30~+5 degree, optional |
Purpose of cold room |
fruit,vegetable,flower,fresh/frozen meat etc |
Refrigeration unit |
Copeland / Bitzer / Sanyo etc |
Refrigeration type |
air cooled / water cooled |
Fittings |
all necessary fittings are included, optional |
Place to assemble |
indoor/out door(concrete construction building/steel construction building) |
Voltage |
220V/50HZ, 220V/60HZ, 380V/50HZ optional |
Cold store door optional:
Condensing units, hermetc scroll condensing unit or semi-hermetic condensing unit, depends on the cold room temperature,cold storage capacity, ambient temperature etc.

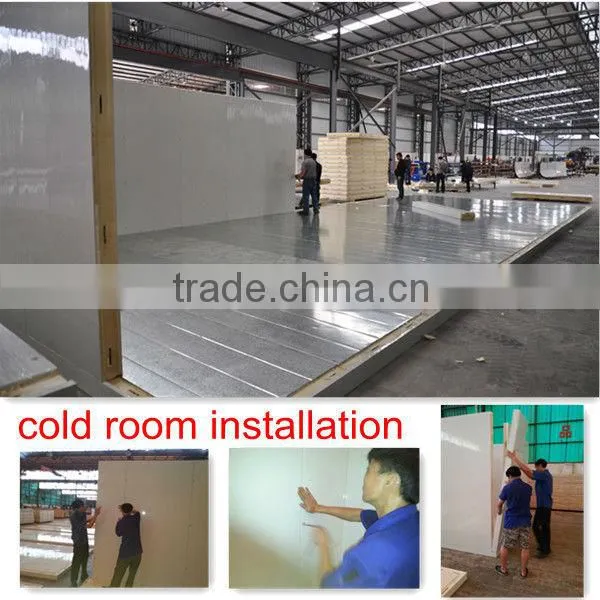

Walk in cold room cooler installation:cam lock connection, use hexagonal key to assemble, easy installation, and space saving for shipping!
Packing of the cold room polyurethane injection panels, cold storage insulation door ,refrigeration unit and cold room accessories!
Large capacity cold room plants
DACHANG company provide the pefect solutions to the modular cold room for 20years !
DACHANG company attend the related exhibitions every year.
