Help CenterHP-6C Continuous Edibl And Olive Oil Bottle Filling Machine
Related Products
-
RP200 Microcomputer Control Syrup And Honey Stick Filling MachineUS$ 630 - 1,200MOQ: 1 Set -
RP200 With Mobile Workbench Manual High Viscosity Liquid Filling MachineUS$ 830 - 1,570MOQ: 1 Set
-
3-IN-1 Pure Water And Mineral Water And Carbonated Drink Filling MachineUS$ 14,600 - 75,000MOQ: 1 Set
-
KF2000P Screw Metering Manual Small Powder Filling MachineUS$ 4,000 - 6,500MOQ: 1 Set
-
KFG50 Semi-Automatic Grain And Granule Filling Machine/Racking MachineUS$ 900 - 1,650MOQ: 1 Set
1. Specifications
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Machine name |
Continuous Edibl And Olive Oil Bottle Filling Machine |
Model |
HP-6C |
Metering methods |
Pistons quantitative |
Filling container |
Arbitrary shape |
Filling range |
25-250ml, 50-500ml, 100-1000ml, 250-2500ml, 500-5000ml |
Filling speed |
100-250 per head (bottles / hour) |
Filling heads |
1-8 head (Optional) |
Filling precision |
≤2% |
Air pressure |
0.4-0.6Mpa |
Voltage |
220v/50hz |
Power |
1000w |
Dimension |
6000*1400*1500mm (For Reference Only) |
Weight |
150kg (For Reference Only) |
Note: Due to the escalating changes edibl and olive oil bottle filling machine, the above technical parameters for reference only, to prevail in kind, please understand!
2. Basic Introduction
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
- Overview
>Continuous edibl and olive oil bottle filling machine for pure water, milk, edible oil, beverage, oil, liquid, chemical products and other liquid quantitative filling.
>This edibl and olive oil bottle filling machine with piston metering, adapted to a variety of bottles, linear continuous, adjustable speed, accurate measurement, functional and adaptable.
>Contact with the materials are made of stainless steel, disassembly is simple, easy to clean, with food hygiene requirements. Filling volume and filling speed adjustment is simple, with no bottle no filling function.
>The edibl and olive oil bottle filling machine according to customer requirements increase or decrease the number of filling head, to adapt to different production.
3. Feature
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
♦ Digital display, directly set the filling volume. MCU program control, the drive speed filling line.
♦ Well-known brand of electrical and pneumatic components, the failure rate is low, stable and reliable performance, long life.
♦ Contact with the materials are made of stainless steel, disassembly is simple, easy to clean, with food hygiene requirements.

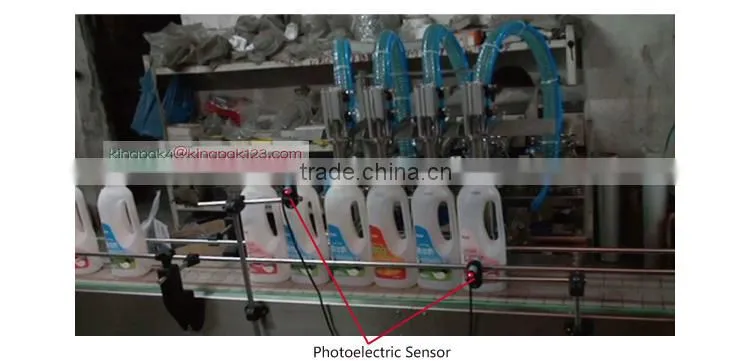

♦ Filling volume and filling speed adjustment is simple, with no bottle no filling function.
♦ Filling nozzle with anti-drip device to ensure that the filling without drawing, does not drip.

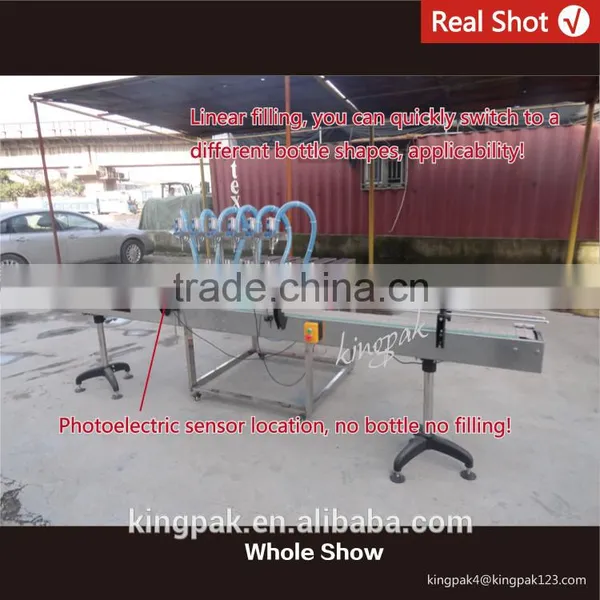

♦ No replacement parts, you can quickly adjust the replacement of different shapes and sizes of bottles, applicability.
♦ According to customer requirements and can be installed Bottle capping unit.

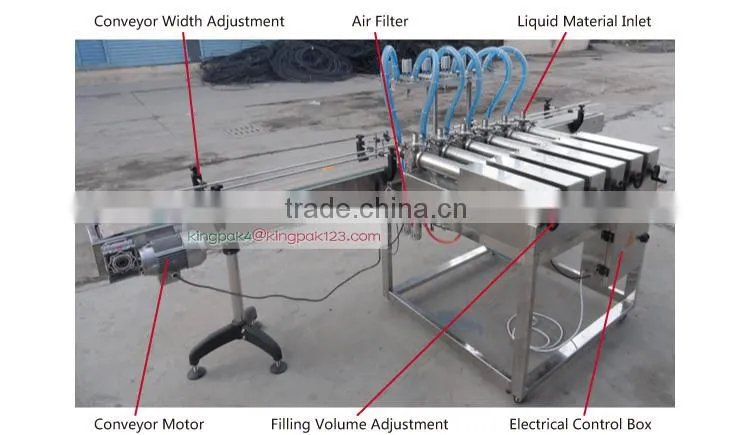

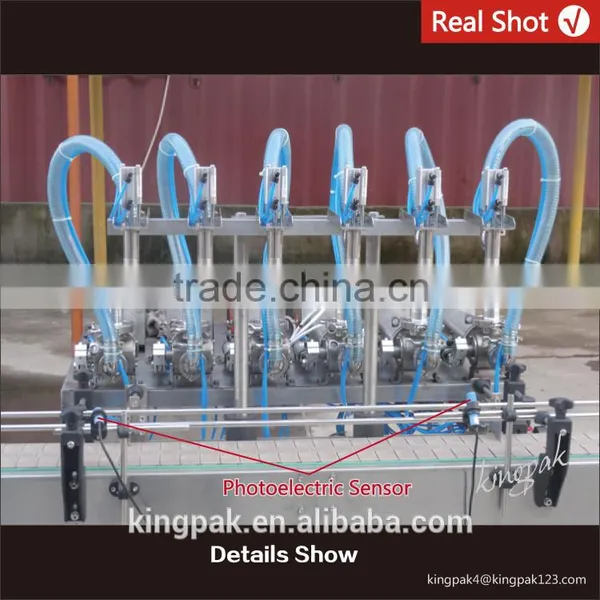

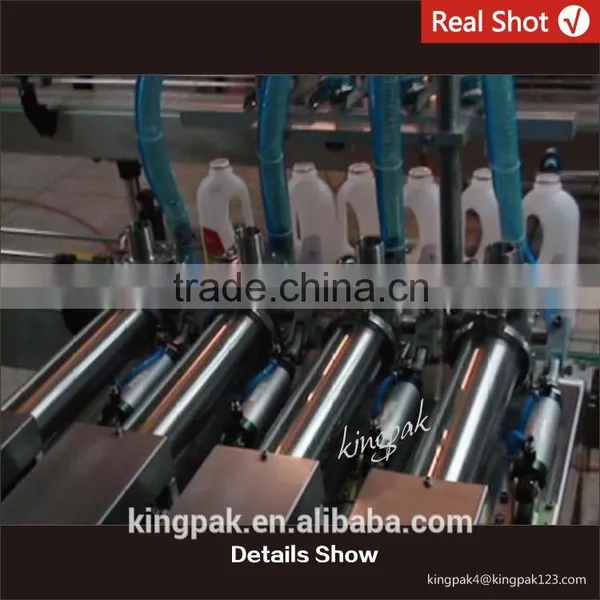

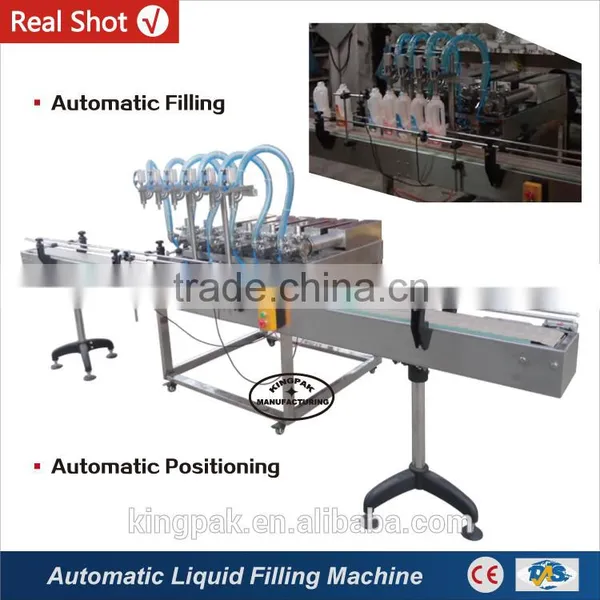

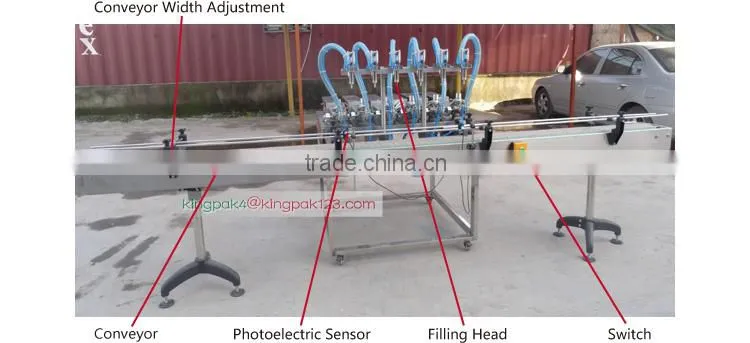

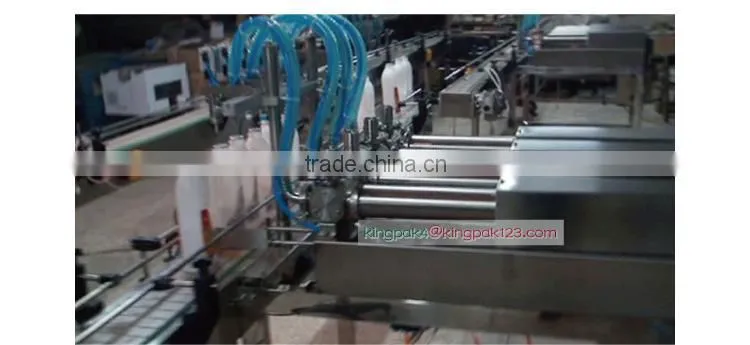

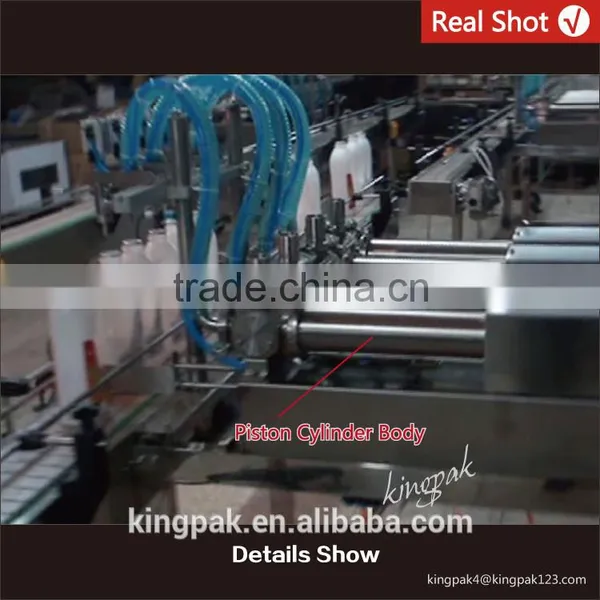

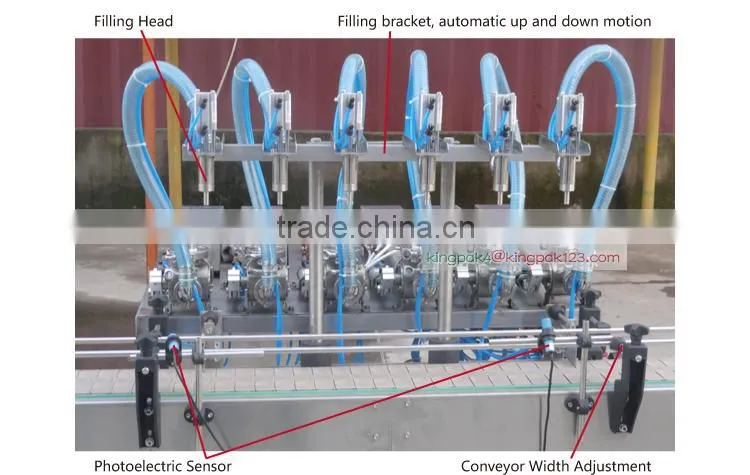

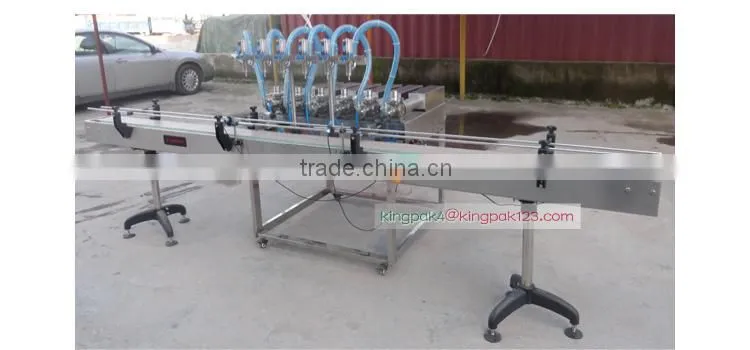

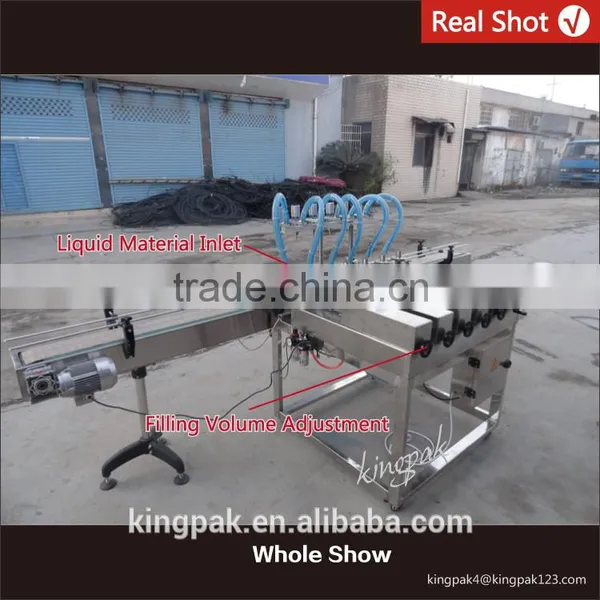

4. Whole&Details Show
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
All the products before delivery should be tested by assemble&debugging engineer, wiped up and cleaned,then wrapped by stretch film to protect it from moist. The precision part need to flexible package. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory.
All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading&uploading, the upward mark will be posted on the wooden case.
Packaging details: Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety.
Shipping methods:
1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, FEDEX, UPS Etc
