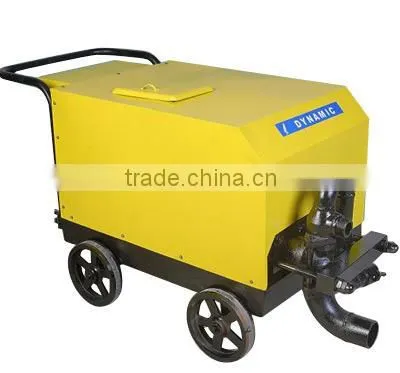

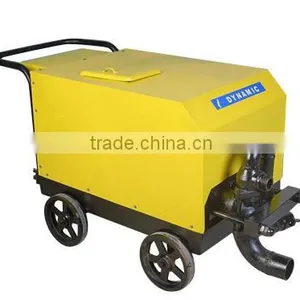

Mortar Pump/construction machineryUB4/UB8 type pump is a new multipurpose construction machine on the basis of absorbing international advanced technology. Mortar can be transferred to the location
directly by the tube. It helps to cut off the lost in the way of traditional
transportation. It can finish vertical and level transportation of mortar, which
is used for ordinary construction and Masonry structure's surface, inside and outside
wall's surface and roof. It is used for grounding and spraying coating in
the tunnel tap. In the metallurgy department, it is used for service blast furnace
or other equipment. For industrial department, it is transfer the pulpy material
or something else. For foundation program, it could improve the foundation
and prevent the pressure leakage. For agriculture hydraulic engineering, it can
strengthen the dam, driven the well in the sandy soil and strengthen the wall of
the well. Our pump has some merits such as higher transportation, longer flat haul,
smaller trans-pulse, well construction, and easy operation.
Specification
| Model | UB4 | UB8 |
| Transmit quantity | 4cubic meters/hours | 8cubic meters/hours |
| Vertical transmit | 60m | 80m |
| Lever transmit | 300m | 400m |
| Motor rev | 2900r/min | 2900 |
| In pipe diameter | 64mm | 64mm |
| Working force | 40kg/cm2 | 60kg/cm2 |
| Piston frequency | 86times/min | 86times/min |
| Power | 7.5kw | 11kw |
| Out pipe diameter | 51mm | 51mm |
| Weight | 460kg | 500kg |
