Ground screw based mounting system solar ground mounting structure
1. Specification for Solar Mounting System
Installation Site: |
open ground |
Components: |
battery components for any size |
Structural materials: |
aluminum, stainless steel |
Survival wind speed: |
60 m / s |
Design snow pressure: |
1.4 KN / m2 |
Component direction: |
vertical |
Design Standards: |
AS / NZS 1170 |
Life: |
Design Life for 25 years, quality assurance for 10 years |
2.Features of SunRack ground screw based mounting system solar ground mounting structure
Easy Installation: The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kit.The SolarRoof system is aided by a very high level of pressembly.The G-Screw module and unique rail extension method allow greatly reduced installation times.
Great Flexbilitity: With the Sunforson Solar Roof,frammed photovoltaic modules can be easily mounted on pitched roofs.The Solar Roof system has mounting accessories designed for use on almost every roof cladding available wiht unique rail .Excellent Compatibility.Designed as a unversal racking system,framed modules from all the popular manufacturers can be used.
High Accuracy: Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
Excellent Adaptability: The height adjustment of the rails from Sunforson allows a level PV array to be established,no matter how uneven the roof.Engineered To High Standard Sunforson SolarRoof is made to the highest standard,safe and strong its designed to Comply with AS/NZS 1170.
Maximum Lifespan: All components are made of quality extruded aluminium and stainless steel.The high corrosion resistance guarantees the maximun possible lifespan and is also completely recyclable.
Guaranteed Durability: Sunforson provides a guarantee of 10 years on the durability of all components used.

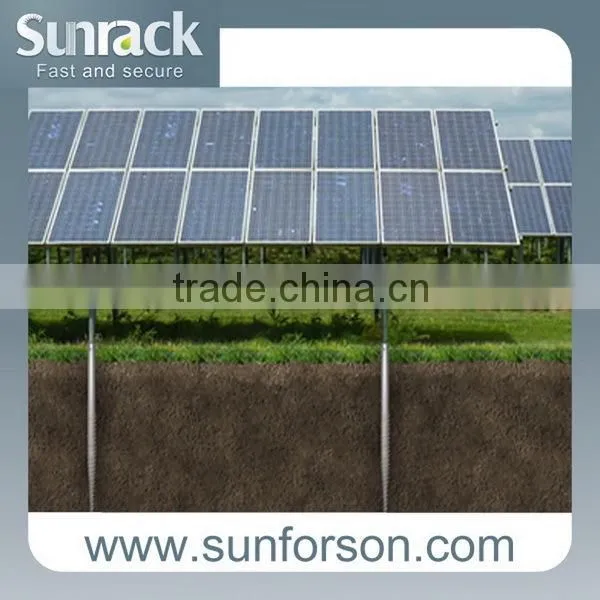

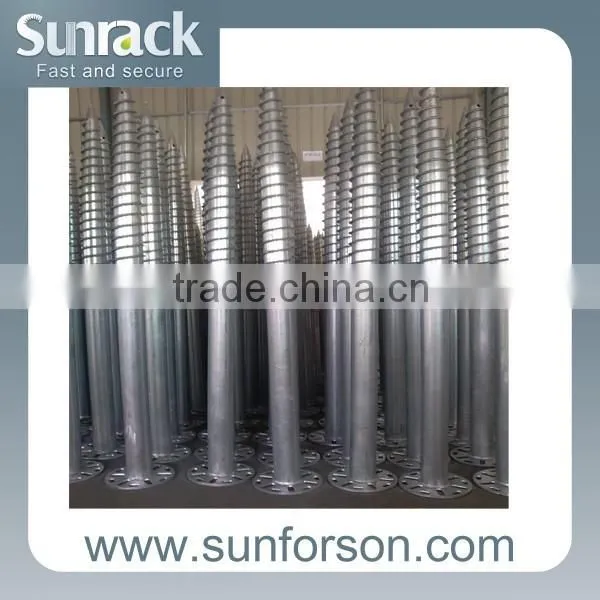

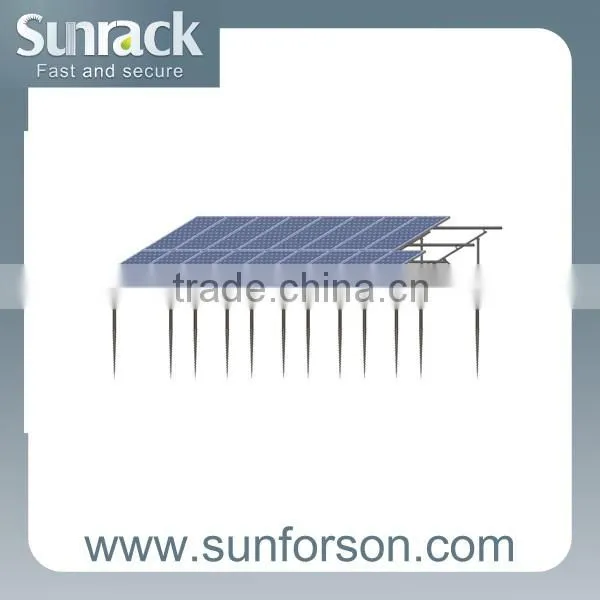

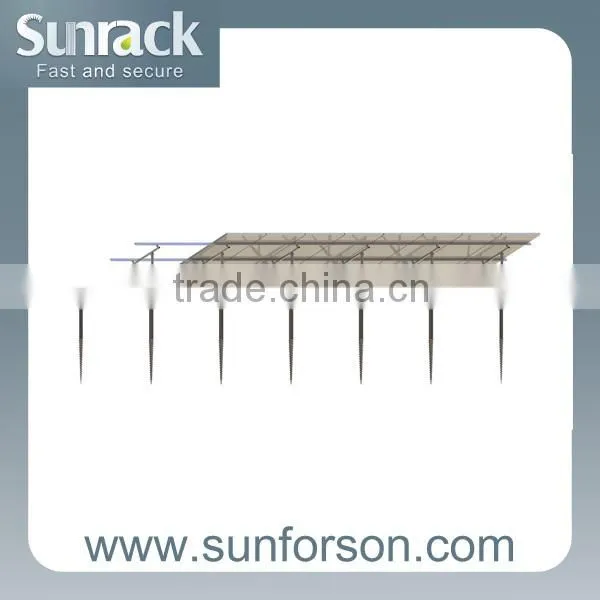

3.Photos of Ground Solar Panel Mounting
4.Package for pv mounting structure
5.Certification for PV Installation
6.Sunforson Factory
