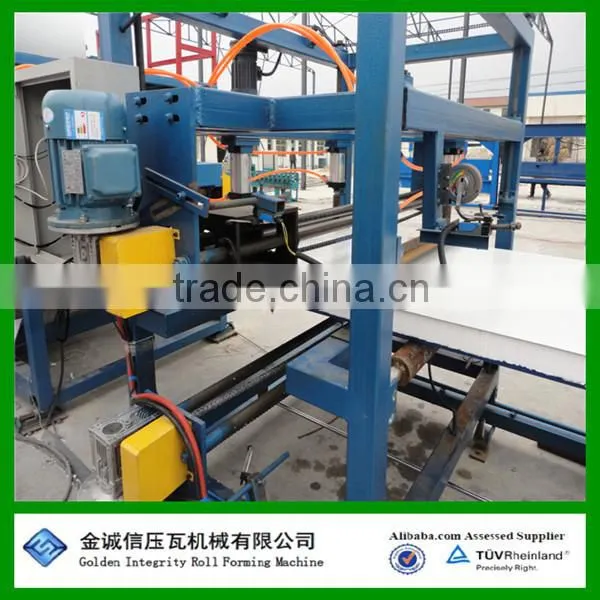

EPS sandwich panel roll forming machine,sandwich panel making machine,sandwich panel roll forming machine
1. General performance of the line
1) Material thickness: 0.3-1.0mm
2) Material width: max 1250mm
3) Core material: EPS board/Rockwool Board
4) Line speed:3-6 m/min
5) Power supply: 380V/ 50Hz/ 3Phase
6) Total power: 45kw
7) Dimension: about 40m*2.2m*2.8m
8) Product width: 1000mm/ 1200mm
9) Product thickness: 50-200mm
10) Annual output: 600,000 m2
2. Working flow
1) Decoiling: feeding of the material for bottom metal strip.
2) Roll forming: producing the bottom metal strip for roof or wall panel.
3) EPS feeding table: placing the middle part of the sandwich panel.
4) Dripping glue onto the top and bottom metal strip.
5) Heading the strips for better adhesion of glue.
6) Rolling edges of the strips.
7) Connecting parts and roll forming together.
8) Make slot (milling cutting to cut the extra parts of EPS) of panels for specific length.
9) Confirming length.
10) Cutting adjusted by PLC.
11) Runout table.
Each production line can produce 5 types’ panel, including 2 types H inlay wall panel, 2 types butt joint wall panel, and 1 screw panel .
1) Screw panel with EPS: 960, 970, 980,choose one type from them for each line.
Raw material Width of Upper layer:1200mm
Raw material Width of down layer: 1000mm
EPS/rock wool sandwich wall panel production line
4.Advantages of theEPS sandwich wall panel:
1)lower price and best quality
2)waterproof and Fireproof
3) 3.The advantage of the rock wool sandwich wall panel:
4)high strength
5)Durable
6)Heat insulation and Sound insulation
7) Energy-saving and Most area-saving
8) Environmental protection
5.Application:
it is widly used as roofing material for steel structure plant, gym, Supermatet ,commercial and civilian facilities.
Service
Delivery time:within 30 days
Productivity:50 sets per year in stock
Payment:T/T,30% after signed the contract,70% after checking and accepting before delivery
Product warranty:12 months,we provide technical support for whole life
Welcome to contact and visit us.Waiting for your cooperation sincerely.
