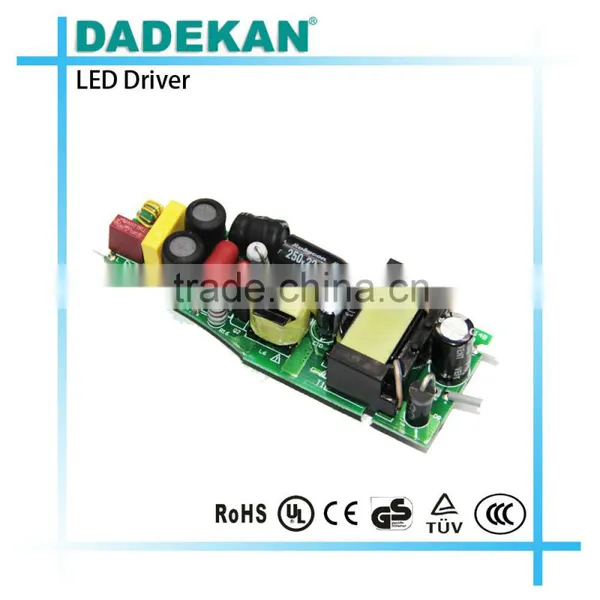

Product Name: Dimmable LED Driver
MODEL |
TG-15A1-LA1720-066-AS |
|||
|
Input
|
Input Voltage |
100VAC~127VAC |
||
Rated input voltage |
120VAC |
|||
Start-up Voltage(-25~70℃) |
100VAC |
|||
Frequency Range |
60Hz |
|||
Power Factor(@25℃) |
>0.90@120VAC, Full Load. |
|||
AC Current (@25℃) |
0.25A Max. |
|||
Inrush Current (@ 25℃) |
50A Max. |
|||
|
Output
|
Output Voltage Range |
17V~20V |
||
Output Current |
660mA;±5% |
|||
Output Power |
12~15W |
|||
Conversion Efficiency (@25℃) |
80% @120VAC, Full Load. |
|||
No-load Output Voltage |
35V Max. |
|||
Line Regulation (@-25~70℃) |
±5%@120Vac,60Hz |
|||
Accuracy Constant(@-25~70℃) |
±5%@120Vac,60Hz |
|||
Set-up Time(@25℃) |
<1S@120VAC, |
|||
Temperature Coefficient(@-25~70℃) |
±0.03%/℃ |
|||
Overshoot (@-25~70℃) |
±5% No-load Rated Voltage. |
|||
Output Ripple & Noise |
0<Ta≤70℃ |
<2VP-P |
||
-25≤Ta≤0℃ |
/ |
|||
|
Protection (-25~70℃)
|
Input Electrical |
Low Voltage Protection |
/ |
|
Over Voltage Protection |
/ |
|||
Output Electrical |
Shorted Circuit Protection |
Hiccup, Auto Recovery. |
||
No-load Protection |
Constant Voltage. |
|||
Over Temperature Protection |
/ |
|||
|
Environmental Requirement
|
Vibration |
10~25Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z, axes. |
||
Impact |
20G/11mS pulse,3times at each X, Y, Z axes. |
|||
Storage Temp. & Hum. |
-20℃~70℃; 10%~90%RH No condensing. |
|||
Operating amb. Temp. & Hum. |
-10℃~50℃; 20%~90%RH No condensing. |
|||
Altitude |
3000m |
|||
IPX |
/ |
|||
|
Dielectric Strength (Hi-Pot)
|
Isolation Resistance |
Input--out: 50M OHMS. |
||
Withstand Voltage |
Input--out: 2KVAC/5Ma. |
|||
Ground Impedance |
/ |
|||
Other |
Dimensions (L * W * H) |
81.6mm X 30mm X 25mm;±1mm |
||
Package |
/ |
|||
Cooling Method |
Ventilation Cooling. |
|||
Reliability |
Burn-in |
The power supply shall go a minimum of 4 Hours burn-in test under full load condition. |
||
Design MTBF |
50,000Hrs @25℃, MIL-HDBK-217 Method 2 Components Stress Method |
|||
Design electrolytic capacitor life |
17520Hrs @50℃ Full load and units continuously working. |
|||
Note |
1. Measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1 uF & 10uF parallel capacitor. 2. Test spare parts: test voltage for 500 VDC, 65% RH @ 25 ℃. 3. The SPS is considered a component which will be installed into final equipment. The equipment must be re-confirmed that it still meets EMC directives. |
|||
|
Minimum Negative Load Requirements |
None |
|||
Accessories |
/ |
|||
