Flame Laminating Machine

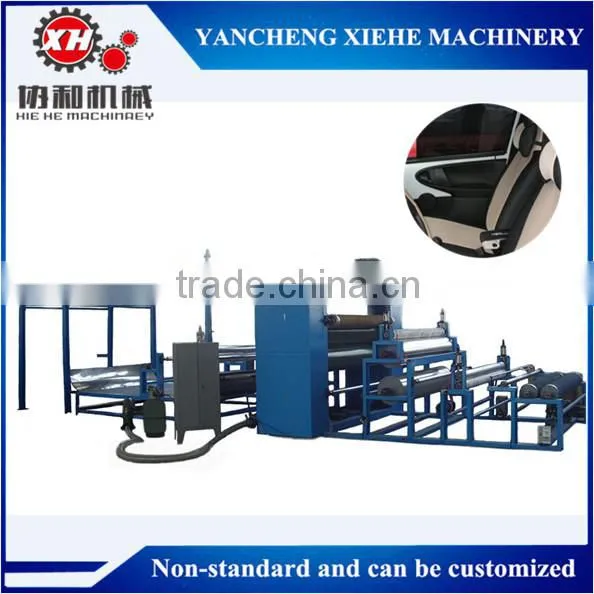

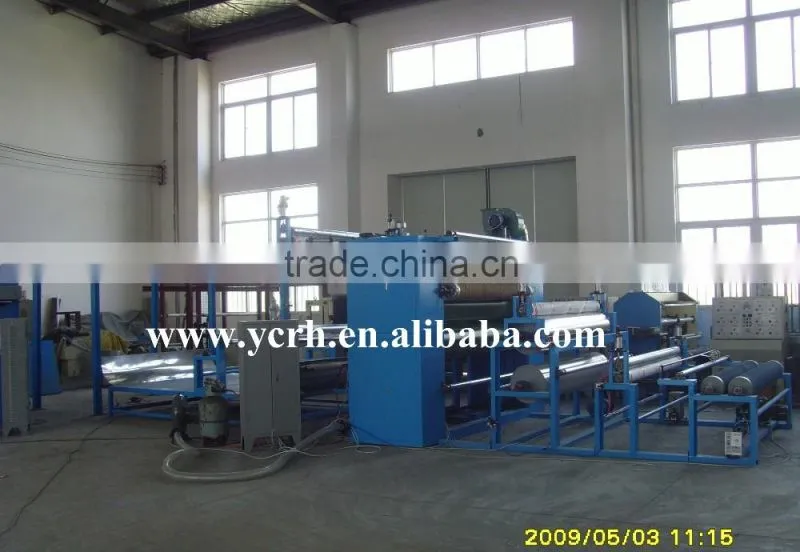

Real Picture:
Usage:
It can be used to compound sponge with fabrics and none-woven products. It is widely used in automotive upholstery industry.
Features:
1.Use sponge itself or hot melt sponge as the adhesive for two layers of materials. It’s especially suitable for compounding lint, Suede Fabric. This machine can get products good uniformity, comfortable handle, resistance to water washing and dry cleaning.
2. It is equipped with automatic cloth-extending device, automatic material feeding device, automatic edge checking device, automatic tension control system.
3. It is an ideal machine for volume-producing. The suspension type refrigeration system with constant tension ensures a better quality of compound products.
Technic Specification:
| 1. | Width of raw material | 2000mm (can be customized) |
| 2. | Fuel gas | LPG,NG |
| 3. | Combustion volume | 2.5-3.5m3/min (gas mixture) |
| 4. | Total power | about 15 Kw |
| 5. | Designed speed | 10-60m/min |
| 6. | Weight of complete machine | about 3500kg |
| 7. | Dimension (L*W*H) | about14920*3300*2800mm |
Our World-wide customers:
One year warranty period after the installation. Technical personnel will be assigned to the customer side for installation and setting up, including on site layout of equipment, pipe and line arrangement.
Welcome to contact us and visit our company !
