Specifications
Tubular hydro turbine generators1)Sinple structure and durable
2)Easy to intall and operator
3)Rust proofing

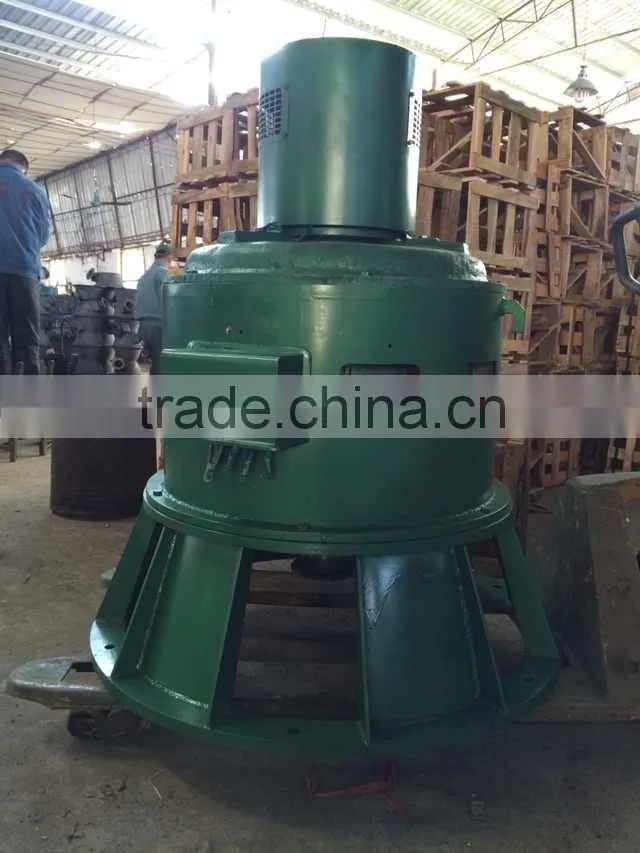

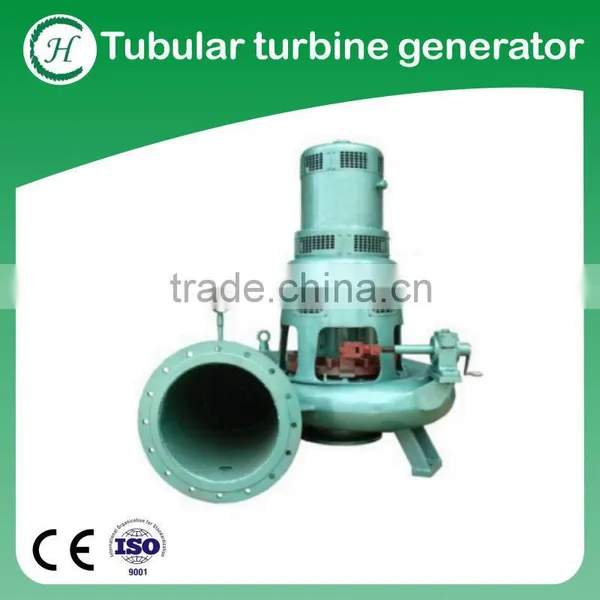

Tubular HydroTurbine Generator units
Tubular hydro turbine is applicable for the hydropower station with strong and low hydraulic head,
the applicable hydraulic head is commonly from 4 to 25m.The structure is simple,maintenance is easy. It has been widely used at plains and the tidal power generation of coastal areas.
The Advantages Of Tubular HydroTurbine Generators
Because of the horizontal-axis type and simple flow channel design, compared with the same scale turbine, there are many advantages.
1) The building projects of tubular turbine is less about 20%
2) The efficiency is more than about 30%
3) The electrical equipment budget saving about 15%.
4) Because the construction is convenient, construction period is short.
The parameter of tubular hydro turbine generators
| Output power (KW) | Rated head (m) | Rated flow (cbm/s) | Roter speed (RPM) | Pipe diameter (mm) |
| 20 | 4 | 0.64 | 750 | 500 |
| 25 | 5 | 0.72 | 750 | 500 |
| 30 | 5.5 | 0.75 | 750 | 500~600 |
| 35 | 6 | 0.78 | 1000 | 500~600 |
| 40 | 6.5 | 0.82 | 1000 | 500~600 |
| 45 | 7 | 0.85 | 1000 | 500~600 |
| 50 | 7.5 | 0.88 | 1000 | 500~600 |
| 55 | 8 | 0.91 | 1000 | 500~600 |
| 60 | 8.5 | 0.93 | 1000 | 500~600 |
| 70 | 9 | 0.96 | 1000 | 500~600 |
| 75 | 9.5 | 0.99 | 1000 | 500~600 |
| 80 | 10 | 1.01 | 1000 | 500~600 |
| 85 | 10.5 | 1.04 | 1000 | 500~600 |
| 90 | 11 | 1.06 | 1000 | 500~600 |
| 100 | 11.5 | 1.09 | 1000 | 500~600 |
| 105 | 12 | 1.11 | 1000 | 500~600 |
| 110 | 12.5 | 1.13 | 1000 | 500~600 |
| 120 | 13 | 1.15 | 1000 | 500~600 |
| 125 | 13.5 | 1.18 | 1000 | 500~600 |
| 135 | 14 | 1.2 | 1000 | 500~600 |
| 145 | 14.5 | 1.22 | 1000 | 500~600 |
| 150 | 15 | 1.24 | 1000 | 500~600 |
| 155 | 15.5 | 1.26 | 1000 | 500~600 |
| 165 | 16 | 1.28 | 1000 | 500~600 |
The packing of tubular hydro turbine generators
