4m Vertical hydraulic wheelchair lifter machine
Hydraulic wheelchair lifter machine adopts new material-aluminium Alloy, which made the lift
to be light weight, more durable and easy installation. It can easily lift the person and wheelchair with
the capacity 250kg or more you need.
Hydraulic wheelchair lifter consists of a platform with guard plate, drive tower, automatic or stationary
ramp and operating controls. It is assembled well before shipment, so after recepit, very easy installation.

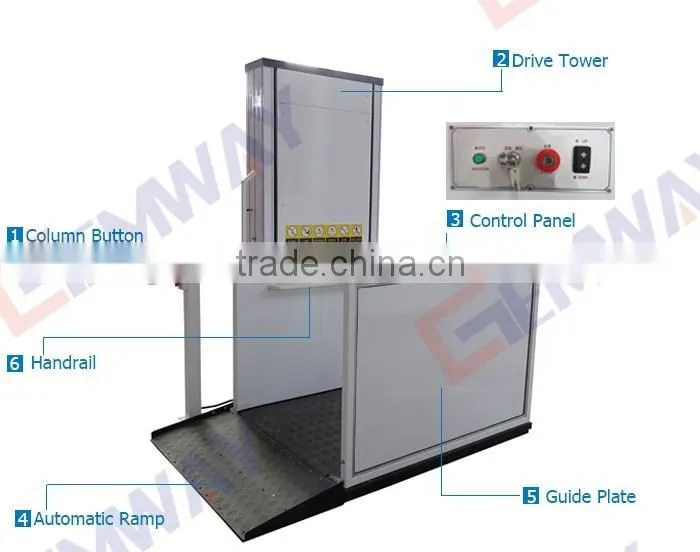

Hydraulic wheelchair lifter Parts
1. Column button: It is fixed on the ground and upper floor for the user easy operation with “UP”, “Down” and E-Stop button.
2. Drive tower: The platform will go up by climing the drive tower, it contains pump station, hydraulic cylinder.
3. Control Panel: Apart from “UP”, “Down” and E-Stop button on it, there is still with keys, when no use,
we can lock the lift.
4. Handrail: When the users enter into the platform, they can hold on it for safety when lifting up and down.
5. Automatic ramp: When the platform off the ground, it will fold up automatically to ensure the users safety.

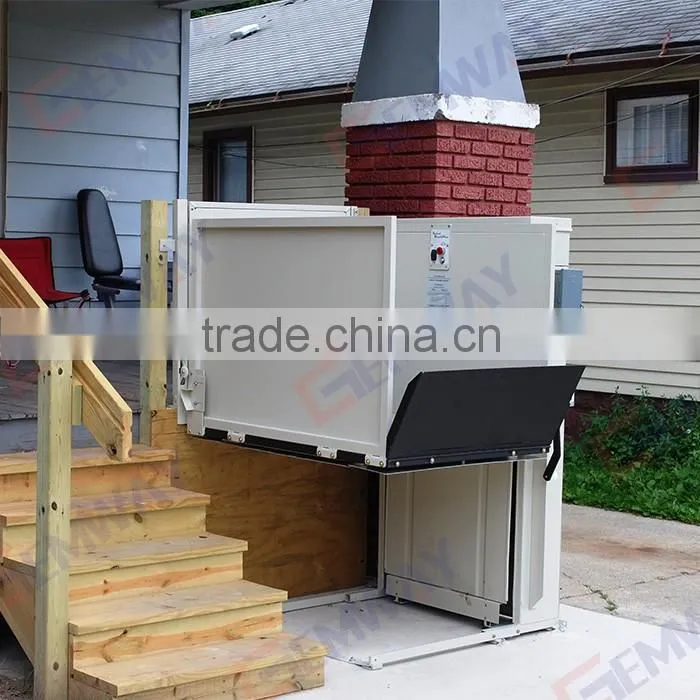

Vertical wheelchair lifter offers wheelchair users the opportunity to move freely within a
multi-floored building while taking the wheelchair with them so they are fully independent between floors.
Model |
Lifting height |
Load capacity |
Platform size |
Self weight |
Manual Door |
VPL-1 |
1000mm |
250kg |
1430*900mm |
350kg |
Yes |
VPL-2 |
2000mm |
250kg |
1430*900mm |
550kg |
Yes |
VPL-3 |
3000mm |
250kg |
1430*900mm |
780kg |
Yes |
VPL-4 |
4000mm |
250kg |
1430*900mm |
880kg |
Yes |
VPL-5 |
5000mm |
250kg |
1430*900mm |
1000kg |
Yes |
VPL-6 |
6000MM |
250kg |
1430*900mm |
1100kg |
Yes |
SHANDONG GEM MACHINERY CO., LTD factory was founded in the year 1999 and started the production
of scissor lifts, cargo lifts, dock ramp and so on. After years development, GEMWAY has manufactured many
new lifts such as towable boom lift, wheelchair lift, electric scissor lift and so on. All the products are
manufactured under the standard of CE certification.

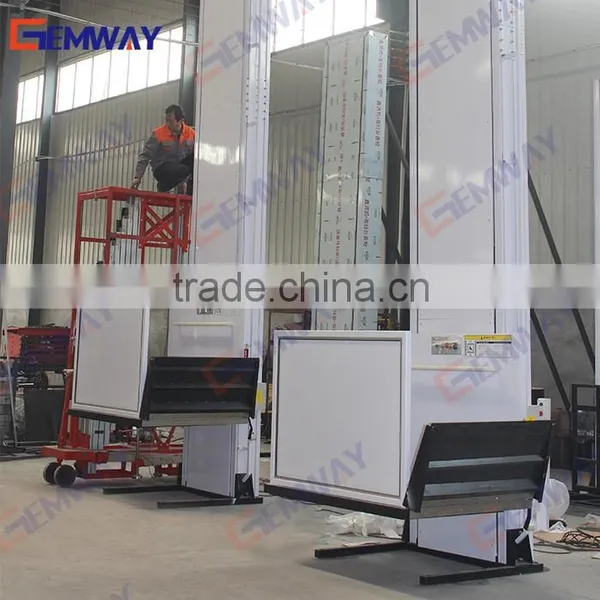

Each month, GEM machinery is visited by many customers from different countries. They coming for test
our lifts, plants, designs and place the order in the office after negotiation. Welcome you to come and test
GEMWAY lifts in person.
