Automatic Reballing Machine BGA Rework Station(SV650)

Automatic Reballing Machine BGA Rework Station(SV650) thumbnail-1
Automatic Reballing Machine BGA Rework Station(SV650) photo-1
US$ 1 - 6,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle Star
Model Number:
SV550
Contact Supplier Request Quote Chat Now
Shenzhen Shuttle Star Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Shuttle Star
Model Number SV550
Voltage 220V
Current 20A
Rated Capacity 5000W
Rated Duty Cycle 100%
Dimensions L850*W750*H630
Weight 60kg
Usage BGA Rework, Reballing machine BGA rework station
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

Shuttle star automatic reballing machine BGA rework station design to repair Xbox, PS3/4, laptop, mobile phone motherboard and any other smt component on PCB. Its compact design and and automatic soldering and desoldering function help you repair BGA quickly.

It's the right choice no mater your are a small business owner or a large manufacture.



Feature SV650
  • Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the auto soldering and mounting function
  • Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature can be displayed digitally on touch screen
  • Upper heater is movable, convenient for operation
  • Large movable bottom IR heating area, PCB clamps can be adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550*500mm
  •  Powerful cross flow fans cool the bottom heating area rapidly with stable speed

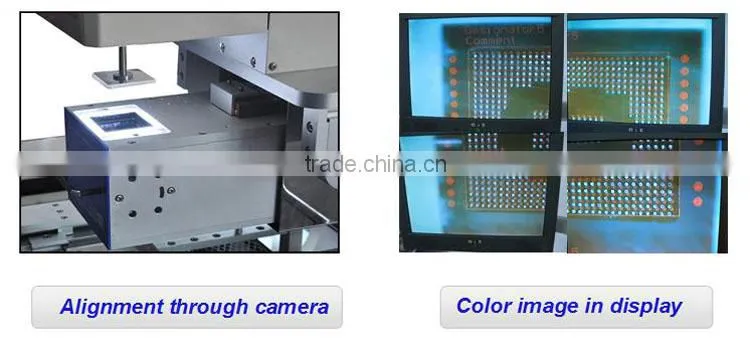

  •  Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration detection device; with auto focus and software operation function, 27 X optical focus, able to rework BGA sized up to 70*70mm
  •  Embedded industrial computer, touch screen interface, PLC control, real-time profile display, able to display set profile and 5 practically tested profile at the same time; can analyze the five practically-tested profiles
  • Color LCD monitor
  • Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable
  • 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is unlimited in the industrial computer
  • Suction nozzle can identify material and mounting height automatically, and can control the air pressure within a small range of 30-50g
  • Equipped with different hot air nozzles, easy to replace and able to locate in any angle

Automatic reballing machine BGA rework station(SV650)

Standard Accessories
Item Qty.
BGA Reball Kit(BK98D)     ×1set
Stencil/Mask       ×33pcs
Solder Paste/Flux    ×1tin
Leaded Solder Ball(0.45, 0.5, 0.6mm)      ×1tins
Upper Nozzle(five for upper, two for bottom)      ×7pcs
PCB Clamp for Laptop Motherboard     ×1set
Temperature Measurement Wire    ×1pc
High Temperature Cloth    ×1pc
Hex Key Wrench-set    ×1pc
Aluminum Plate    ×1pc
Packaging & Shipping

Packaging: Standard Wooden Case with Machine fixed inside

Delivery: Delievery within 1 week after get payment

Automatic reballing machine BGA rework station(SV650)

Our Services
  • 1 year warranty
  • We offer free training on operating personnel and service within the warranty
  • We free lifelong training for maintenance, if any question, assistant videos are also provided in after-sale service
  • Under warranty, we send spare parts to the customer and afford all the cost and freight if any spare part is broken
Company Information

Shenzhen Shuttle Star Technology Co., Ltd. is one of the earliest professional BGA rework station manufacturers in China. Ever since founded in 2000, the product structure and performance are improved constantly according to the market demand and the product series has covered the from high-end to low-end and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
