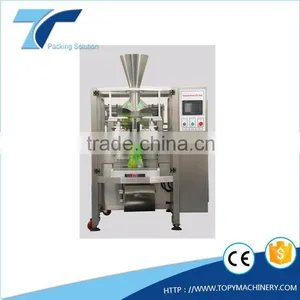

TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine thumbnail-1
TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine thumbnail-2
TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine thumbnail-3
TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine thumbnail-4
TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine thumbnail-5

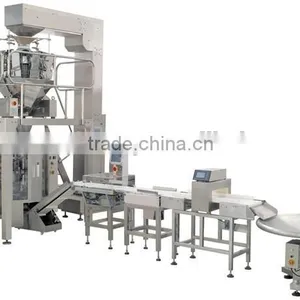

TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine thumbnail-6
TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine photo-1
TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine photo-2
TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine photo-3

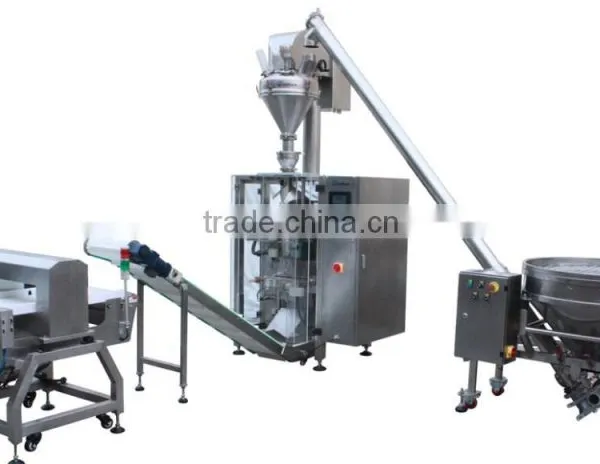

TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine photo-4

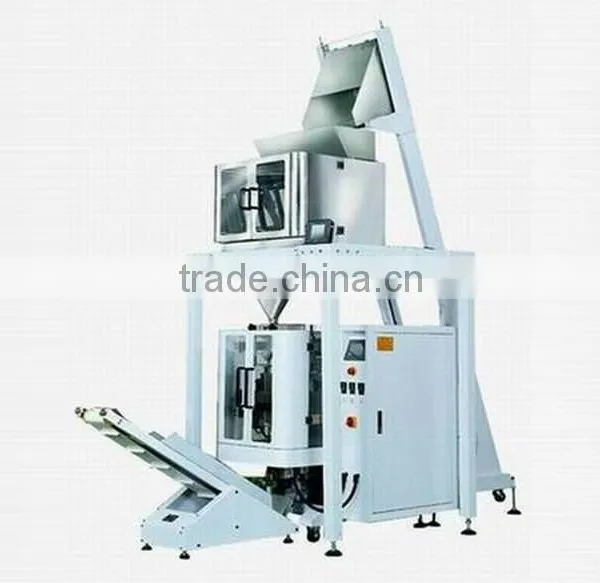

TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine photo-5

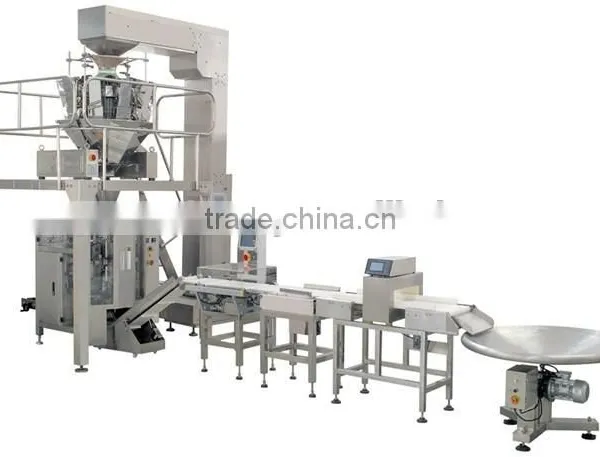

TOPY-VP500/600 Automatic Vertical Pouch Making Packing Machine, Automatic Packaging Machine photo-6
US$ 15,000 - 17,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Application:
Food
Packaging Type:
Cartons
Contact Supplier Request Quote Chat Now
Foshan Top Y Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Food
Packaging Type Cartons
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 4KW
Place of Origin Guangdong, China
Brand Name TOP Y MACHINERY
Model Number TOPY-VP500/600
Dimension(L*W*H) (L)1550*(W)1160*(H)1480mm
Weight 720KGS
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine



Application

Suitable to pack coffee bean, sugar, salt, spice, potato chips, puffed food, jelly, pet food, snacks, gummy, etc.

TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machineTOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machineTOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine

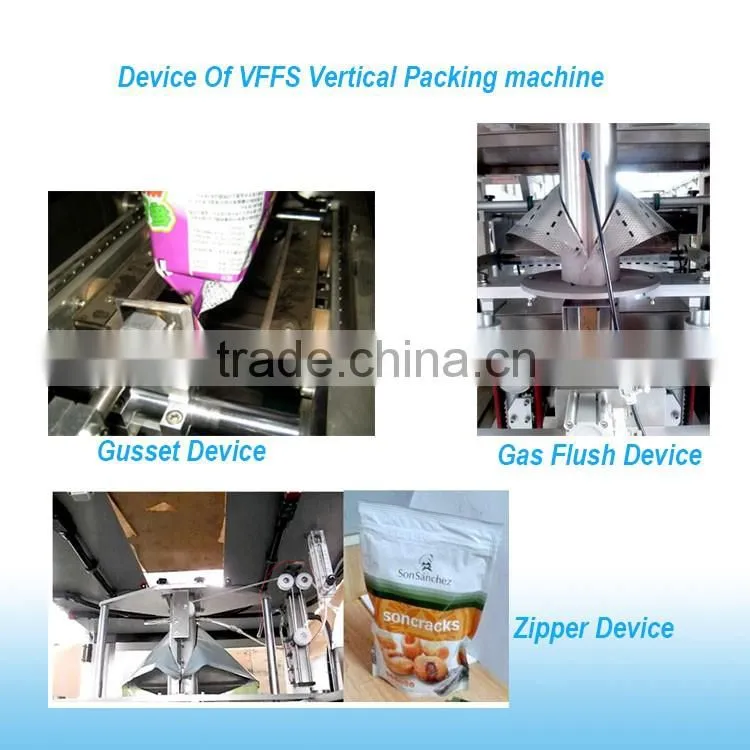

Optional device

Filling nitrogen/air flush device, air expeller, pouched slot or hole, tear notch, gusseted device, punching jaws, chain bag device, PE film device, venting device, material stopper and so on

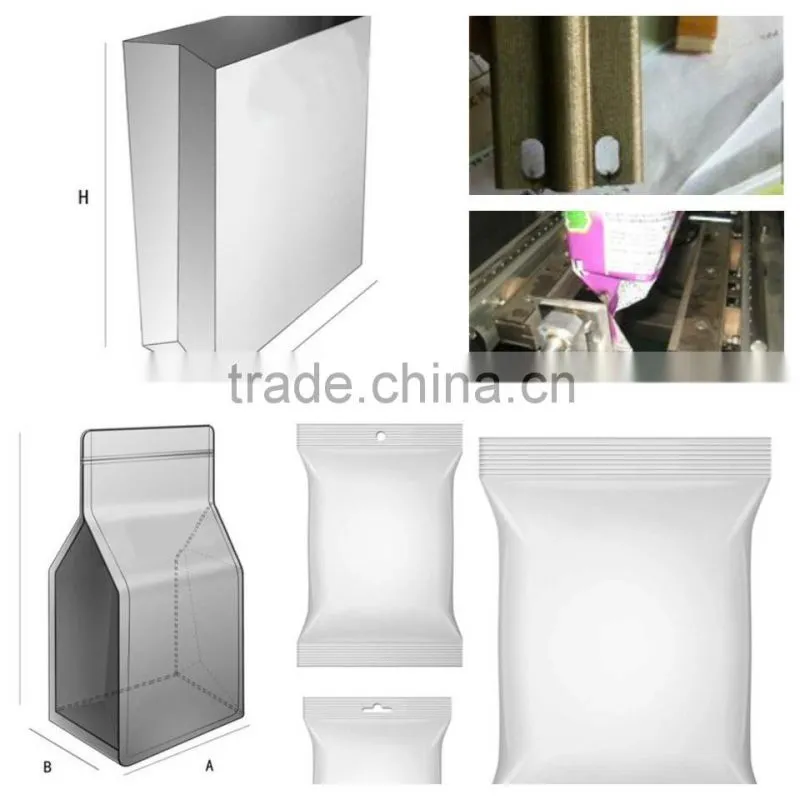

Bag Type

Pillow bag, Gusset bag, Chain bags, Hole Punch Bag

      TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine



Product Description



TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine



1. Construction: Stainless steel
2. Film pulling: Servo+ double belts
3. End Seal: Pneumatic or Servo to be chose
4. Photocell Sensor: Banner or Sick
5. Date Printer: Hot Stamp Type
6. Safety: Safety Switch & Relay in Door (Optional)
7. Control system: Touch Screen with Mitsubishi PLC
8. Film Reel: Max Outer Dia.400mm, Max Diameter 75mm core



a)     Horizontal Sealing Jaw is Driven by Pneumatic Component;

TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine

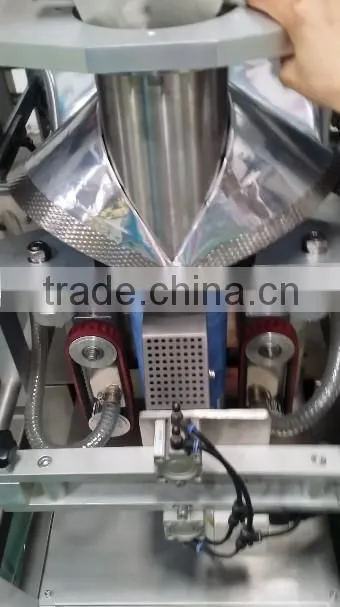

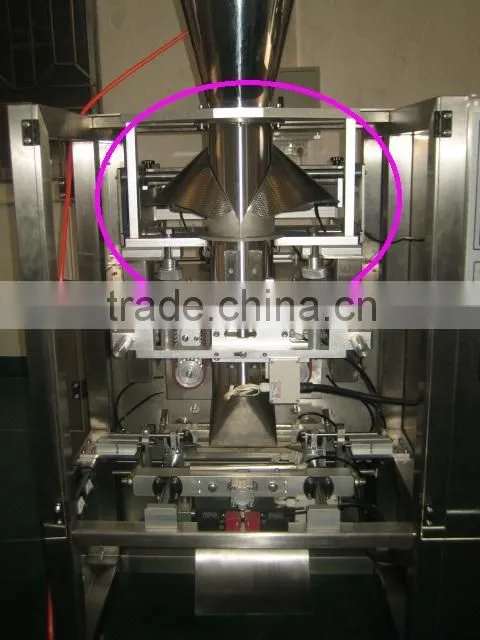

b)    Dual Servo Belt Pulls down the Film;

TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine

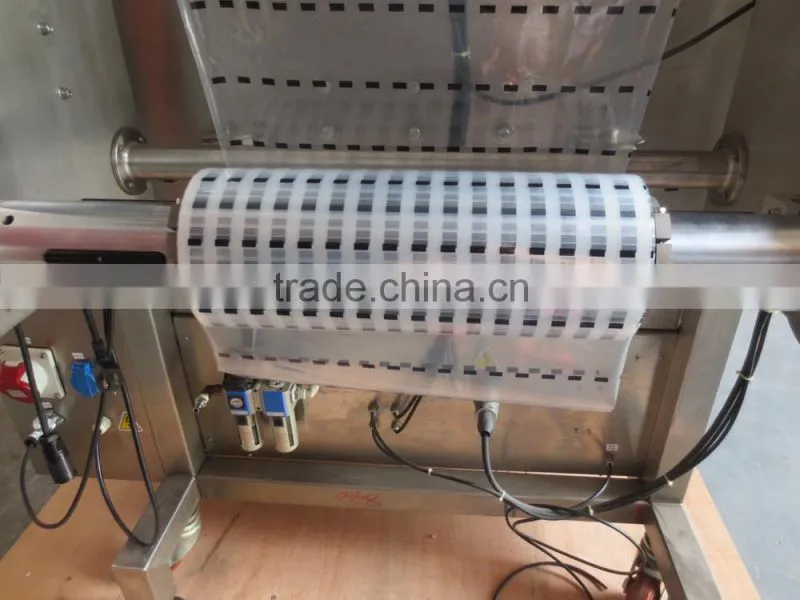

c)     Easy Film Change and air shaft

 TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine



Model No.

TOPY-VP500

TOPY-VP600

Max.Film Width

500mm

600mm

Max. Bag Width

240mm

290mm

Speed

Up to 50BPM

Up to 50BPM

Film Thickness

0.04-0.08mm

0.04-0.08mm

Electricity Consumption

AC 220V, 4KW

AC 220V, 4KW

Air Consumption

0.6Mpa, 0.4 CBM/min

0.6Mpa, 0.4 CBM/min



 TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machineTOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machineTOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine

production process

 TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine

Certifications

 TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine

Packaging & Shipping

 TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine

FAQ

 TOPY-VP500/600 automatic vertical pouch making packing machine, automatic packaging machine
