Specifications
1.High Viscosity Stainless Steel Mixer2.Wall Putty mixer
3.high wear resistance
4.vacuum,cooling &heating system can be made
High Viscosity Stainless Steel Mixer, Mixer Agitator, Complex Mixer,
Mixing Machine, Mixing Equipment, Stailness Steel High Viscosity Compound Mixer, Wall Putty Mixer
Introduction

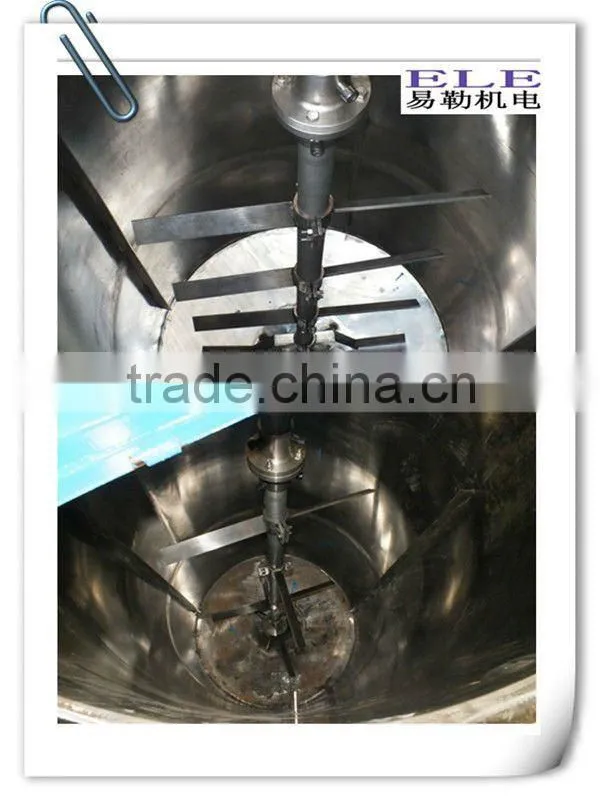

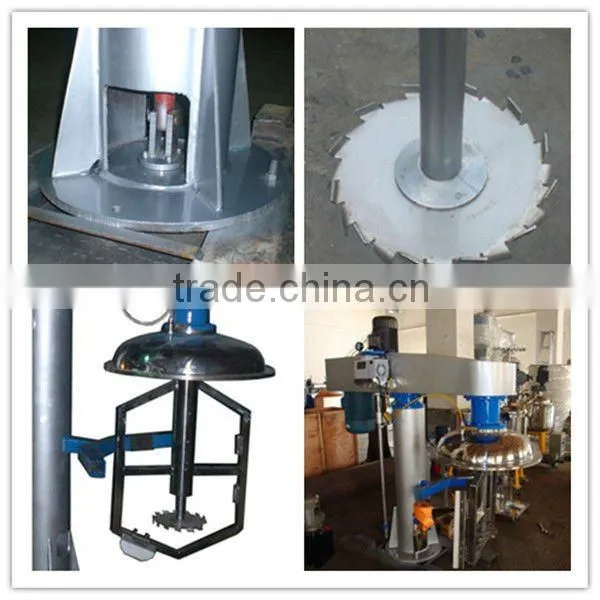

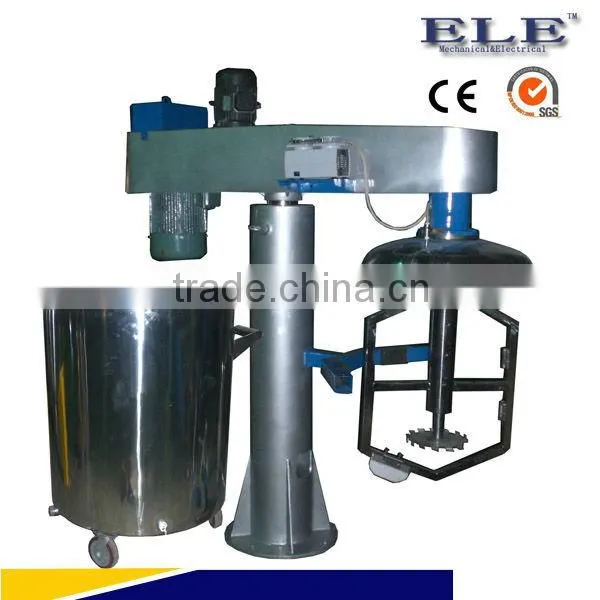

Coaxial base is the core of this machine, it designed the high speed axis and low speed axis is concentric, consist of outer hollow shaft and inner solid shaft, comples structure and highly machining accurate.
Features
- It applies to disperse and mix materials with different viscosity
- The symmetrical blade rotates slowly along the inner surface of the tank and the main axis rotates quickly at the same time, this machine suitable for high-viscosity materials with thixotropic.
- It can effectively control two speed of mixing to meet the demand of different kind of product.
- According to different production engineering, the equipment can configure vacuum, cooling and heating system; also can change the configuration according to your real condition.

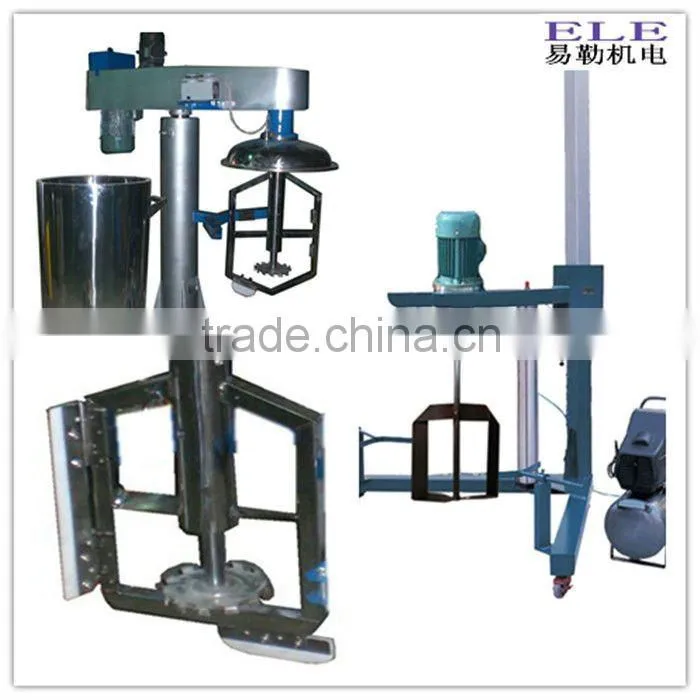

- The mixer type can be made according to customers' requirements. Frame Mixer, Dispersing Mixer, Paddle Mixer and so on.
- Hydraulic type or pneumatic type optaional
Techinical Parameters
Model |
Tank Volume(L) |
Main Power(KW) |
High Speed(rpm) |
Low Speed(rpm) |
Stroke (mm) |
Weight (kg) |
EBF/IV-15 |
15 |
4 |
1500 |
61 |
300 |
255 |
EBF/IV-50 |
50 |
7.5 |
1500 |
61 |
450 |
320 |
EBF/IV-100 |
100 |
15 |
1500 |
61 |
550 |
480 |
EBF/IV-250 |
250 |
22 |
1500 |
61 |
750 |
630 |
EBF/IV-500 |
500 |
30 |
1500 |
61 |
850 |
850 |
EBF/IV-1000 |
1000 |
45 |
960 |
61 |
1200 |
1300 |
EBF/IV-2000 |
2000 |
75 |
960 |
61 |
1450 |
2100 |
Remarks
According to different production engineering, the equipment can configure vacuum,
cooling and heating system; also can change the configuration according to your real condition.
