Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Cosmetic Inline High Shear Bitumen Emulsion Machine

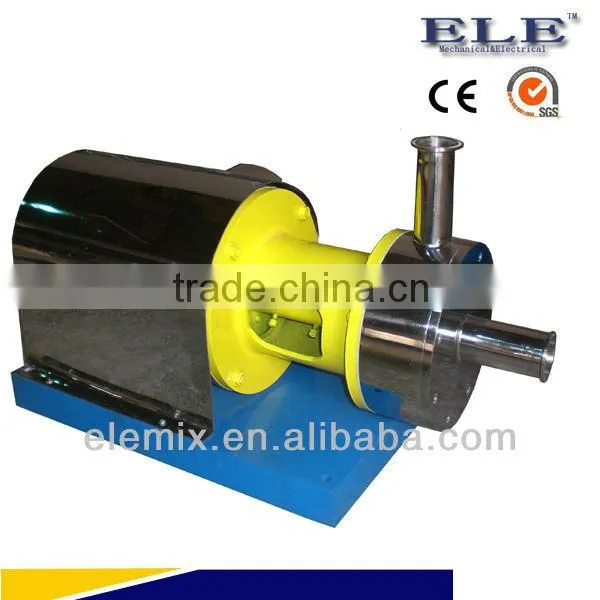

Cosmetic Inline High Shear Bitumen Emulsion Machine

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Mixer Type:

Homogenizer

Application:

Other, Liquid with Suspended Solids, cosmetic,beverage,fuel,food...etc.

Additional Capabilities:

Other, Mixing

Contact Supplier Request Quote Chat Now

Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Mixer Type Homogenizer

Application Other, Liquid with Suspended Solids, cosmetic,beverage,fuel,food...etc.

Additional Capabilities Other, Mixing

Place of Origin Shanghai, China

Brand Name ELE

Model Number ELR1/2

Warranty 12 Months

Specifications

1.inline high shear emulsifier
2.materail:ss304/ss316L stainless steel
3.speed:0-3000rpm
4.precision rotor stator
5. CE

ELR/1/2 Inline High Shear Emulsifier, High Shear Homogenizer, Mulser, Batch Inline High Shear Emulsification Machine

Introduction

This model with key part of stator and rotor, which is linear cutting, It can disperse, mix and emulsify various kind of liquid with different viscosity by high shearing power. Widely used in production of food, beverage, fragrance, cosmetic, shampoo, asphalt/bitumen emulsion, shampoo..

Features

three sets of precision engieered stator and rotor inside of the chamber
double end mechanical seal, can design water protector according to requirement
perfect emulsifying, reach micro-emulsion, suitable for high requirement emulsion
adopt elastic connection, low noise, prolong the service life
material: all parts contract with material is ss304 or ss316L stainless steel
head/lift: 8m

Technical Parameters

Power supply: 380v, 50hz, 3ph (voltage can be customized)
Rotation speed: 0-3000rpm/0-1500rpm
structure: 6 layers of stator and rotor
flow:0.5-70m3
Surface treatment: electro polishing, inner: Ra0.8-1.2um, outerRa3.2um, other part is coated resisteance to chemical corrosion paint

Model	Power(kw)	Rotation(rpm)	Flow (m3/h)	Entrance	Exit
ELR401/1/2	1.1	2890	1	DN40	DN32
ELR405/1/2	4	2890	4	DN40	DN32
ELR410/1/2	7.5	2890	8	DN50	DN40
ELR415/1/2	11	2890	12	DN65	DN50
ELR420/1/2	15	2890	18	DN65	DN50
ELR425/1/2	18.5	2890	20	DN65	DN50
ELR430/1/2	22	2890	22	DN65	DN50
ELR450/1/2	37	1440	30	DN100	DN80
ELR475/1/2	55	1440	40	DN125	DN100
ELR490/1/2	75	1440	55	DN125	DN100
ELR510/1/2	90	1440	65	DN125	DN100
ELR530/1/2	110	1440	80	DN150	DN125
