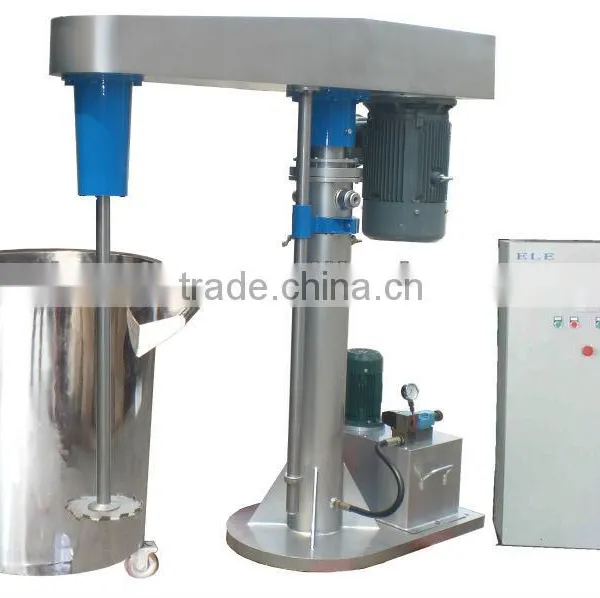

ECEGSCACOL High Speed Dissolver Pesticide Manufacturer

US$ 1,500 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Mixer Type:

Other, High Speed Dissolver

Product Type:

Fertilizer

Shanghai ELE Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Guangzhou or others in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Mixer Type Other, High Speed Dissolver

Product Type Fertilizer

Application Liquid

Additional Capabilities Other, Mixing

Place of Origin Shanghai, China

Brand Name ELE

Model Number EBF

Voltage customized

Power(W) customized

Certification CE,ISO9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Dispersion Machine, Water Based or Solvent Based Varnish Hydraulic Dispersion Machine, High Speed Dissolver, High Speed

Dissolver Manufacturer

Description

High viscosity agitator is suitable for liquid production, it is apply to all kind of liquid to pre-mix, disperse, color matching, etc.

Features

hydraulic lifting, the frame can turn around flexible
can match with cover, incase of material splashing or flying and volatilization of solvent based product during working.
less air absorption during working
it can blend and dissolve product quickly, more efficiency
with inverter, various speed control, low noise and long-time continuous production
stable performance, high efficiency
stainless steel mixing tank with clamp or belt is optional
motor can be explosion-proof, and the dispersing tank can be vacuum or seal
it can be hydraulic lift or pneumatic lift
Type: floor type and platform type
one machine can serve several tank

Technical Parameters

Model		EBF Dispersion Machine
Voltage/Frequency		380v, 3PH,50Hz, ( can be customized)
Frequency Control		with inverter( Kongkong-TTK), can adjust speed steplessly
Motor		Siemens or ABB
Stirrer		dispersing disc,once forming,zig-zag type and it is 45°angle (100-500mm)
Processing Capacity		50-500L ( water as medium)
Lifting Method		hydraulic lift

Material		the part contact with the materials is SS304,316L ( can choose according to your PH)
Application		Paint,Fuel,Ink,Papermaking,medicine,chemical industry, etc. to mix and blend more than two kind of liquid and powder solids.
Features		1.suitable for all kinds of liquid to premix,disperse and color matching.
		2.it can process different kind of viscosity and capacity
		3.variable speed control with inverter
