Specifications

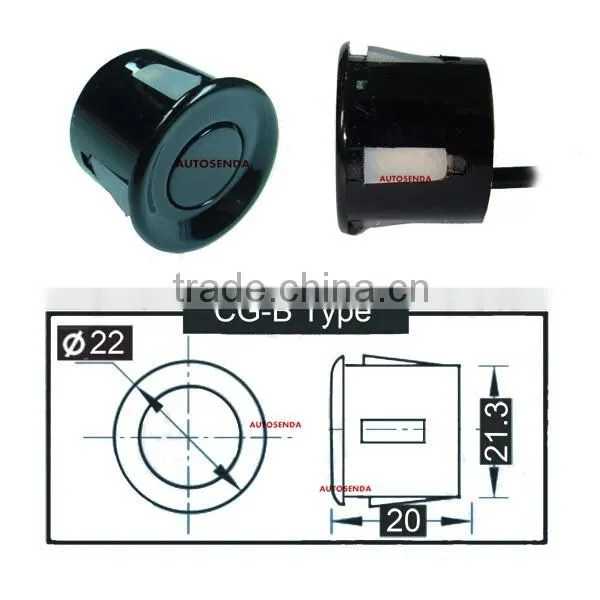

parking sensor bosch22mm sensors
Digital display
3 years warranty
fast delivery time

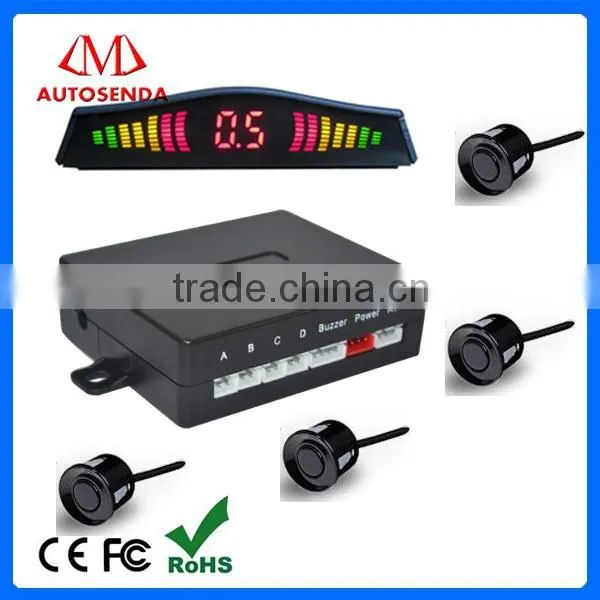

Newest design and good selling parking sensor bosch
Parking sensor system Feature:

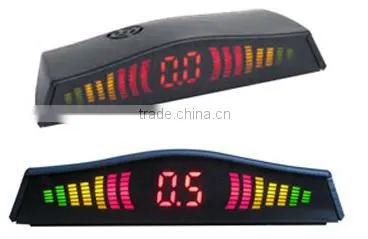

1. Three-color digital LED display with buzzer built-in
2. "BiBi" audible warning buzzer in 3 steps

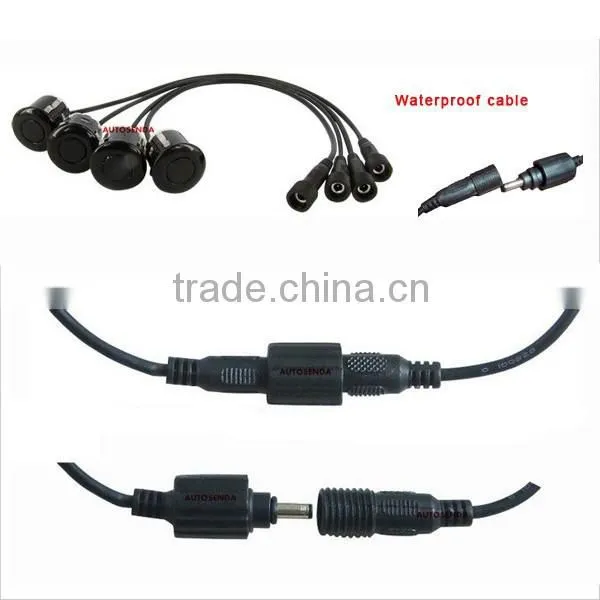

3. Detachable sensor with waterproof socket connector (optional)
4. Digital meter distance mode, feet display available
5. Four-directional indicator of left and right
6. 4 rear sensors for full coverage, 2 ~ 8 sensors available for front & rear detecting
7. Heavy rain-proof & all weather design
8. High quality and easy to install
9. All spare parts are compatible
10. Different sensors & colors optional (stick-on & insert-in)
Parking sensor system Technical Specification:
| Items: | Specs: |
| Rated voltage | DC12V |
| Operating voltage | 10 ~ 28V DC |
| Rated current | 10mA ~ 150mA |
| Detection distance | 0.3 ~ 2.5m for rear, 0.3 ~ 1.2m for front |
| Ultrasonic frequency | 40KHz |
| Working temperature | -30C ~ +80C degree |
| Warning dB | 80dB |
| Display size | 74.5 x 30 x 17.8mm |
| Others | Full-range technical support |
Alarm Mode:
| Stage | Distance | Awareness | Alarm Sound | Digital display | Bars display |
| 1 | >2.5M | Safety Area | No sound | - | No |
| 2 | 1.6-2.5M | Safety Area | No sound | 1.6-2.5M | Green |
| 3 | 1.0-1.5M | Safe Area | Bi...Bi...Bi... | 1.0-1.5M | Green+Yellow |
| 4 | 0.5-0.9M | Alarm Area | Bi.BI.Bi. | 0.5-0.9M | Green+Yellow |
| 5 | <0.4M | Danger Area | Bi...... | 0.4-0.3,0.0 | Green+Yellow+Red |

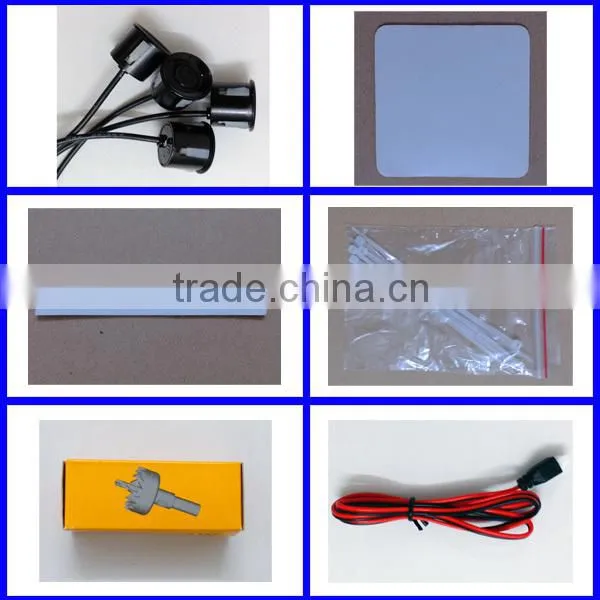

Products Accessories:

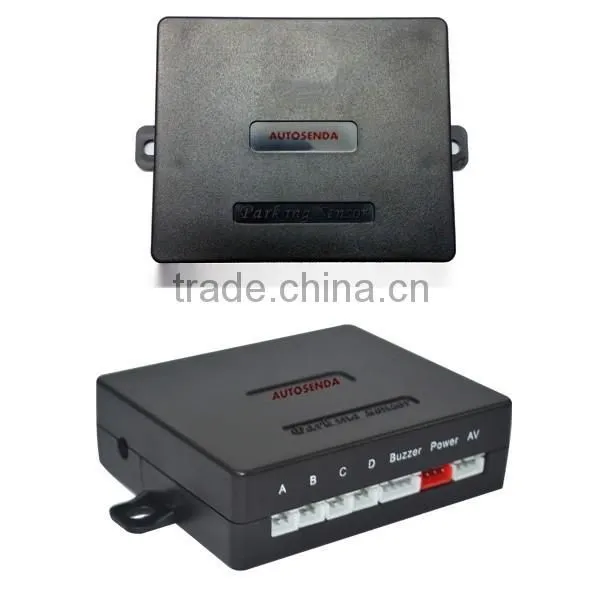

1). 1x Main Control Unit Box
2). 1x LED display
3). 4x Sensor
4). 1x Hole Saw
5). 1x Power Cable
6). 2x Double Side Sticker
7). 1x User Manual
8). 1x Box
Package details:
1).Neutral Color Gift Packing Box;
2).20pcs/ctns;
3).N.W:11KGS;
4).G.W:12KGS
Shipping & Delivery:
Different shipping way are available.Also can according to the requirements of the customers.
1). Small package sending by Courier (DHL,Fedex,TNT,Aramex,EMS,UPS...)
2). Goods over 50KGS suggested sending by Air Cargo
3). Mass order shipping by sea LCL or FCL

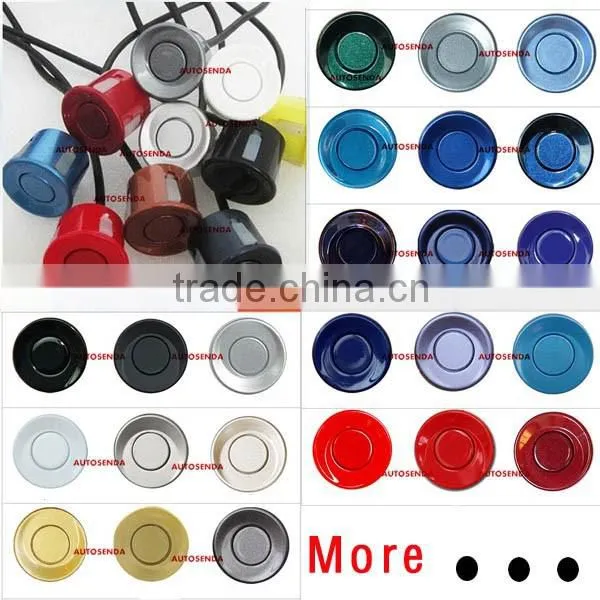

Sensor colors available:

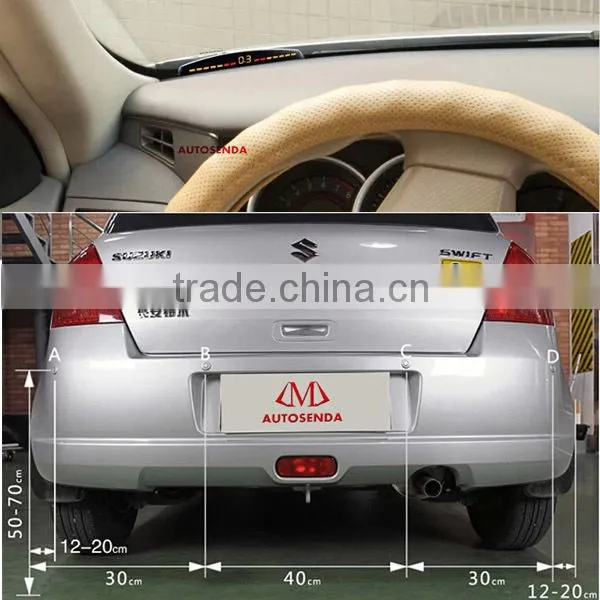

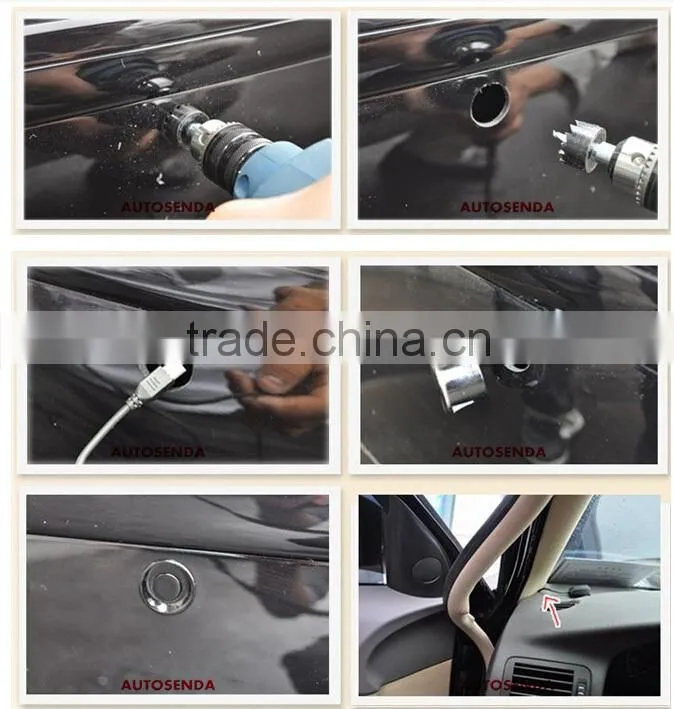

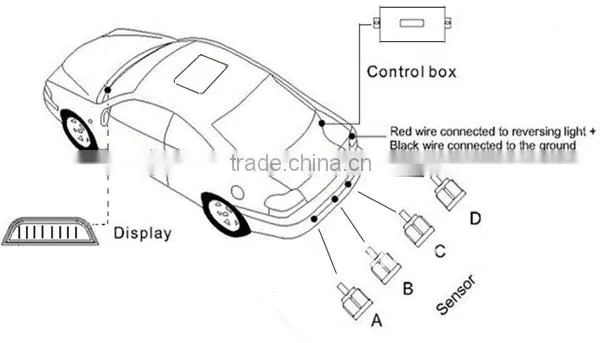

How to install this products?
Strong R&D Team:
1).Our parent company is the 1st batch of High-Tech enterprises approved by state in Shenzhen.
2).From 2006, R&D team from group company started to research PCB design and reverse for some big projects .
3).Automatic Production Lines of Car Parking sensor,PCBA production is equipped with advanced full automatic machines, testing machines and assemble machines.
4).Business Type:
Accept OEM Order
Accept ODM Order
Accept Customer Logo/Sticker Order
Others according to agreement
Our Company is a high-tech manufacturing company specialize in producing car DVR,Car reversing camera,Car parking sensor,Car rearview monitor in Shenzhen China.We have 8 years experience in OEM & ODM on car electronic products, until now we have already established long-term business relationship with many customers all over the world including Europe, India, South&North America, Australia &Middle East...
Please contact me, skype: jimylan2006
