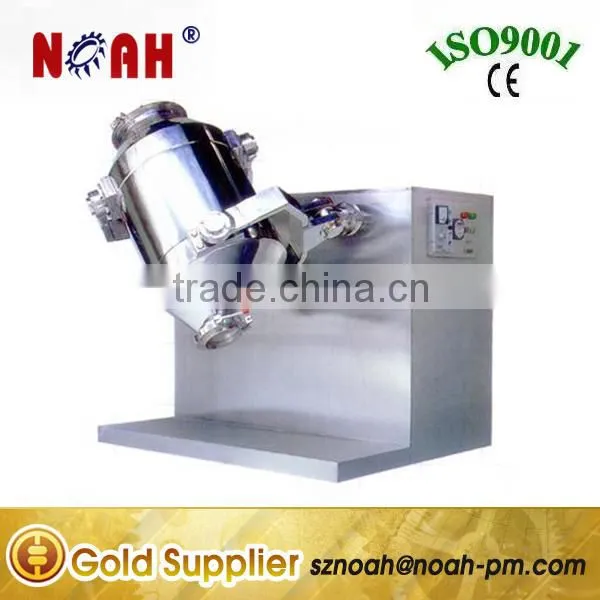

HD-100 Automatic Lab Powder Mixer Machine
Applications:
Our HD-100 Automatic Lab Powder Mixer Machine is Three-dimensional Mixer ,it is a novel materials mixing machine widely applicable to such industries as pharmaceutical, chemical, foodstuff and lightindustry as well as R&D institutes. The machine can perform a very uniform mixing of power or granular materials with a good mobilityWorking principles:When the machine is in operation, because of the running actions of the mixing tank in multi direction, the now and digression of the various kinds of materials are sped up in the process of mixing. At the same time, the phenomenon is avoided that the congregation and segregation of the material in gravity ratio cocooning due to the centrifugal force in the normal mixer and extremely good effect can be obtained
Structure:
Our HD-100 Automatic Lab Powder Mixer Machine consists of the base, driving system, electric control system, multi-directional, movement mechanism and mixing tank.The mixing tank to be in contact with the materials is made of quality stainless steel, with both inside and outside of the tank mirror polished.
Features:
1. Because the mixing tank performs a multi directional movement, there are many points of mixing with a good effect of mixing. The uniformity of the mixing is better than that of the normal mixer
2. The shape of the mixing tank is reasonably designed with no death corner and both the inside and outside polished. The discharge of materials is free with no accumulation. It is easy to clean
3. The materials are mixed in an enclosed state.
With no contamination to the working environment and materials
Main technical specifications:
| Type | HD100 |
| Volume of tank | 100L |
| Max. load capacity | 75L |
| Max. load weight | 50Kg |
| Rotary speed of the main shaft | 0 -15(r/min) |
| Power of motor | 1.5kw |
| Overall size | 1200*1700*1500mm |
| Weight of machine | 500Kg |
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship HD-100 Automatic Lab Powder Mixer Machine by sea way.
Our Company is one famous group and apply itself to R&D,manufacture machinery for Pharmaceutical, Chemical, food and so etc fields.
Our Main Products are: Tablet press,Mixer,Crusher,Granulator,Dryer,Coater,Packing machine,Filling Machine,Miller and Pulverizer, Feeder,Oven, Deduster, Dust Collector, vibration sieves...
We also supply punch die sets and spare parts in standard or not.
In order to help client choose suitable machine model and help us service for you better, please kindly provide below information. Thanks in advance.
1) What kind of products will be mixed: our mixing machine can mix dry powder or granules, or paste material or mixing powder which needs to add liquid.
2) The mixing material is dry or wet?
3) Required production capacity.
