Specifications
CT cold trap capture harmful gas1.bath materials ANSI 304
2.dehumidification volume 1-4kg
3.digital display
4.ISO9001:2008

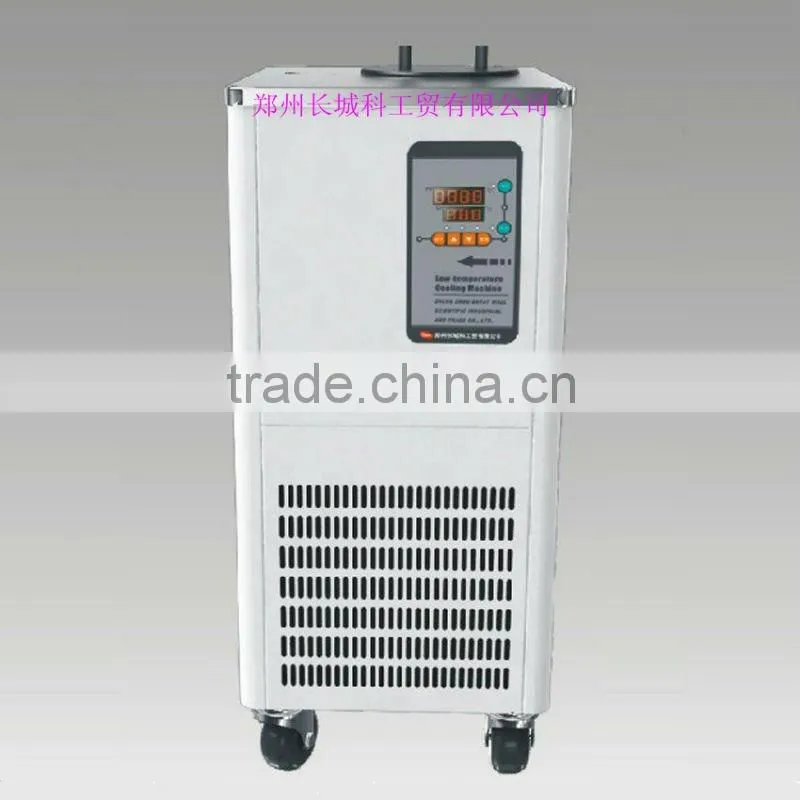

CT cold trap capture harmful gas
1. Description of CT cold trap:

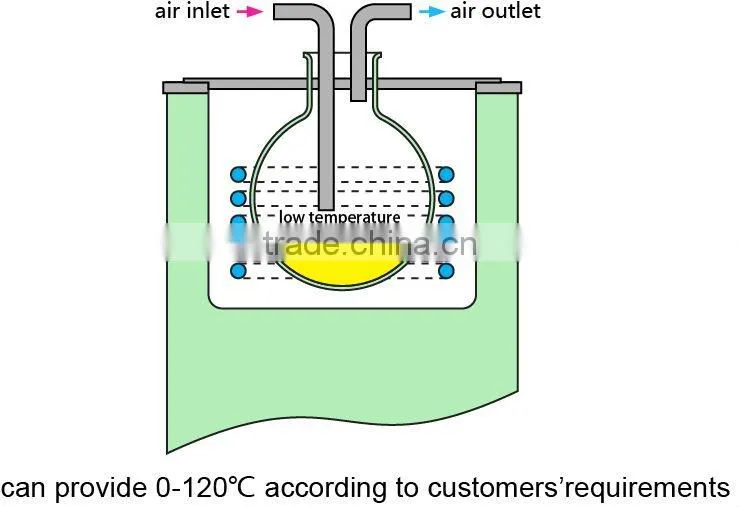

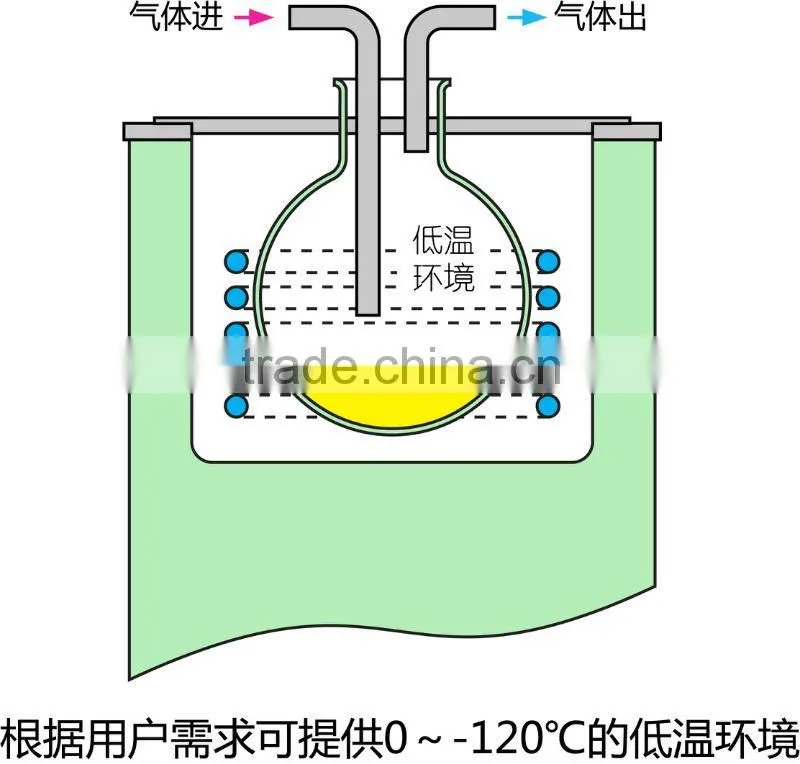

Capture water vapor and harmful gases emitted from vacuum drying oven or decompression concentration plant. Improve the service efficiency of the vacuum system, substantially , reduce the amount of steam inhalation of vacuum pump and extend the service life of the vacuum pump.
2. Characteristics of CT cold trap:
1. The showing of cold trap temperature is useful for controlling the opening time of the vacuum pump and preventing piping of water being pumped into the pump.
2. The showing of cold trap temperature is useful for controlling the opening time of the vacuum pump and preventing piping of water being pumped into the pump.
3. It can be used as pre-freeze tank and low-temperature trough.
4. Equipped with drain valve for easy drainage.

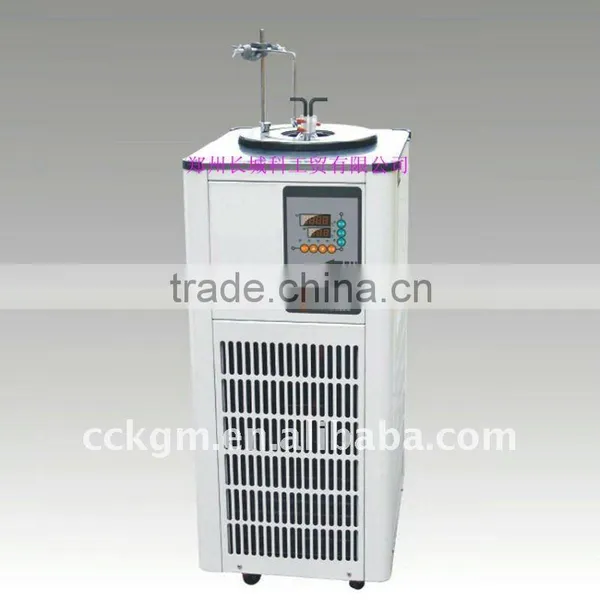

3. Precooling Rotary instrument:
Slewing arrangement of flask for pre-cooling. When rotating, the solution is condensed into filmily on the wall, which can shorten the drying time.
♦Rotary speed: 30~180 rpm
♦Available equipment models: all low-temperature cooling liquid circulating pumps
4. Technical data:
Model |
CT-2000H |
CT-2000L |
CT-5000H |
CT-5000L |
Cold trap mode |
Cooling directly dependent on barrel |
Cavity cooling (glass condenser: matching,Direct freezing trap) |
||
Dehumidification volume |
Max.1kg(Water) |
Max.4kg(Water) |
||
Min. Temperature |
-40°C |
-80°C |
-40°C |
-80°C |
Temperature digital |
Digital display |
|||
Bath materials |
Stainless Steel ANSI 304 |
|||
Interior size(mm) |
200×200 |
250×250 |
||
Ambient temperature (°C) |
5~25 |
|||
Power Supply(V/Hz) |
220/50 |
|||
