Specifications
DLSB-G1010 refrigerated circulator for AASoling capacity600-1860W
2.bath volume10L
ure1.2MPa
2013 Latest DLSB-G1010 1.2MPa Refrigerated Circulator for AAS
Use of DLSB-G1010:
Providing cooling water for complex and narrow systems. Suitable for cooling largescale precious instruments like electron probe x-ray microscopical analyzer, electron microscope, etc.
Features of DLSB-G1010:
1. Compressor adopts products made in Japan.
2. Imported vane pump can guarantee flow and stable pressure.
3. Adjust pressure according to clients’ requirements.
4. Equipped with pressure gauge, thus it’s convenient to observe pressure directly.
Technical Data of DLSB-G1010:
Model |
DLSB-G1010 |
|
Temperature range(°C) |
-10~Room temp |
|
Cooling capacity(W) |
600~1860 |
|
Temperature stability(°C) |
±2 |
|
Function of circulating pump |
Power (W) |
250 |
Pressure(MPa) |
1.2 |
|
Flow(L/min) |
≥7 |
|
Bath volume(L) |
10 |
|
Ambient temperature(°C) |
5~25 |
|
Power supply(V/Hz) |
220/50 |
|
Overall Power(W) |
1000 |
|
Dimensions(mm) |
490L×360W×800H |
|

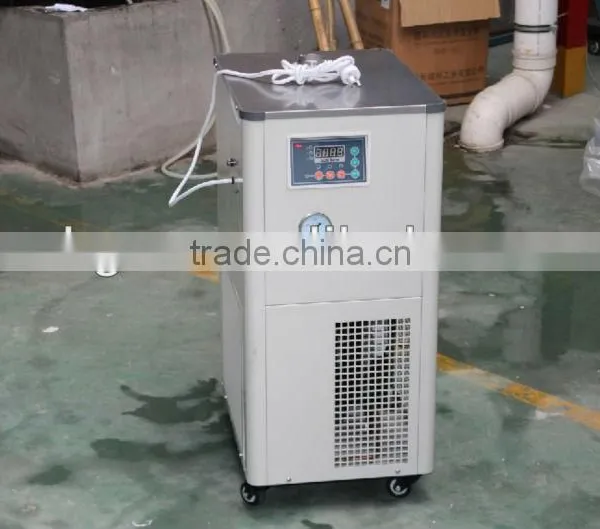

Pictures of DLSB-G1010:
ISO9001:2008 Certificate:
Our exhibitions:
Welcome to Our Factory:
