Great Wall 30L/min Flow Hermetic Water Cooling Circulating Oil Bath Heater
Introduction:
Hermetic water cooling high temperature circulator is liquid circulating equipment which adopts electricity to heat, and provides high temperature circulating liquid. It’s widely applied to heat reactors in pharmacy, chemical Industry, petrochemical and other industries.
Characteristics:
- Overtemperature alarm protection ensures safety of the unit.
- Circulating pump can output heat transfer liquid inside the equipment to heat other equipments outside.
- Electric heaters supplied by professional manufacturers ensures reliability and service life
- The unit has vent valve which is convenient to add the liquid for the system and is prohibited opening during the work time.
- Circulating system adopts Stainless Steel which can prevent corrosion, rust and high-temperature liquid pollution.
- PID control, high temperature-controlling accuracy, easy operation
- Coolant circulating system adopts hermetic system, so that service life of heat transfer liquid is much longer.
- The unit is easy to use, and it can work continuously
Parameters
Model |
SY-20-250 |
SY-50-250 |
SY-100-250 |
|
Highest temperature (°C) |
250 |
|||
Temperature range (°C) |
Room temperature+5 ~ 250 |
|||
|
Ambient temperature (°C)
|
5 ~ 40
|
|||
Function of circulating pump |
Power |
250 |
250 |
750 |
Max flow(L/min) |
30 |
30 |
75 |
|
Max pressure(bar) |
2.5 |
2.5 |
1.5 |
|
Circular interface size |
3/4” |
3/4” |
3/4” |
|
Liquid-adding capacity (L) |
9 |
13 |
17 |
|
Power of heater (KW) |
3 |
6 |
12 |
|
Ambient humidity(%) |
60 |
60 |
60 |
|
Power Supply(V/Hz) |
220/50 |
380/50 |
380/50 |
|
Dimensions (mm) |
690L×430W×1090H |
690L×430W×1230H |
920L×640W×1580H |
|
Capacity of matched jacketed reactor |
5L ~ 20L |
30L ~ 50L |
60L ~ 100L |
|
Parameters Compared with Air Cooling Circulating Oil Bath Circulator
* when you use water cooling circulating oil bath, you have a cooling tower in advance.
* Water cooling circulating oil bath uses water from cooling tower and can't be affected by environment, so it is more stable to cooling equipments and better performance.
* Water cooling circulating oil bath can keep temperature constant, but air cooling circulating oil bath can't.

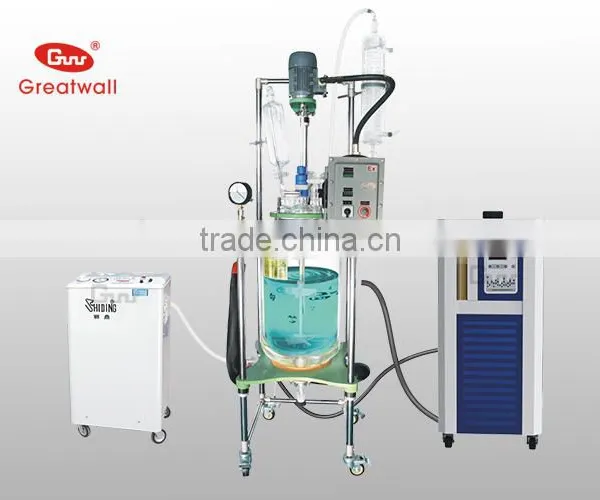

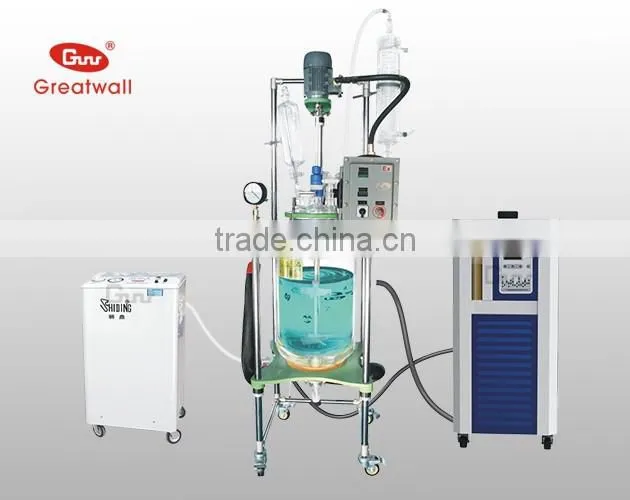

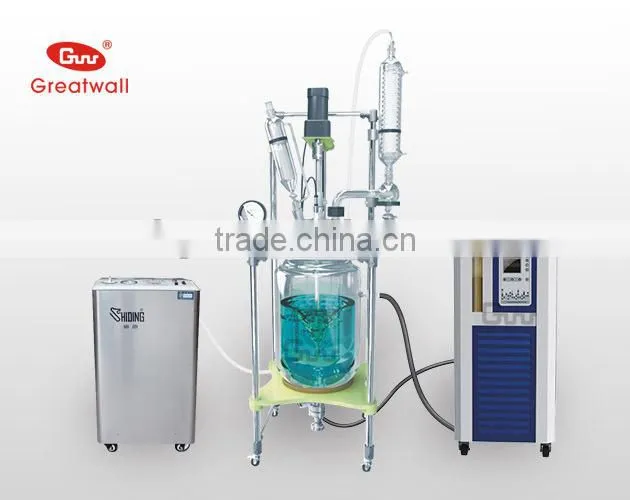

Recommended Total System
* Spray Paint Teflon Circulating Water Vacuum Pump SHB-B95T
* Jacketed Glass Reactor GR Series
* 250 Celsius Degree Circulating Oil Bath High Temperature Circulator SY Series
* Stainless Steel Circulating Water Vacuum Pump SHB-B95A
* Explosion-proof Jacketed Glass Reactor GREX Series
* 250 Celsius Degree Circulating Oil Bath High Temperature Circulator SY Series

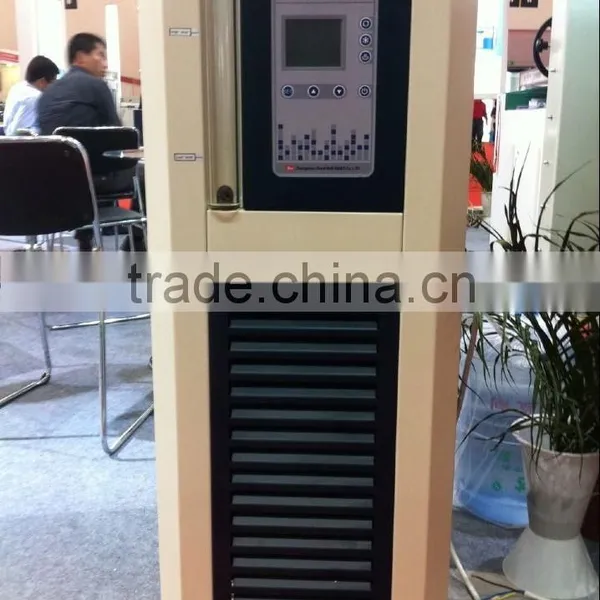

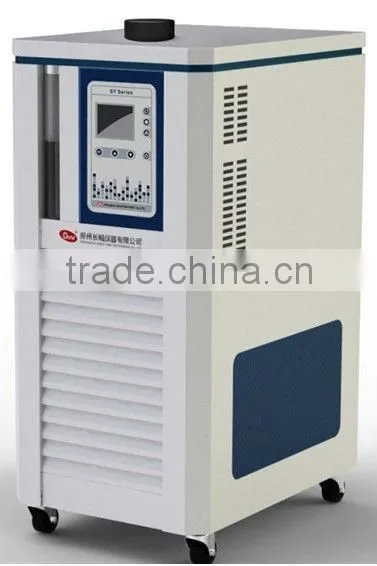

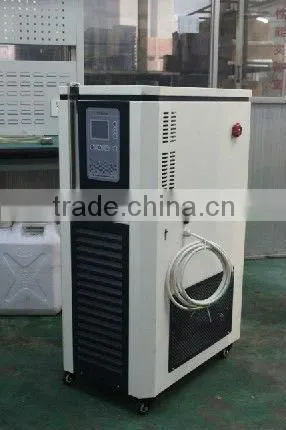

Lateral View:
ISO9001:2008 Certificate:
Standard Wooden Package:
