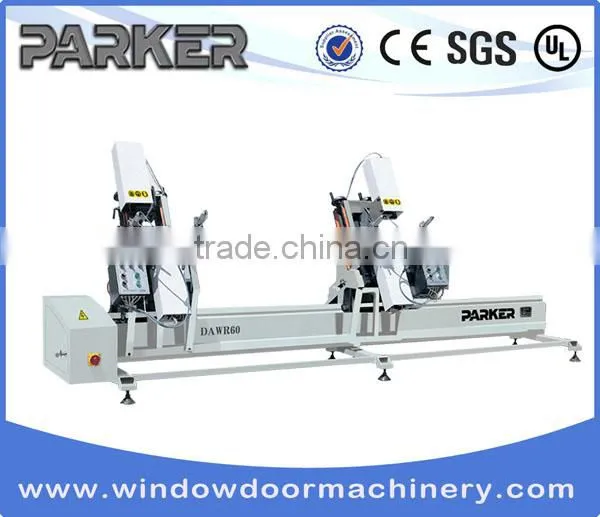

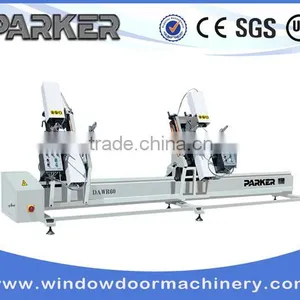

DAWR60 Double Heads Water Slot Routing Machine
Water Slot Milling Machine
DAWR60 double heads water slot routing machine is equipped with two same milling heads. This two axis water slot milling machine is mainly used for processing the water slots of PVC windows and doors. It is also suitable for milling various kinds of air pressure balancing grooves and well suited for large scale processing. Parker Machinery Co., Ltd is a leading manufacturer and supplier of water slot routing machines in China. Our double heads water slot milling machines are well known for steady working, easy operation, high efficiency and convenient maintenance.
1. One time clamping can finish processing of two water slots.
2. Installed with special feeding system, DAWR60 water slot routing machine features high milling quality and no special maintenance.
3. The milling length of this water slot milling machine is adjustable within 60 mm.
4. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service.
| Model | DAWR60 Double Heads Water Slot Routing Machine |
| Voltage | 220 V 50 Hz |
| Input Power | 2.28 kW |
| Working Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 9 L/min |
| Main Shaft Rotary Speed | 25000 r/min |
| Max. Milling Depth | 50 mm |
| Diameter of Milling Cutter | 5 mm 6 mm |
| Milling Length | 30 mm to 50 mm |
| Dimension | 4300 mm × 900 mm × 1600 mm |
| Weight of Water Slot Milling Machine | 1100 kg |
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
