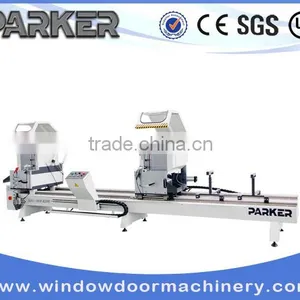

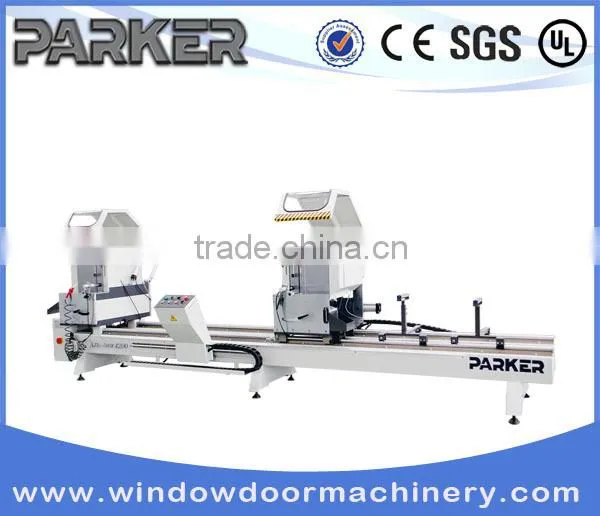

Aluminum Cutting Machine/aluminum Cutting Machine for 45 Degree
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
Parker
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Aluminum Door-window Automatic Feeding Double Head Crimping MachineNegotiableMOQ: 1 Set -
PVC UPVC Door-Window 4-head Welding Machine/upvc Window Machinery for SaleNegotiableMOQ: 1 Set
-
PVC/UPVC Door-Window 2-head Welding Machine/ Upvc Window Making MachineNegotiableMOQ: 1 Set
-
Aluminum Automatic Mortise and Tenon Milling Machine/tenon MachineNegotiableMOQ: 1 Set
-
Aluminum Hydraulic Corner Crimping Machine/Aluminum Corner Joint MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
China
Brand Name
Parker
Model Number
LJZ2-500 x 4200
Voltage
380V 50HZ
Rated Power
4.4 kW
Dimension(L*W*H)
5500mmX1750mmX1990mm
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.aluminum cutting machine for 45 degree/Aluminium Profile Cutting Machine2.precise spindle and high qualified blade
Aluminum Cutting Machine/ aluminium doors window manufacturing machine
Product Description
LJZ2-500×4200
- Aluminum cutting machine for 45 degree
- For not only aluminum profile cutting, but also corner connector cutting.
- 22.5°, 45°and 90°cutting is available.
- Imported carbide saw blade give accurate processing and high endurance
- Precise spindle enables the stable rotate of the saw blade, making the surface smooth
- Stable feed is guaranteed by the gas-liquid damping cylinder.
- The flat guide rails in the cutting head also guarantee the stable and steady feeding
- Auto-opening guard shield ensures operation safety
Voltage: |
380V 50HZ |
Power: |
4.4KW |
Air pressure: |
0.5-0.8MPa |
Air consumption: |
200L/min |
Blade specification: |
500×30×4.4 Z=120 (standard size) |
Cutting length: |
400mm-4200mm |
Cutting width: |
Max.135mm |
Cutting height: |
Max.300mm |
Cutting angle: |
45° 90° |
Angle error |
±4′ |
Repeat locating length error: |
±0.2mm |
Surface plainness: |
±0.1mm |
Surface roughness: |
Ra12.5m |
Overall dimension: |
5500mmX1750mmX1990mm |
