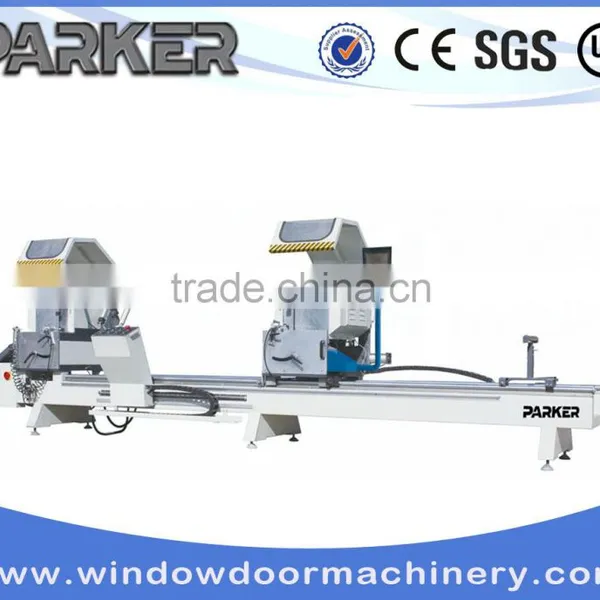

Digital Display Aluminium Profile Cutting Machine/aluminium Saw Cutting Machines

Name: Digital Display Aluminium Profile Cutting Machine/aluminium Saw Cutting Machines
Brand: Parker
SKU: 126028061

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

Parker

Jinan Parker Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name Parker

Model Number LJZ2S-500 x 4200

Voltage 380 V

Rated Power 4.4 kW

Dimension(L*W*H) 5500mmX1750mmX1990mm

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.aluminium profile cutting machine
2.digital display
3.high qualified blade for smooth cutting surface

Digital Display Aluminium Profile Cutting Machine/aluminium saw cutting machines

Product Description

Feature:

Aluminium profile cutting machine .
Digital display of cutting length, ensuring accurate cutting.
The imported special hard-metal saw features the high precision and efficiency
The hi-precision main shaft makes the saw stable and the surface smooth.
The gas-liquid damping cylinder realizes smooth feeding and steady moving.
The automatically lifting cover makes the operation safe and easy.
The movable head goes along the screw guide rail, thus ensures precise location.
Flat guide in saw feeding for stable and smooth cutting.

Parameter:

Voltage:	380V 50Hz
Power:	4.4 kW
Air pressure:	0.5-0.8MPa
Air consumption:	200L/min
Blade specification:	500304.4 Z=120 (standard size)
Cutter moving speed:	0-2m/min
Cutting length:	Max4000mm Min200mm
Cutting width:	Max.135mm
Cutting height:	Max.300mm
Cutting angle:	45° 90°
Angle error	±4′
Repeat locating length error:	±0.2mm
Surface plainness:	±0.1mm
Surface harshness:	Ra12.5m
Overall dimension:	5500mmX1750mmX1990mm
