Specifications
PVC Window Door Welding and Cleaning MachinePVC Door-Window Welding & Cleaning Production Line
CNC

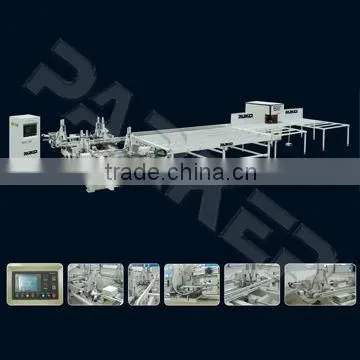

UPVC(Plastic) Window and Door Machinery Welding and Corner Cleaning Machine Processing Line
Features:
- Whole machine
Used for automatically realizing the welding and cleaning of frame or sash, composed of welding unit, transfer unit, manipulator and corner cleaning unit, etc. Imported computer control system, with high reliability. Production ability between main units matched each other;Automatically program and select processing programs;Apply to high grade and mass windows production.
- Welding unit
Horizontal structure arrangement for the stable running;Imported computer drive system ensured its high stability;Size error compensation is available and high accuracy;Special locating system and impaction device ensured its size precision;Strengthen the corner welding and achieve good corner cleaning effect;Support with proper design keeps the running stable. Auto profile discharging device.
- Cleaning unit
Eight groups of different cutters can achieve the cleaning of corner welding; High processing efficiency for adopting four-axis servo-drive system;Imported computer system and drive system ensured its high reliability;Cutters with unneeded change can process more than one hundred profiles;Error compensation between arc and beeline is possible and good cleaning appearance given.
- Transfer unit& manipulator
Transfer unit: used for automatically conveying the frame or sash after welding;Manipulator: used for transferring the frame or sash to the precise position.
Parameter:
|
380V 50HZ |
|
14KW |
|
0.5-0.8MPa |
|
200L/min |
|
3000 x 1800mm |
|
620 x 620mm |
|
20mm-120mm |
|
120mm |
|
30m/min |
|
12600mm x 6000mm x 1700mm |
|
5500KG |
